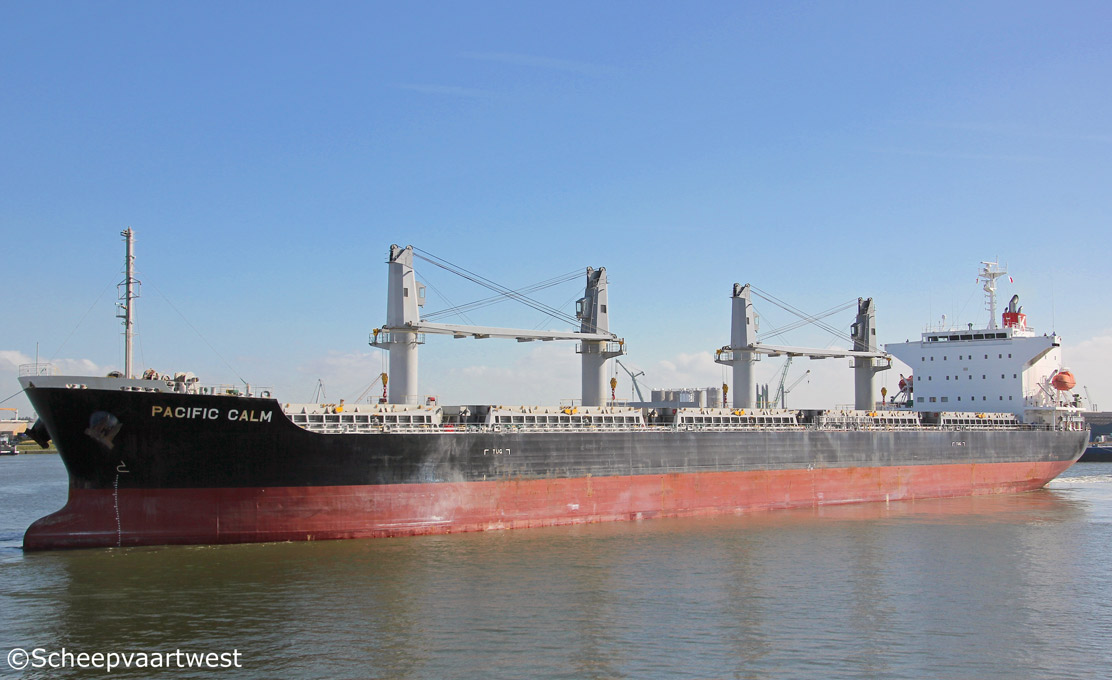

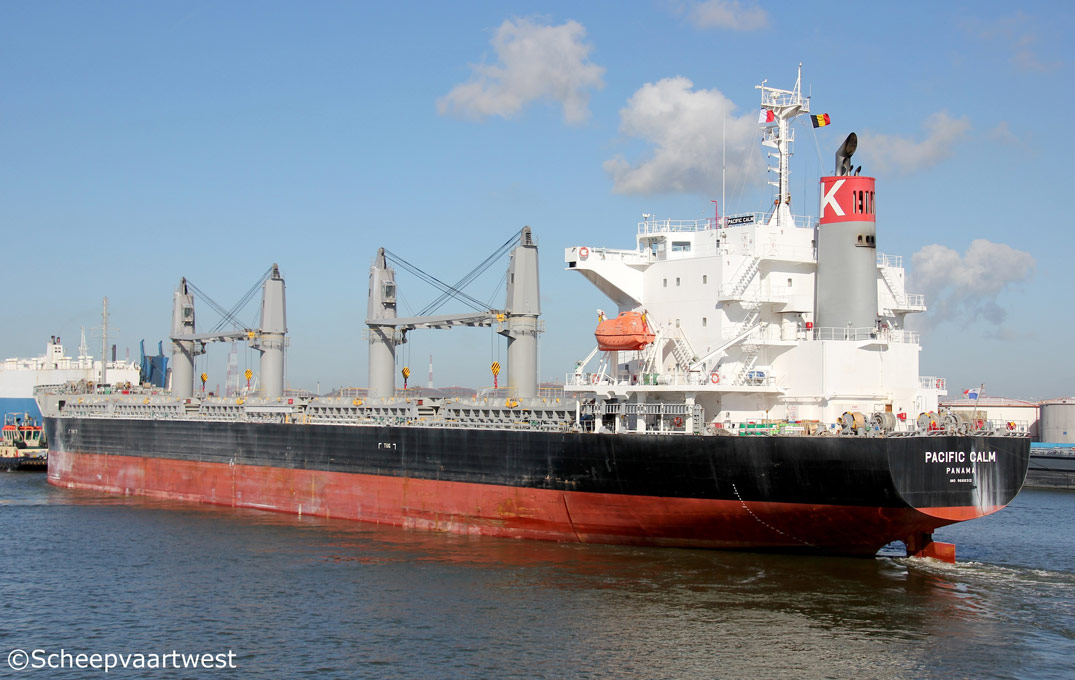

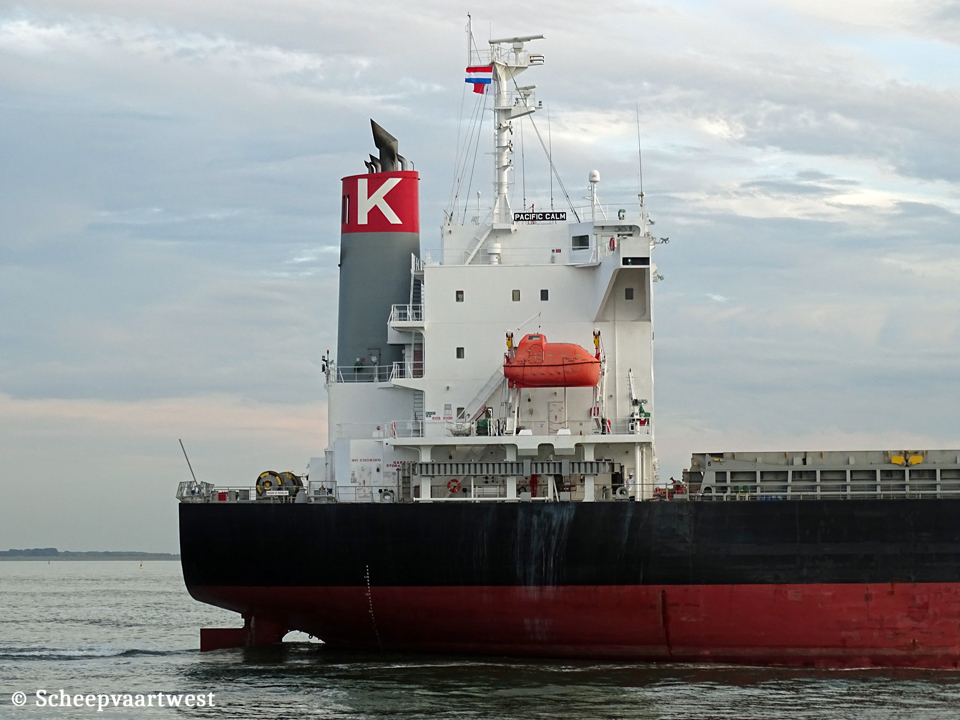

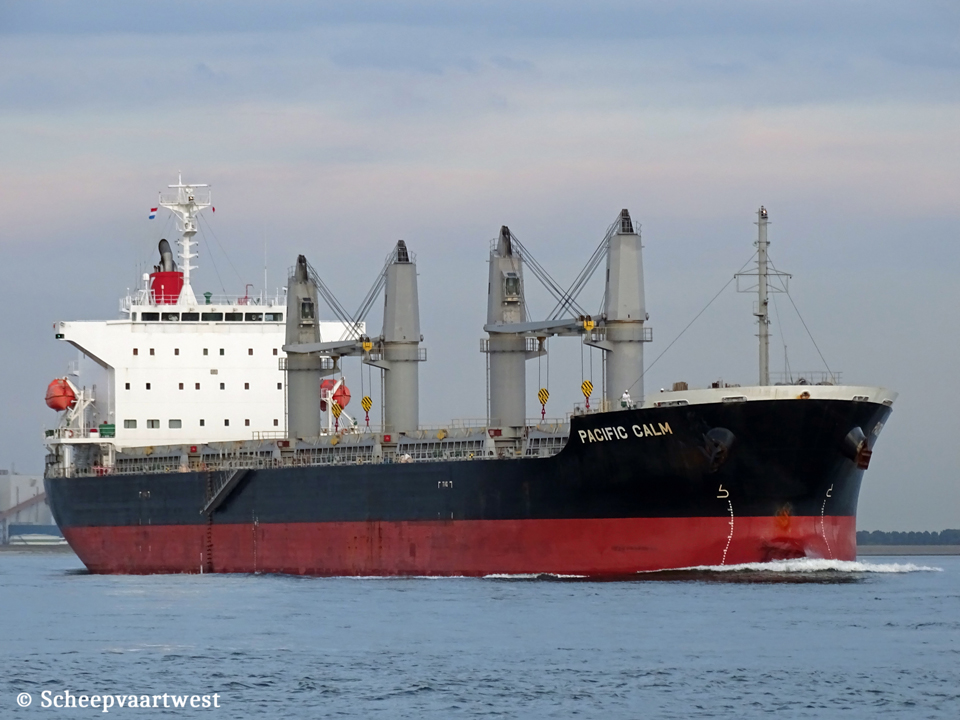

Pacific Calm - IMO 9668312

Westerschelde 10 September 2016

Name

PACIFIC CALM

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9668312

Call sign

3FOE6

Flag

Republic of Panama

Port of registry

Panama City

GT

23.269 t registered

DWT

Summer: 38.123 t

NT

12.134 t registered

Light ship

8.181 t

Length

179,97 m overall

Breadth

29,80 m moulded

Draught

Summer: 10,54 m

Moulded L x B x D

173,00 x 29,80 x 15,00 m

Registered L x B x D

173,52 x 29,80 x 15,00 m

Keel to mast end

44,46 m

Freeboard

Summer: 4.500 mm

Depth

15,00 m moulded

Speed

15,7 knots

Built

2013

Keel laid

21/09/2010

Launch date

23/08/2013

Date of completion

07/10/2013

Builder

Imabari Shipbuilding Co., Ltd.

Japan

Yard number

826

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

2x MAN-B&W/Makita 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 6.820 kW / 9.272 hp at 110,0 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 450 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 1,95 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generatorsets total 1.740 kVA

Number of holds

5

Cargo hold capacity

Bale: 45.369 m³

Grain: 47.125 m³

Nuber of hatches

5

Tank capacities

Fuel oil: 1.946 m³

Fresh water: 294 m³

Carg gear

4x Deck cranes - SWL 30,0 t each

Commercial manager

Barro Colorado Shipping Co., SA

Care of Keiyo Kisen KK

112, Hashihama 1-chome, Imabari-shi, Ehime-ken, 799-2118

Japan

ISM manager

New Century Overseas Management Inc.

6th Floor, Feliza Building, 108, VA Rufino Street, Legaspi Village, Makati City

1229 Manila

Philippines

Operator

K-Line

Registered owner

Barro Colorado Shipping Co., S.A.

Care of Keiyo Kisen KK

112, Hashihama 1-chome, Imabari-shi, Ehime-ken, 799-2118

Japan

Latest data adjustment

30 March 2024
