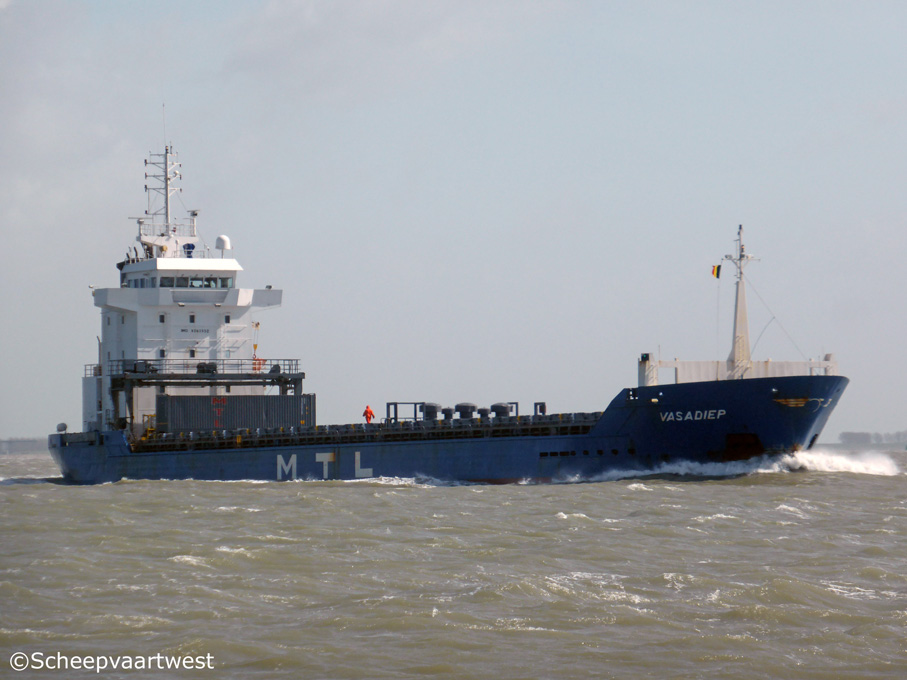

Westerschelde 01 April 2015 |
|
Name |
VASADIEP |
|
Previous names |
Launch as: Scan Runner |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargoes Single decker |
|
IMO-number |
9263552 |
|
Call sign |
PHLB |
|
Flag |
The Netherlands |
|
Port of registry |
Groningen |
|
Previous flags |
12/2002 - 06/2007 Gibraltar |
|
GT |
4.941 t |
|
DWT |
Summer: 7.875 t |
|
NT |
2.786 t |
|
Lightweight |
2.370 t |
|
Number of 20ft containers |
On hatch: 216 In hold: 174 Total: 390 |
|
Number of 40ft containers |
On hatch: 100 In hold: 84 Total: 184 |
|
Container capacity 14t |
250 |
|
Length |
118,55 m overall 111,85 m between perpendiculars |
|
Breadth |
15,20 m moulded |
|
Draught |
7,05 m moulded |
|
Depth |
8,45 m to main deck |
|
Speed |
14,7 knots |
|
Built |
2002 |
|
Launch date |
23/11/2002 |
|
Delivery date |
23/12/2002 |
|
Builder |
Bodewes Hoogezand The Netherlands |
|
Yard number |
609 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
1 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32C - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.221 bhp |
|
Propellers |
1 |
|
Generators |
2x Scania DI 12 45 M diesel generatorsets each 275 kW |
|
Emergency generator |
1x Diesel generatorset 57 kW |
|
Bow thruster |
300 kW |
|
Number of holds |
2 |
|
Cargo hold capacity |
Hold 1: abt.4.306 m³ /152.062 ft³ Hold 2: abt. 5.108 m³ /180.383 ft³ Total: abt. 9.594 m³ /332.445 ft³ |
|
Hold ventilation |
6 air changes per hour |
|
Number of hatches |
2 No. 1: 39,00 x 12,65 m No. 2: 42,75 x 12,65 m |
|
Hatch cover |
Pontoon type |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatchcover: 1,75 t/m² |
|
Tank capacities |
HFO: 410 m³ (98%) MGO: 216 m³ (98%) Freshwater: 50 m³ Water ballast: 3.376 m³ |
|
Crew complement |
12 |
|
Manager |
Feederlines B.V. Eenrumermaar 2 9735 AD Groningen The Netherlands |
|
Operator |
MTL - Maritime Transport + Logistik GmbH & Co. KG August-Hirsch-Straße 10 D-47119 Duisburg Germany |
|
Previous owners |
C.V. Scheepvaartonderneming Vasadiep Groningen The Netherlands |
|
Group |
Hartmann Group |
|
Renamed |
23/10/2017 Betanzos Spain, Santa Cruz de Tenerife - Call sign: EARH Owner & manager: Naviera de Galicia, S.A., La Coruña - Spain |
|
Latest data adjustment |
12 November 2016 |
