Westerschelde 03 November 2016 |
|
Name |

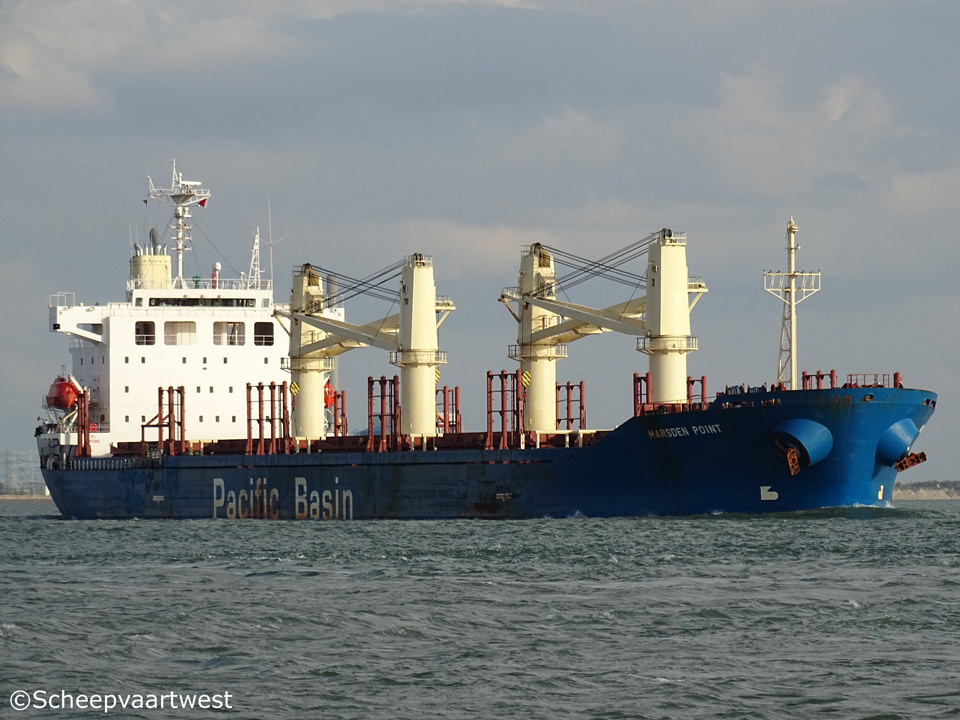

MARSDEN POINT |
|
Previous names |
2002 - 2014 Green Hope |
|
Type |
Bulk carrier - Lumber carrier - Handysize |
|
IMO-number |
9261750 |
|
Call sign |
VRNF3 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
Previous flags |
Republic of Panama, Panama City |
|
GT |
21.185 t registered |
|
DWT |
Summer:35.107 t |
|
NT |
11.735 t registered |
|
Length |
178,03 m overall |
|
Breadth |
28,00 m moulded |
|
Draught |
10,58 m |
|
Moulded L x B x D |
170,00 x 28,00 x 15,00 m |
|
Registered L x Bx D |
170,53 x 28,00 x 15,00 m |
|
Freeboard |
Summer: 4.475 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Max.: 16,2 knots |
|
Built |
2002 |
|
Keel laid |
12.03.2002 |
|
Launch date |
27.05.2002 |
|
Date of completion |
28.08.2002 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5132 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine 7.080 kW at 133 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 455 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,9 bar Evaporation: 1,92 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x generators- 4.590 kVA |
|
Cargo hold capacity |
Bale: 43.592 m³ Grain: 45.428 m³ |
|
Tank capacities |
Fuel oil: 1.595 m³ Fresh water: 324 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each |
|
Manager |
Pacific Basin Shipping Limited |
|
Registered owner |
Marsden Point Limited |
|
Latest data adjustment |
21 December 2016 |
