Westerschelde 16 April 2015 |
 |
 |
|
| Westerschelde 16/04/15 | Westerschelde 02/04/20 |
|
Name |

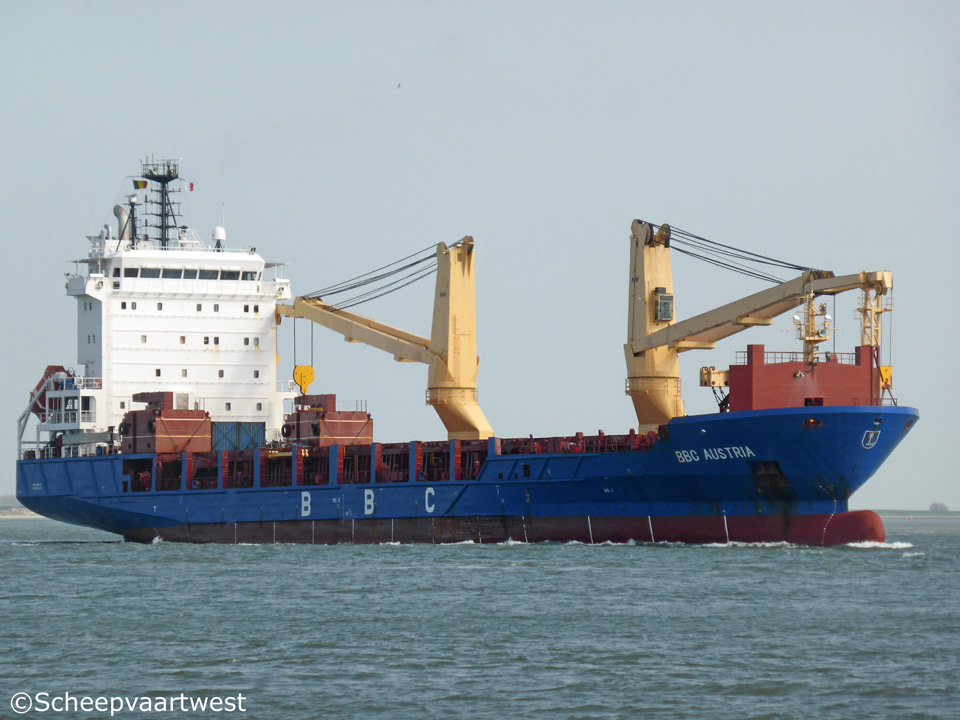

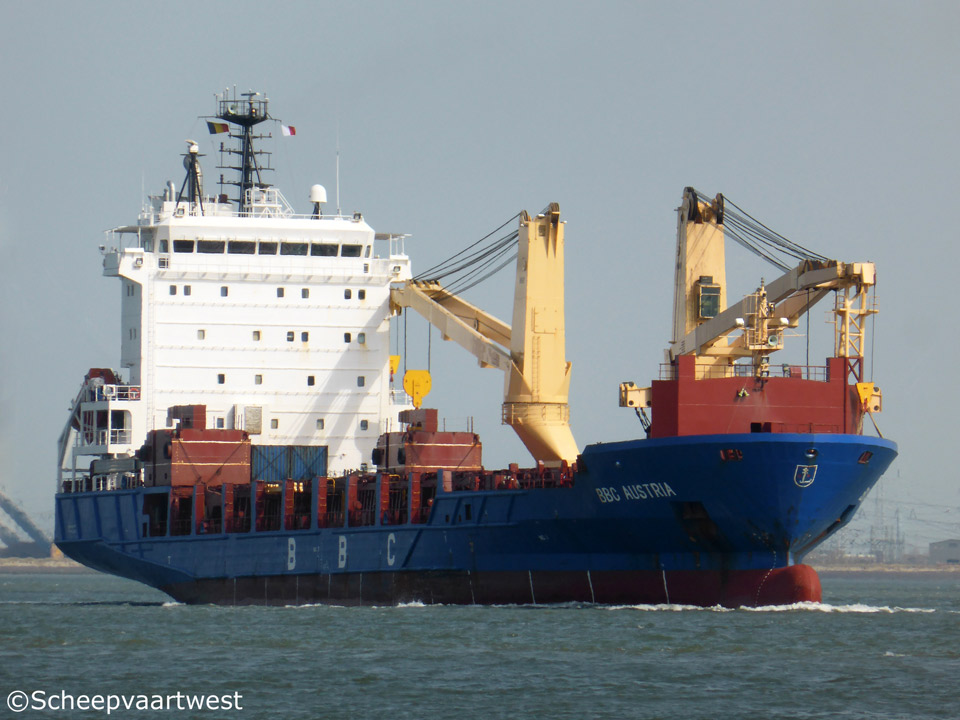

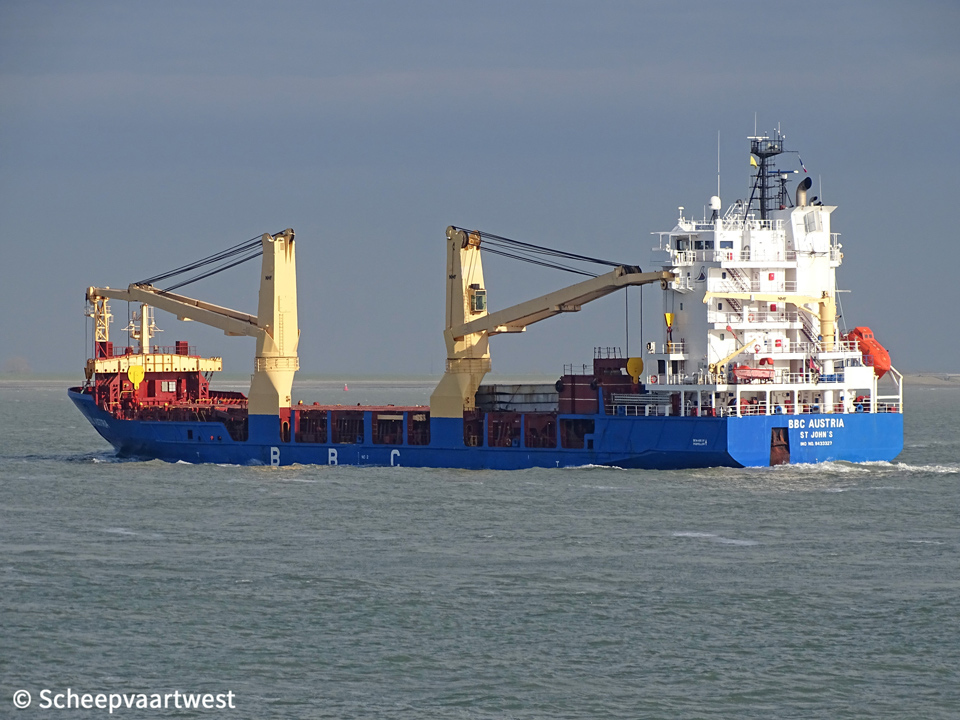

BBC AUSTRIA |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Grain and timber fitted - Heavy lifter |
|
IMO-number |
9433327 |
|
Call sign |
V2DQ3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
6.967 t |
|
DWT |
Summer: 7.741,4 t |
|
NT |
3.375 t |
|
Number of 20ft containers |
In hold: 238 On deck: 363 Total: 601 |
|
Number of 40ft containers |
In hold: 112 + 14 TEU On deck: 168 + 27 TEU Total: 280 + 41 TEU |
|
Container capacity 14t |
377 |
|
Reefer plugs |
60 |
|
Length |
119,77 m overall 113,50 m between perpendiculars |
|
Breadth |
20,53 m extreme 20,20 m moulded |
|
Draught |
7,59 m |
|
Height above keel |
38,14 m |
|
Freeboard |
2.222 mm |
|
Depth |
9,80 m |
|
Speed |
16,5 knots Economic: 13,0 knots |
|
Built |
2009 |
|
Keel laid |
29/02/2006 |
|
Launch date |
22/09/2008 |
|
Date of completion |
13/03/2009 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. Tianjin China |
|
Yard number |
SB338-2 |
|
Hull material |
Steel |
|
Movable bulkheads |
1x Movable - Tweendeck pontoons can be used as bulkhead |
|
Main engine |
1x MaK 7M43 C - 4 stroke 7 cylinder 430 x 610 mm combustion engine 6.300 kW / 8.560 hp at 500 rpm Builder: Caterpillar Motoren GmbH & Co., KG |
|
Propellers |
1x Controllable pitch propeller- aft at 155,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 75,0 m² 1x Thermal oil heater, exhaust heated - 10,0 bar Heating surface: 50,0 m² |
|
Shaft generator |
1x 600 kW |
|
Generators |
3x MAN D2840LE301 main diesel generatorsets each 488 kVA - 390 kW - 602 hp |
|
Emergency generator |
1x MAN D2866LXE20 diesel generatorset 245 kVA - 196 kW - 367 hp |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2 Hold 1: 06,20 x 09,95 m / 12,35 x 15,15 x 10,80 m On main deck level; hold is prepared with steps according to container size; boxshaped with tweendeck: Upper hold height abt. 5,57 m Lower hold height abt. 4,43 m Hold 2: 52,00 x 16,10 x 10,80 m Boxshaped with tweendeck: Upper hold height abt. 3,50 m / 5,05 m Lower hold height abt. 6,50 m / 4,95 m |
|
Tweendeck |
N°1: One complete, 6,20 x 4,99 m / 6,15 x 9,95 / 6,20 x 15,15 m N°2: One complete, 52,00 x 16,10 m |
|
Cargo hold capacity |
Grain / Bale: Hold 1: abt. 2.333 m³ / 2.319 m³ Hold 2: abt. 9.167 m³ / 9.132 m³ Total: abt. 11.500 m³ / 11.451 m³ |
|
Hold ventilation |
Up to 20 air-changes per hour |
|
Number of hatches |
2 Hatch 1: 06,20 x 10,32 m / 13,00 x 15,53 m Hatch 2: 53,30 x 17,20 m |
|
Hatch cover type |
No. 1: Pontoon type No. 2: Folding type, can be partly opened and disconnected |
|
Floor space |
Under deck: 1.986 m² / 21.377 ft² On deck: 1.083 m² / 11.657 ft² |
|
Max. permitted loads |
Tanktop: 16,0 t/m² Tweeddeck 1: 2,5 t/m² Tweeddeck 2: 3,0 t/m² On deck: 2,5 t/m² |
|
Tank capacities |
IFO abt. 775 m³ MGO: abt. 105 m³ Ballast abt. 3.997 m³ Freshwater abt. 140 m³ |
|
Cargo gear |
2x NMF deck cranes - SWL 250 t each, portside Combinable to 500 t |
|
Accommodation |
16 persons, 16 cabins |
|
Manager |
Briese Schiffahrts GmbH & Co. KG Hafenstraße 12 26789 Leer Germany |
|
Operator |
BBC Chartering GmbH Hafenstr. 10B 26789 Leer Germany |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "WESTERMOOR" |
|
Latest data adjustment |
26 August 2020 |
