Name |

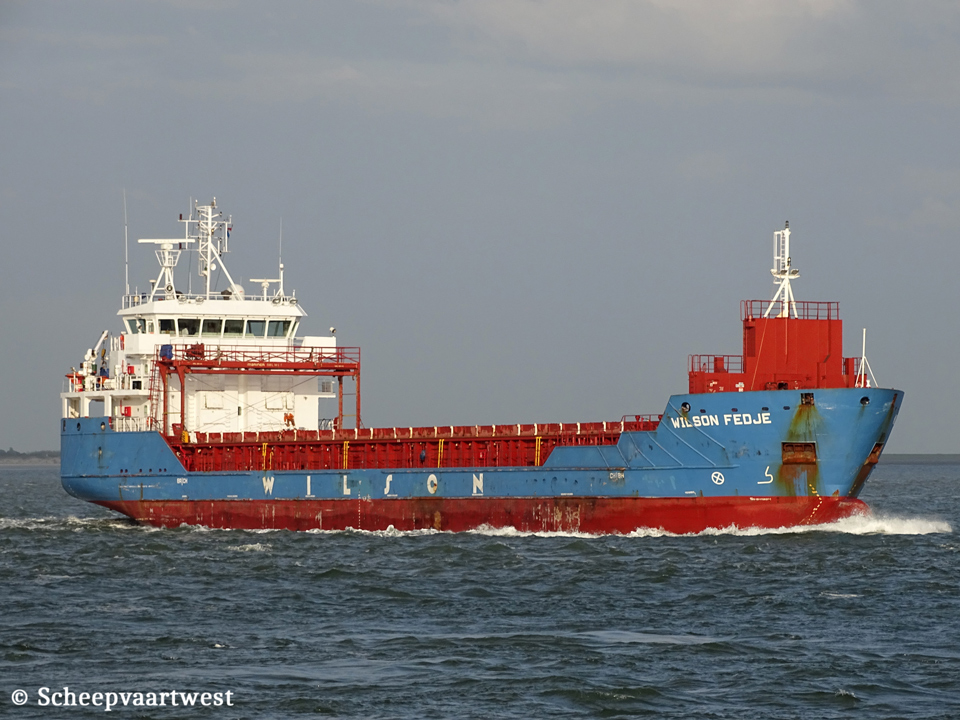

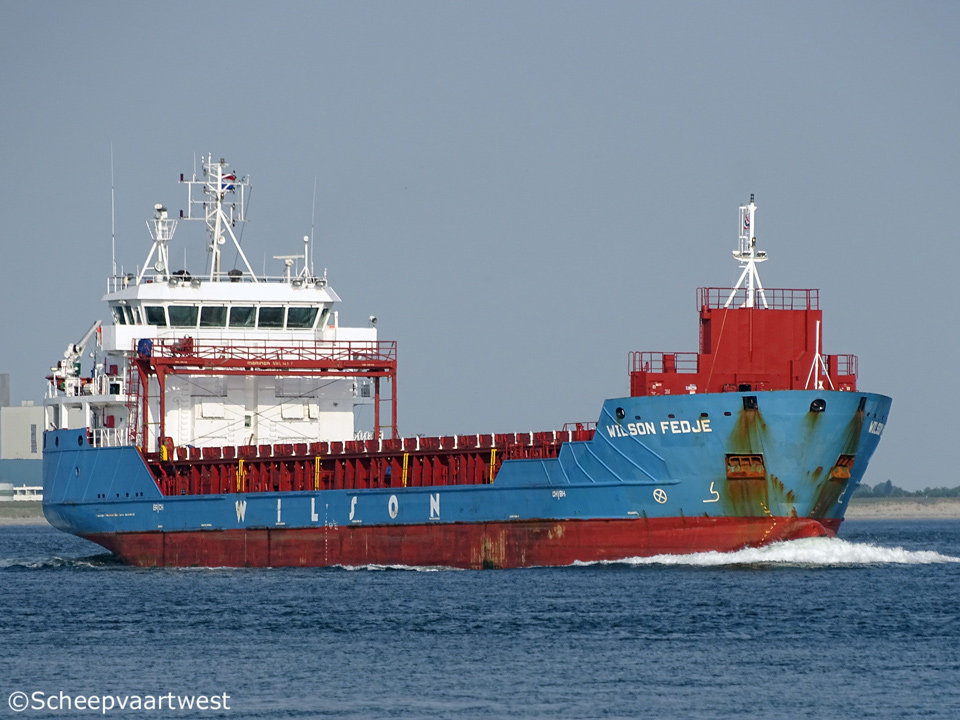

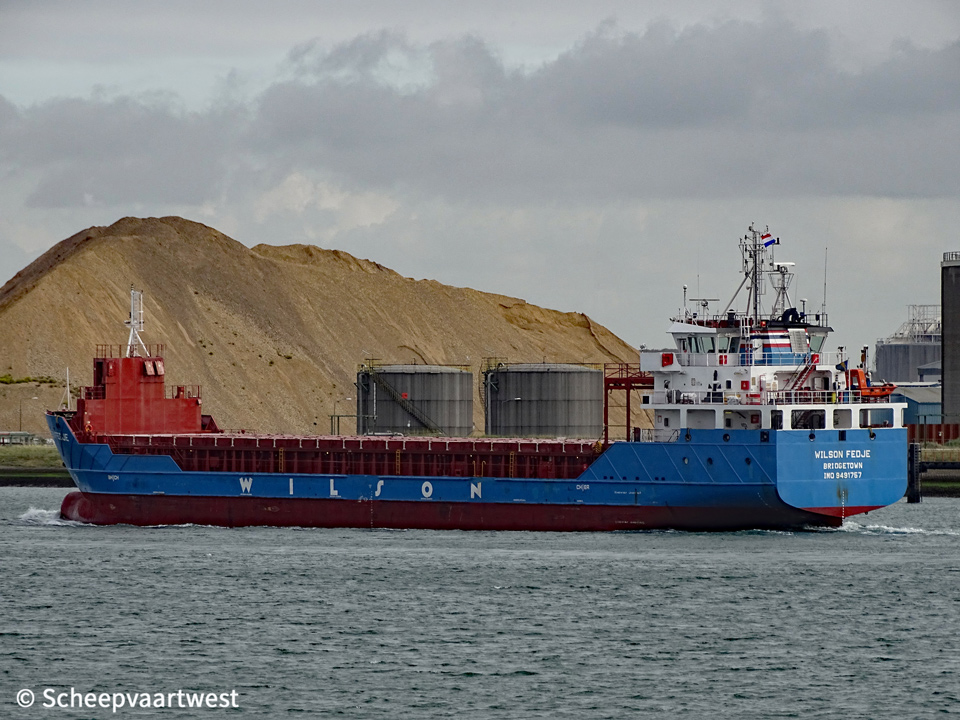

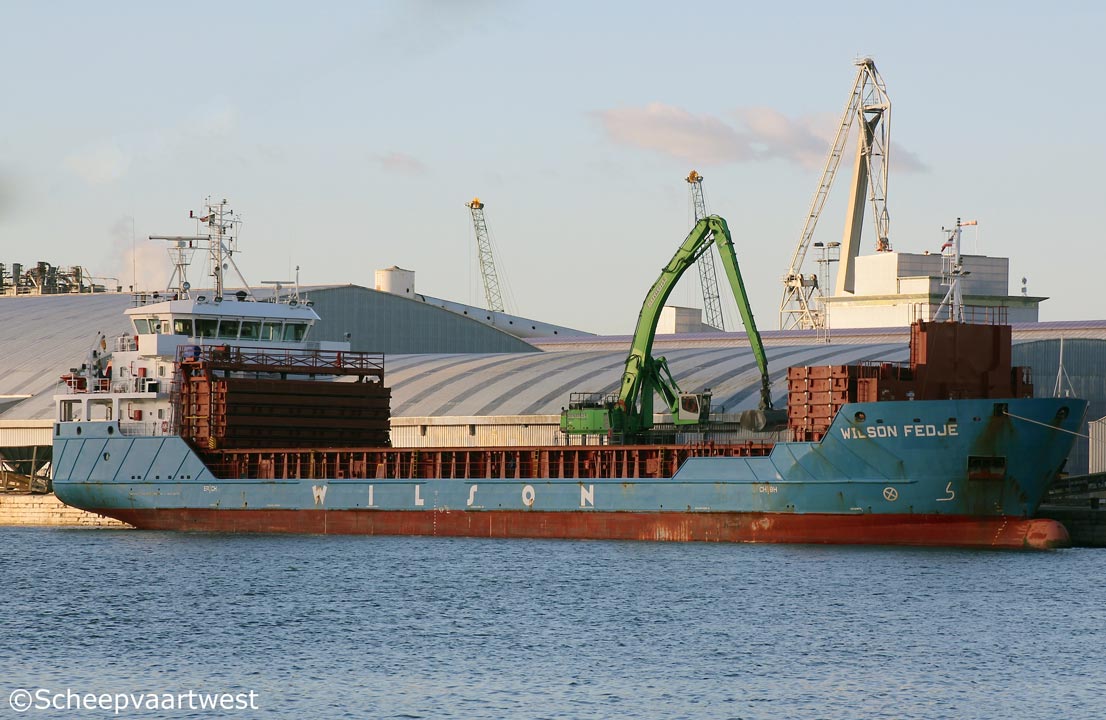

WILSON FEDJE |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9491757 |
|
Call sign |
8PAH4 |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
GT |
3.561 t |
|
DWT |
Summer: 4.672 t Winter: 4.513 t |
|
NT |
1.590 t |
|
Number of 20ft containers |
In hold: 105 On deck: 75 Total: 175 |
|
Length |
89,97 m overall 84,92 m between perpendiculars |
|
Breadth |
15,66 m extreme 15,40 m moulded |
|
Draught |
Summer: 5,80 m Winter: 5,68 m |
|
Air draft |
22,94 m |
|
Keel to top antenna fwd/aft |
22,40 / 27,00 m |
|
Depth |
7,60 m moulded |
|
Speed |
Service: 12,0 knots |
|
Built |
2012 |
|
Keel laid |
22/12/2008 |
|
Launch date |
10/04/2012 |
|
Date of completion |
15/10/2012 |
|
Builder |
Shandong Baibuting Shipbuilding Co., Ltd. Rong Cheng China |
|
Yard number |
BBT003 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable bulkheads, 6 working positions + 2 storage positions |
|
Main engine |
1x Wärtsilä 6L26B2 - 4 stroke 6 cylinder 320 x 260 mm combustion engine 2.040 kW / 2.774 hp at 1.000 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Generators |
2x MAN D2866 LXE main diesel generatorsets |
|
Emergency generator |
1x MAN D2866 LXE 20 diesel generatorset |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1 54,60 x 12,60 x 8,40 m Dimension with bulkheads in storage positions: 52,05 x 12,60 x 8,40 m |
|
Cargo hold capacity |
Bale & Grain: 5.684 m³ / 200.716 ft³ With bulkheads in storage positions: 5.509 m³ With bulkheads in working position: 5.684 m³ |
|
Number of hatches |
1 54,60 x 12,60 m |
|
Hatch type |
Pontoon type hatch with 11 pontoons, pontoons can be opened independently |
|
Max. permitted loads |
Deck/hatch cover: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Water ballast: 1.976,3 m³ Fuel main engine: 151,70 m³ Fuel auxiliary engines: 84,90 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 38 mm |
|
Crew |
8 |
|
Commercial manager |
Wilson Management AS Bradbenken 1 5003 Bergen Norway |
|
ISM manager |
Wilson Ship Management AS Bradbenken 1 5003 Bergen Norway |
|
Registered owner |
Wilson Shipowning AS Care of Wilson EuroCarriers AS Bradbenken 1 5003 Bergen Norway |
|
Latest data adjustment |
08 December 2023 |
