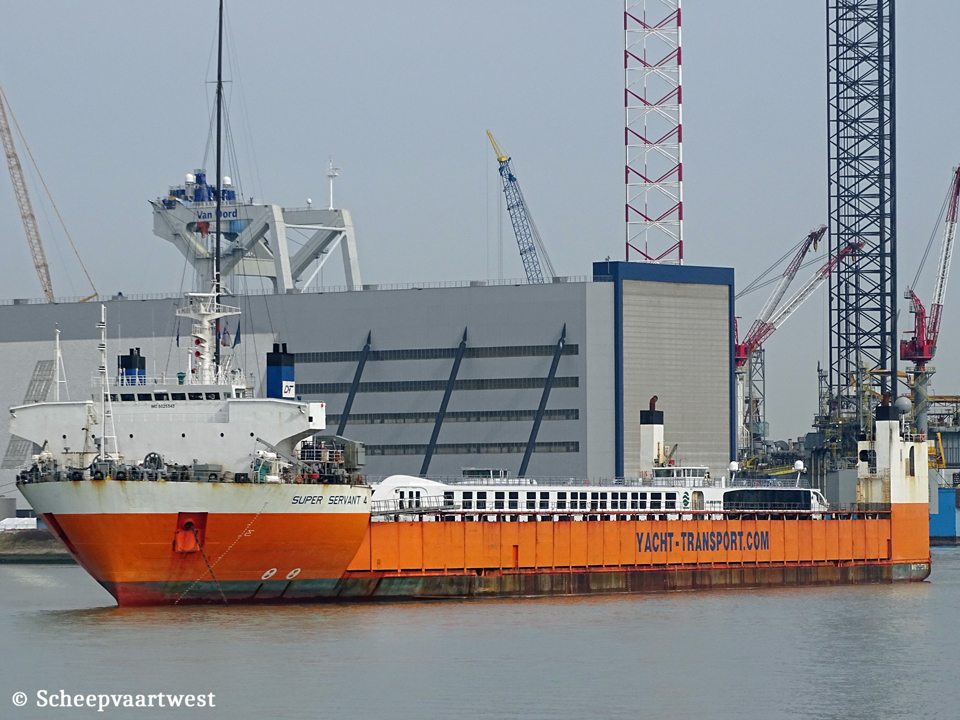

Vlissingen 02 July 2018 |
 |
 |
 |
 |
 |
 |
|||||

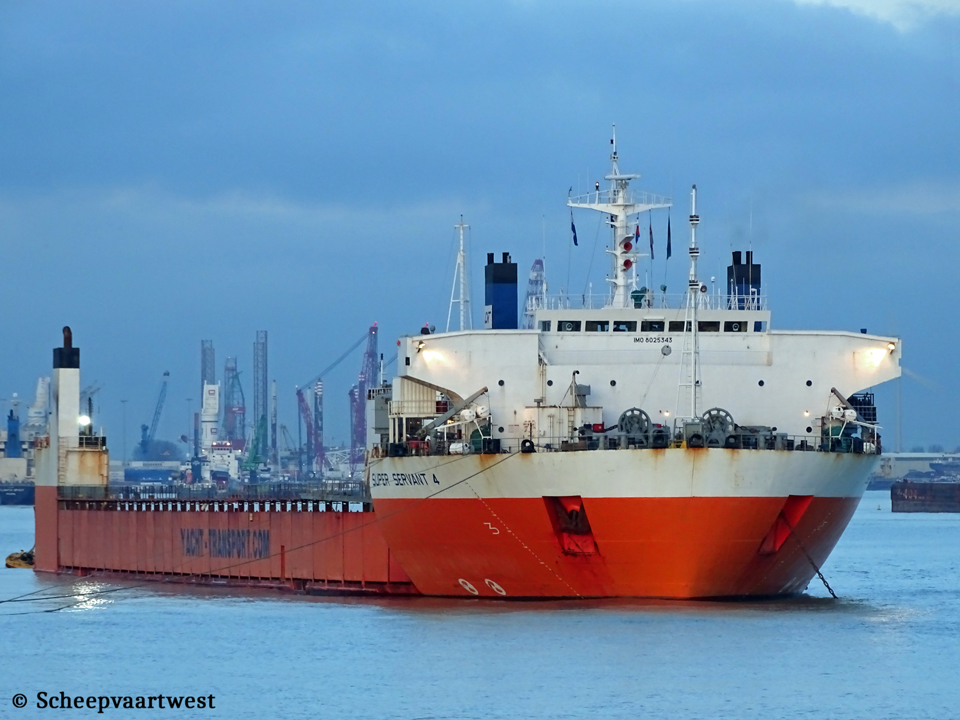

| Vlissingen 10/01/17 | Vlissingen 10/11/17 | Westerschelde 31/07/16 | Westerschelde 31/07/16 | Westerschelde 31/07/16 | Vlis 31/07/16 | |||||
 |
||||||||||
| Westerschelde 10/01/16 | ||||||||||
|
Name |
SUPER SERVANT 4 |
|
Type |
Yacht carrier - Semi-submersible heavy lift vessel |
|
IMO-number |
8025343 |
|
Call sign |
PJPO |
|
Flag |
Curaçao |
|
Port of registry |
Willemstad |
|
Previous flags |
|
|
GRT |
12.642 t |
|
DWT |
14.058,76 t |
|
NRT |
3.792 t |
|
Length |
169,49 m overall 160,00 m between perpendiculars |
|
Breadth |
32,29 m moulded |
|
Draught |
Summer: 5,38 m Max. submerged draught: 14,50 m |
|
Air draft |
37,00 m |
|
Displacement |
21.904 t |
|
Light ship |
7.845,8 t |
|
Freeboard |
3.161 mm |
|
Depth |
8,50 m to main deck |
|
Speed |
13,0 knots |
|
Built |
1982 |
|
Keel laid |
12/1981 |
|
Launch date |
20/04/1982 |
|
Delivery date |
06/1982 |
|
Builder |
Oshima Shipbuilding Co.,Ltd. - Japan 11/04/1995 Lengthened 30,00 m and new midbody installed by Hitachi Zosen Singapore Ltd. |
|
Yard number |
10060 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
2x Stork-Werkspoor Diesel 6TM410RL - 4 stroke single acting 6 cylinder 410 x 470 mm combustion engines each 3.170,5 kW at 570 rpm Total: 6.340 kW / 8.614 hp Manufacturer: Stork-Werkspoor Diesel B.V., Zwolle - The Netherlands |
|
Propellers |
2x Controllable pitch propellers - 4 blades |
|
Boilers |
1x Auxiliary boiler - 7,0 bar Heating surface: 29,3 m² 2x Waste heat boiler - 7,0 bar Heating surface: 57,60 m² |
|
Shaft generator |
2x Each 440 kW / 440 Volt 90 Hz |
|
Generators |
3x Caterpillar 3406 diesel generatorsets each 238 kVA - 190 kW - 258 hp / 440 volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 190 kVA - 152 kW - 258 hp |
|
Bow thruster |
2x Kaplan type electric/hydraulic controllable pitch propellers each 300 kW 4 blades at 516 rpm |
|
Free deck length |
145,82 m |
|
Free deck area |
4.672 m³ |
|
Permissible loads on main deck |
15 t/m² |
|
Ballast pump/compressors Capacity |
3x Air Compressors each 2.480 m³/h 2x Ballast pumps each 400 m³/h, forward 1x Ballast pump 530 m³/h, aft |
|
Number of tanks |
Ballast: 28 Fuel oil: 9 Jet fuel: 4 Fresh water: 4 Lubricating oil: 3 Waste water: 2 Sludge: 1 Chain: 1 Hydraulic oil: 1 |
|
Tank capacities |
Ballast: 32.096,25 m³ Heavy fuel: 1.619,3 m³ Diesel oil: 242,6 m³ Lub. oil: 58,0 m³ Dirty/bilge water: 13,3 m³ Sludge: 55,7 m³ Incinerator sludge: 1,2 m³ Fresh water: 149,0 m³ |
|
Crew |
24 |
|
Manager |
Spliethoff's Bevrachtingskantoor B.V. Radarweg 36 1042 AA Amsterdam The Netherlands |
|
Previous managers |
|
|
Operator |
DYT Yacht Transport |
|
Owner |
Shuttle Shipping N.V. Willemstad Curaçao |
|
Registered owner |
Super Servant 4 B.V. |
|
Previous owners |
|
|
Latest data adjustment |
22 May 2023 |
