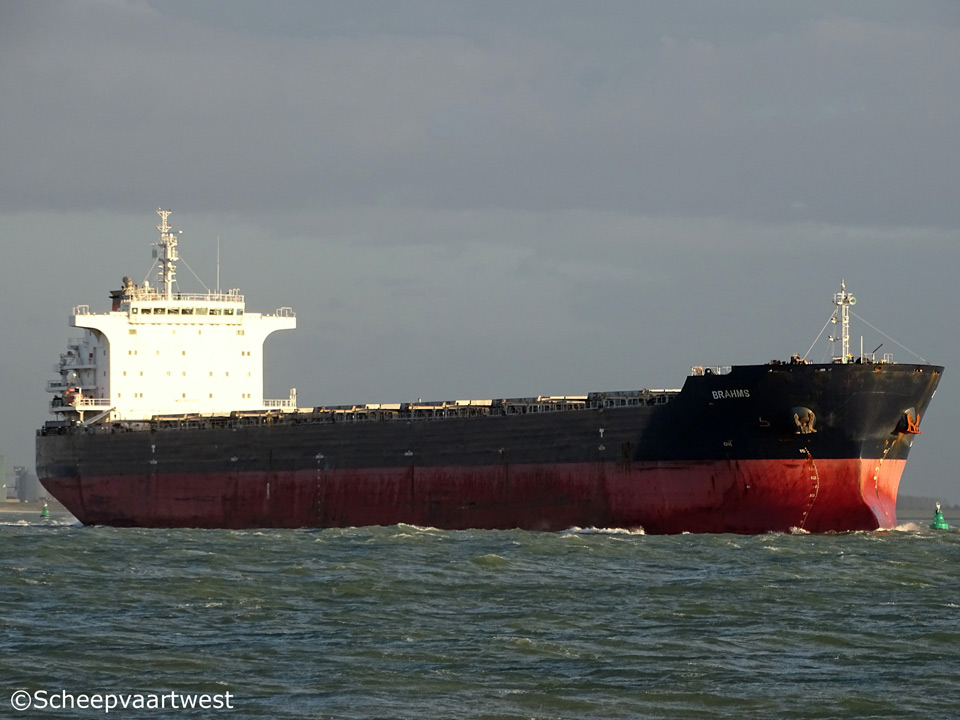

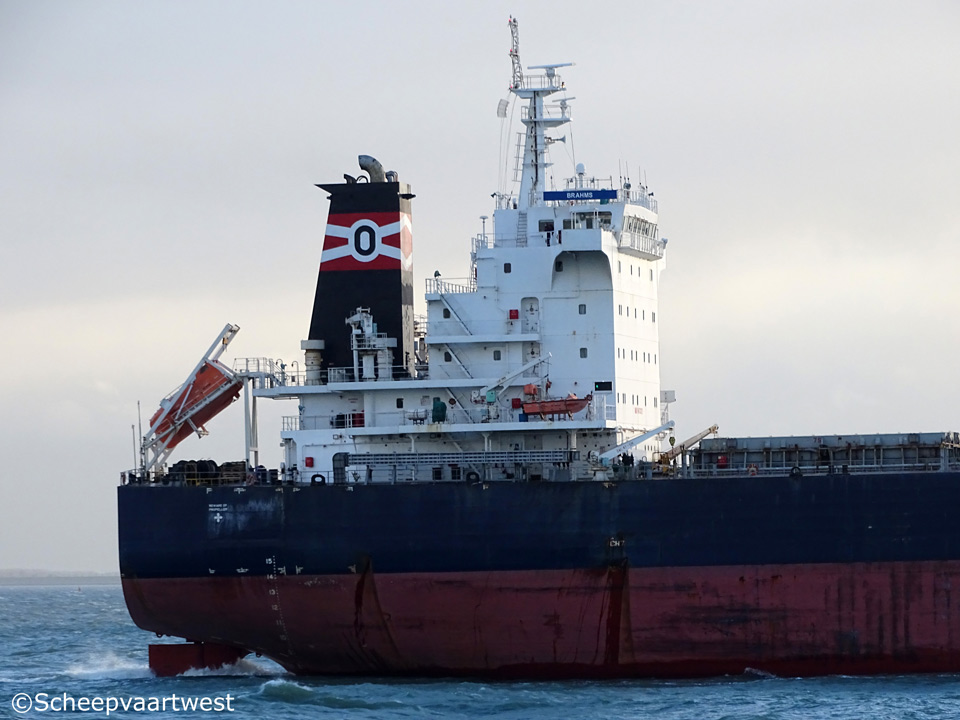

Westerschelde 11 January 2017 |
 |
| Westerschelde 11/01/17 |
|
Name |
BRAHMS |
|
Previous names |
2011 - 07.2014 Conti Serpentin |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9473327 |
|
Call sign |
9HA3558 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
41.074 t registered |
|
DWT |
75.003 t |
|
NT |
25.643 t registered |
|
Length |
225,00 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,22 m |
|
Moulded L x B x D |
217,00 x 32,26 x 19,60 m |
|
Registered L x B x D |
217,92 x 32,26 x 19,60 m |
|
Freeboard |
5.420 mm |
|
Depth |
19,60 m moulded |
|
Speed |
15,4 knots |
|
Built |
2011 |
|
Keel laid |
04.03.2010 |
|
Date of completion |
22.06.2011 |
|
Builder |
Penglai Zhongbai Jinglu Ship Industry Co., Ltd. Lingang Ind Zone Xicheng Penglai, 265601 China |
|
Yard number |
JL0005(B) |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 5 cylinder 600 x 2.400 mm diesel engine 8.833 kW at 105,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x oil lubrication shaft without monitoring device Diameter: 535 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 2,70 t/h Manufacturer: Aalborg(Qingdao) Boiler Company Ltd. |
|
Generators |
4x Generators - 2.225 kVA |
|
Cargo hold capacity |
Grain: 90.136 m³ |
|
Tank capacities |
Fuel oil: 3.049 m³ Fresh water: 343 m³ |
|
Manager |
Orion Reederei GmbH & Co. KG |
|
Registered owner |
Bareboat Charterer: Brahms Shipping Company Limited |
|
Latest data adjustment |
24 April 2017 |
