Westerschelde 12 January 2017 |
 |
| Westerschelde 12/01/17 |
|
Name |

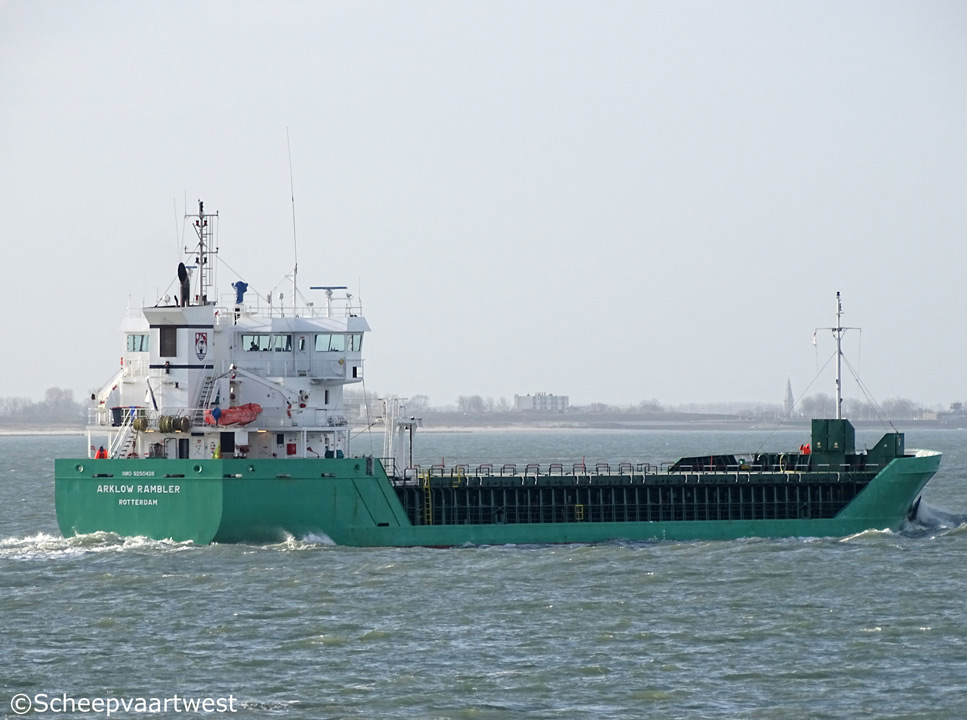

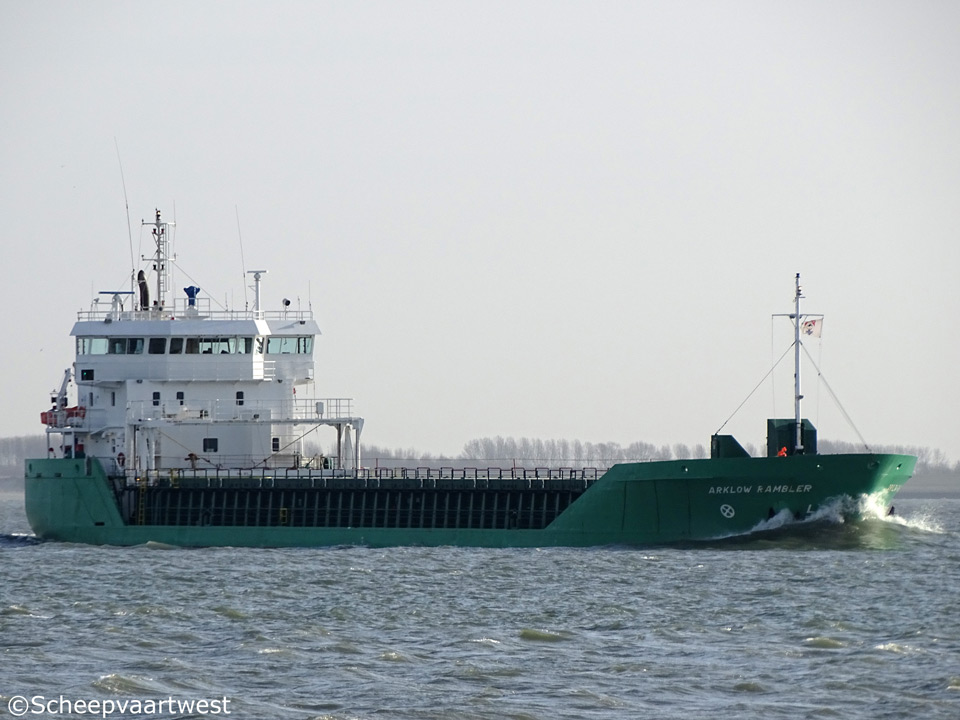

ARKLOW RAMBLER |
|
Type |
General dry cargo ship - heavycargo - Strength bottom |
|
IMO-number |
9250426 |
|
Call sign |
PBGS |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.999 t |
|
DWT |
5.065 t |
|
NT |
1.671 t |
|
Displacement |
6.500 t |
|
Number of 20ft containers |
138 |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,40 m moulded |
|
Draught |
Summer: 6,31 m |
|
Air draft |
Min.: 19,01 m |
|
Freeboard |
1.054 mm |
|
Depth |
7,35 m moulded |
|
Speed |
11,5 knots |
|
Built |
2002 |
|
Launch date |
10.05.2002 |
|
Date of completion |
21.06.2002 |
|
Builder |
Scheepswerf Bijlsma Lemmer B.V., Lemmer, Netherlands (Veka Shipyard Lemmer B.V.) |
|
Yard number |
700 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x May be placed in 7 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm diesel engine 1.800 kW / 2.446 hp at 750 rpm Built: 28.03/2002 Builder: MaK Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Electric installations |
Power voltage: 400 V Frequency: 50 Hz |
|
Shaft generator |
1x 390 kVA - 312 kW |
|
Generators |
2x Main diesel generatorsets each 175 kVA - 140 kW - 204 hp |
|
Bow thruster |
1x 260 kW |
|
Number of holds |
1x Fitted with dehumidifier |
|
Hold capacity |
Grain/bale: 214.119 ft³- 6.063 m³ |
|
Hatch type |
Pontoon system |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatches: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.938 m³ Fuel oil: 190 m³ Fresh water: 48 m³ Lub oil: 13 m³ |
|
Manager |
Arklow Shipping Nederland B.V. |
|
Owner |
Arklow Shipping Nederland BV |
|
Registered owner |
C.V. Scheepvaartonderneming Arklow 2 |
|
Latest data adjustment |
04 May 2017 |
