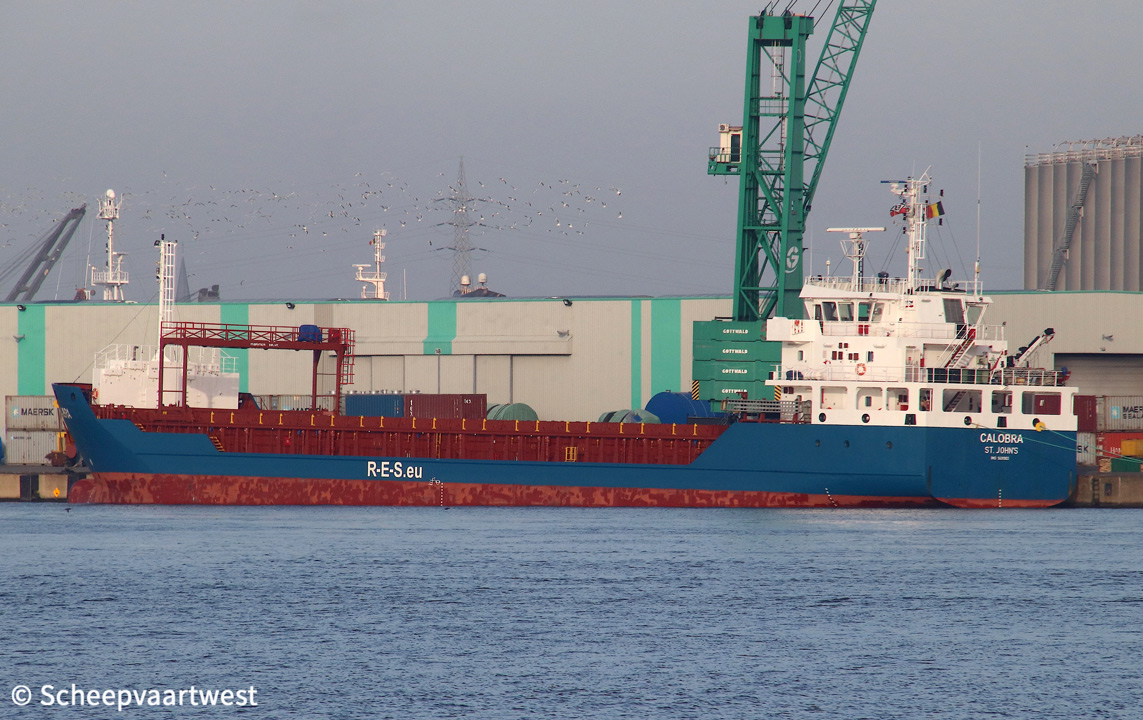

Antwerpen 09 April 2017 |
 |
 |
 |
||

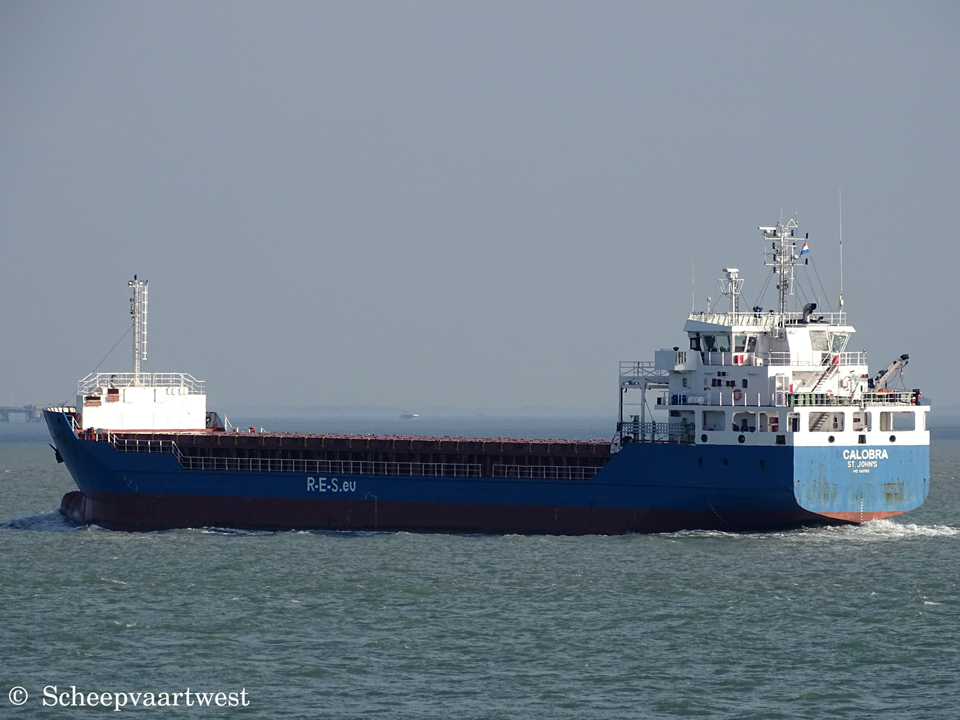

| Westerschelde 14/10/17 | Antwerpen 31/12/19 | Antwerpen 31/12/19 |
|
Name |
CALOBRA |
|
Previous names |
2009 Launch as: Theda 2009 - 2016 Blue Carmel |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9491903 |
|
Call sign |
V2ER5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
2009 - 2011 Gibraltar - Call sign: ZDLM5 |
|
GT |
3.845 t |
|
DWT |
Summer: 5.203,48 t |
|
DWCC |
Summer: 5.000 t Winter: 4.800 t |
|
NT |
1.590 t |
|
Length |
89,97 m overall 84,95 m between perpendiculars |
|
Breadth |
15,62 m extreme 15,40 m moulded |
|
Draught |
6,13 m |
|
Air draft |
26,34 m in ballast |
|
Depth |
7,61 m |
|
Speed |
11,2 knots |
|
Built |
2009 |
|
Keel laid |
20/08/2008 |
|
Launch date |
24/07/2009 |
|
Date of completion |
02/12/2009 |
|
Builder |
Israel Shipyards Ltd. Haifa Israel |
|
Yard number |
2025 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Movable bulkheads |
2x Movable units various positions - Can be placed as tweendecks |
|
Main engine |
1x MAN-B&W 6L27/38 - 6 cylinder combustion engine 2.040 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired |
|
Shaft generator |
1x Leroy Some 400 kVA |
|
Generators |
2x MAN D2866 LXE30 diesel generatorsets each 218 kW |
|
Emergency generator |
1x MAN D0824 LE201 diesel generatorset |
|
Bow thruster |
1x Jastram 250 kW |
|
Number of holds |
1 53,50 x 12,59 x 8,44 m |
|
Hold capacity |
200.000 ft³ |
|
Hatch cover type |
Pontoons |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Deck: 1,50 t/m² |
|
Tank capacities |
Ballast: 2.146 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 38 mm |
|
Operator |
R.E.S. Chartering GmbH -(Reederei Erwin Strahlmann GmbH & Co. KG) Fuhlentwiete 10 20355 Hamburg Germany |
|
Owner |
Lappan Shipping & Trading GmbH & Co. KG c/o Reederei Erwin Strahlmann, Schleusenstrasse 10 25541 Brunsbuettel Germany |
|
Renamed |
06/2021 Marian R G.D. Luxembourg - Call sign: LXMO Reg. Owner: Verto Maian R GmbH & Co. KG Manager: Vertom Bereederungs GMGB & Co. KG |
|
Latest data adjustment |
17 July 2021 |
