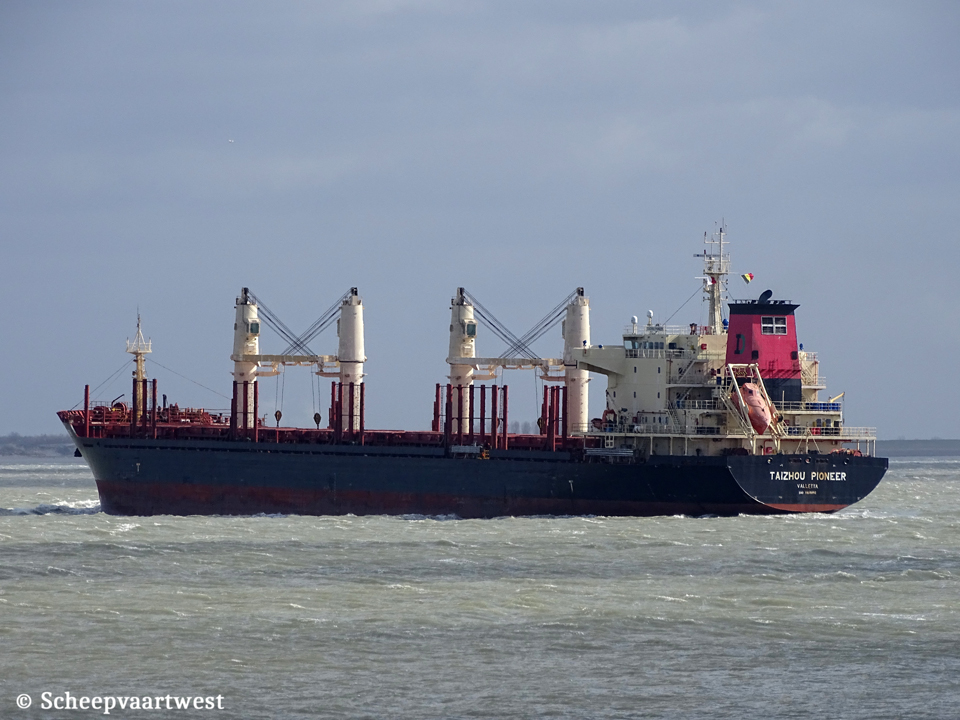

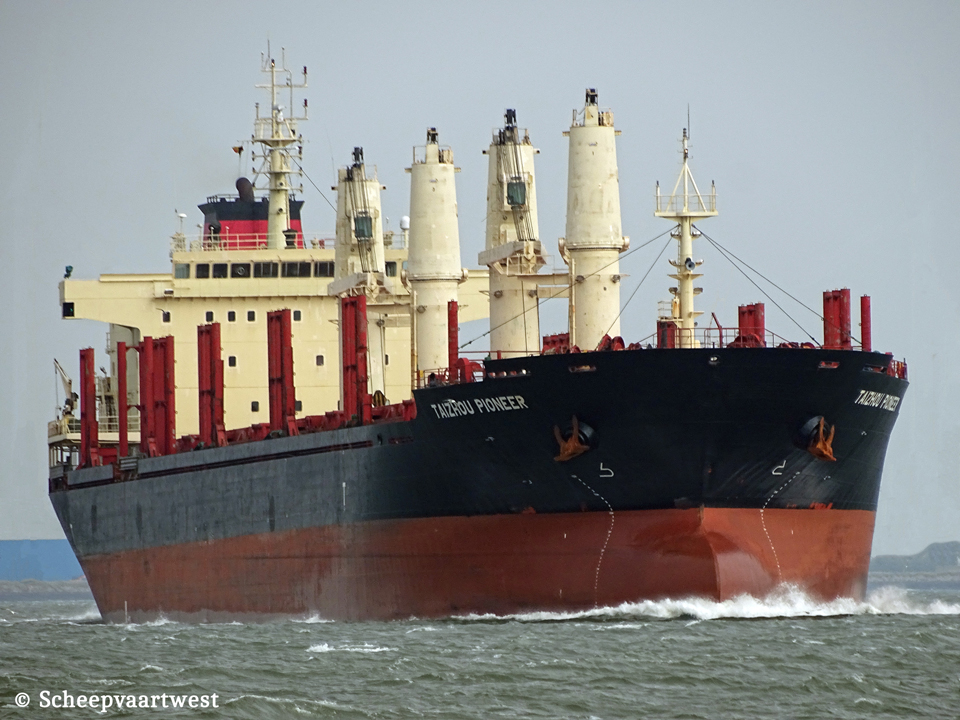

Westerschelde 12 April 2017 |
 |
 |
|

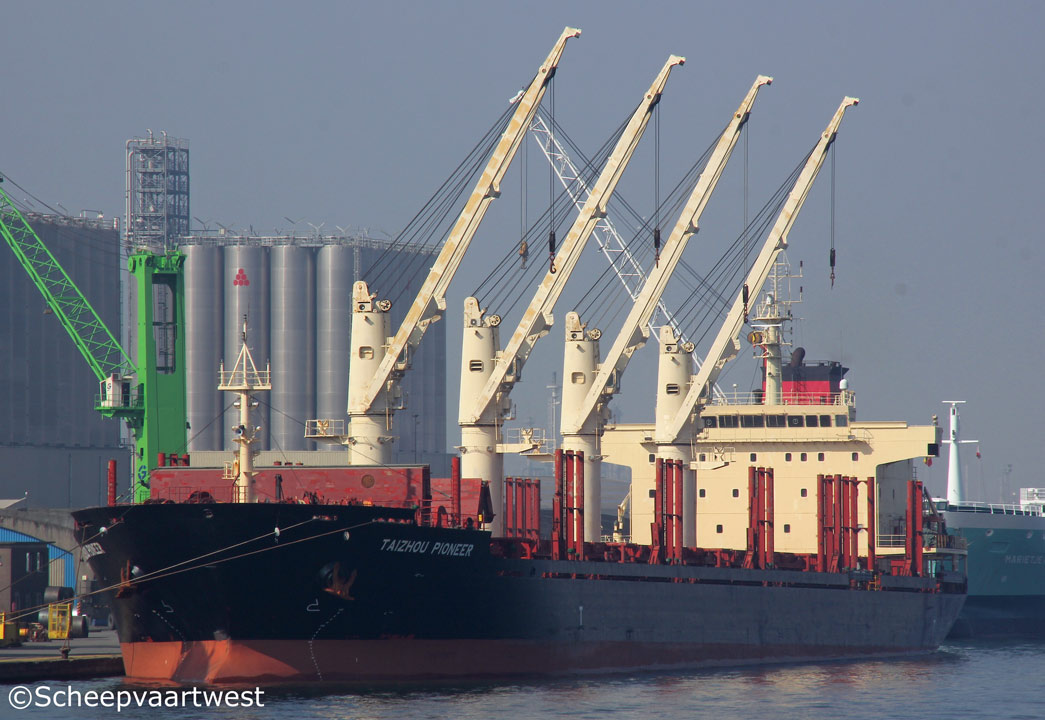

| Westerschelde 11/03/19 | Antwerpen 09/04/17 | |
|
Name |
TAIZHOU PIONEER |
|
Type |
Bulk/Lumber carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9619892 |
|
Call sign |
9HA3743 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2011 - 2014 Hong Kong, China - call sign: VRIJ9 |
|
GT |
20.954 t registered |
|
DWT |
Summer: 32.391 t |
|
NT |
11.781 t registered |
|
Length |
179,90 m overall |
|
Breadth |
28,40 m moulded |
|
Draught |
Summer: 10,14 m |
|
Moulded L x B x D |
171,50 x 28,40 x 14,10 m |
|
Registered L x B x D |
172,45 x 28,40 x 14,10 m |
|
Keel to mast end |
41,00 m |
|
Freeboard |
Summer: 3.976 mm |
|
Depth |
14,10 m moulder |
|
Speed |
16,5 knots |
|
Built |
2011 |
|
Keel laid |
21/01/2011 |
|
Launch date |
18/06/2011 |
|
Date of completion |
25/09/2011 |
|
Builder |
Taizhou Maple Leaf Shipbuilding Co., Ltd. China |
|
Yard number |
31800-29 |
|
Hull material |
Steel |
|
Main engine |
1x STX/MAN-B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 6.480 kW at 136,0 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 425 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 2,10 t/h Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Generators |
4x Generatorsets total 1.893 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 43.460 m³ Bale: 41.420 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.737 m³ Fresh water: 346 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each |
|
Commerical manager |
ID Management Aps Bredgade 30 1260 Copenhagen Denmark |
|
ISM manager |
Tamar Ship Management Limited 26th Floor, Vertical Square, 28, Heung Yip Road, Wong Chuk Hang Hong Kong China |
|
Registered owner |
Danskib 85 Care of ID Management ApS Bredgade 30 1260 Copenhagen Denmark |
|
Latest data adjustment |
24 July 2022 |
