Westerschelde 09 December 2015 |
|
Name |

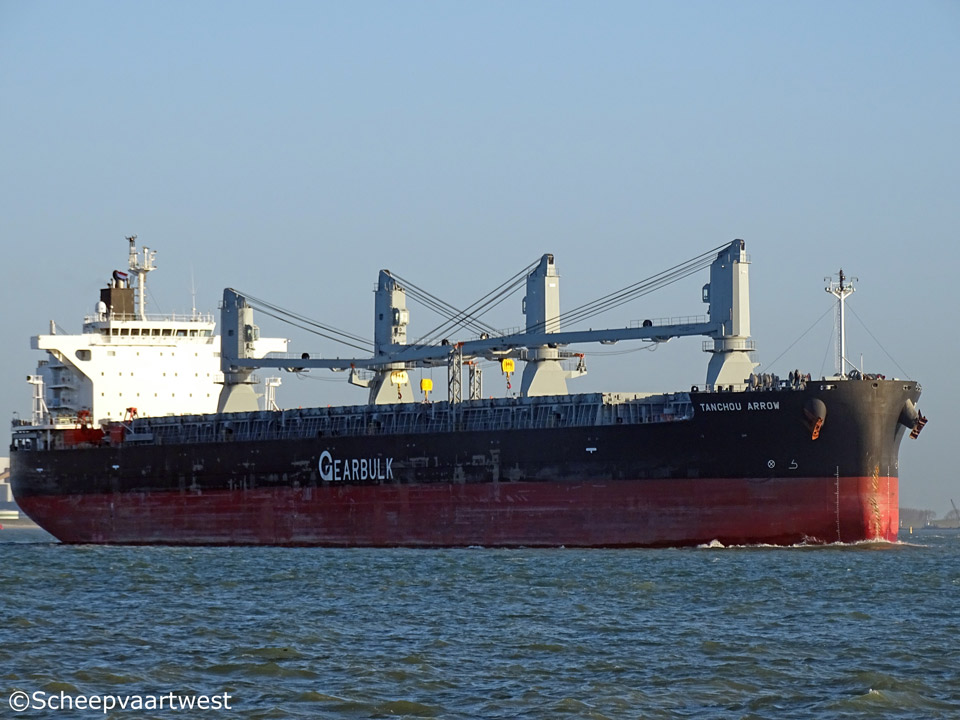

TANCHOU ARROW |
|
Type |
General cargo - Open hatch - Single deck |
|
IMO-number |
9567740 |
|
Call sign |
C6AY5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
44.866 t registered |
|
DWT |
72.400 t |
|
NT |
22.321 t registered |
|
Length |
209,99 m overall 206,02 m between perpendiculars |
|
Breadth |
36,00 m extreme |
|
Draught |
13,79 m |
|
Depth |
19,54 m |
|
Speed |
14,5 knots |
|
Built |
2014 |
|
Keel laid |
09.08.2013 |
|
Launch date |
09.02.2014 |
|
Date of completion |
27.03.2014 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Japan |
|
Yard number |
10664 |
|
Hull material |
Steel |
|
Main engine |
1x MITSUI-MAN B&W 5S60ME-C8.2 TII - 2 stroke 5 cylinder diesel engine 9.450 kW |
|
Propellers |
1x Mono-block fixed pitch propeller Builder: Nakashima |
|
Boilers |
1x Auxiliary boiler, composite Builder: Alfa Laval |
|
Generators |
2x Hyundai 6H21/32 diesel generatorsets each 1.100 kW 1x Hyundai 5H21/32 diesel generatorset 835 kW Builder: Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Deutz TCD914L06M diesel generatorset |
|
Bow thruster |
1x 1.600 kW |
|
Number of cargo holds |
8 Hold 1: 15,81 x 15,50 x 20,50 m Hold 2-7: 19,50 x 30,60 x 20,50 m Hold 8: 17,70 x 20,60 x 19,00 m |
|
Cargo hold capacity |
Bale/grain: 84.125 m³ |
|
Tank capacities |
Ballast: 26.829 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 81 mm |
|
Cargo gear |
4x Cranes - SWL 45,0 t Jib Grabs: 4x 15,0 m³ |
|
Manager |
Gearbulk Norway AS |
|
Owner |
Gearbulk Shipowning Ltd. |
|
Latest data adjustment |
09 July 2017 |
