Antwerpen 27 July 2017 |
|
Name |

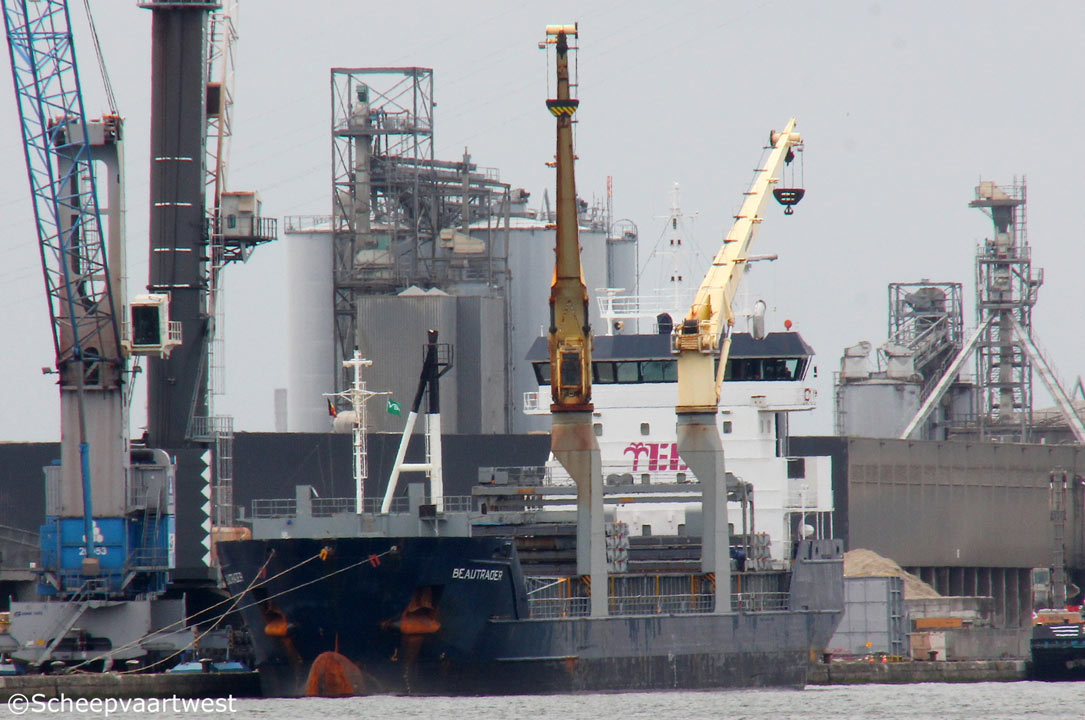

BEAUTRADER |
|
Type |
Multi-purpose cargo ship - Strengthened for heavy cargo - Single/tween deck boxshaped Damen Combi Freighter 7200 |
|
Basic functions |
Transport of bulk, steel coils, containers, forest products |
|
IMO-number |
9428657 |
|
Call sign |
PHQD |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flags |
2009 - 2016 The Netherlands, Sneek |
|
GT |
5.132 t |
|
DWT |
Summer: 7.210 t |
|
DWCC |
Summer: 7.215 t Winter: 6.980 t |
|
NT |
2.891 t |
|
Number of 20ft containers |
In hold: 171 On deck: 165 Total: 336 |
|
Length |
118,14 m overall 115,70 m between perpendiculars |
|
Breadth |
15,90 m moulded |
|
Draught |
Summer: 6,54 m 4,60 m ballast |
|
Air draft |
27,90 m keel/mast |
|
Depth |
8,80 m |
|
Speed |
13,6 knots |
|
Built |
2009 |
|
Launch date |
2008 |
|
Date of completion |
03.2009 |
|
Builder casco |
Zaliv Shipyards |
|
Builder completion |
Damen Shipyards Bergum Yard number: 9405 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
4x |
|
Continuous decks |
1 |
|
Main engine |
MaK 9M25c - 4 stroke single acting 9 cylinder 255 x 400 mm diesel engine output 2.970 kW at 750 rpm Manufacturer: M.A.K. Caterpillar, Kiel - Germany |
|
Propellers |
1x controllable pitch propeller - Diameter: 4.250 mm |
|
Shaft generator |
1x 435 kVA |
|
Generators |
2x Main diesel generatorsets each 325 kVA |
|
Emergency generator |
1x Diesel generatorsets 120 kVA |
|
Compressed air receivers |
2x Starting air compressors |
|
Bow thruster |
1x Fixed pitch propeller 300 kW, electrically driven |
|
Number of holds |
2 Hold 1: 32,66 x 13,20 x 9,70 m Hold 2: 51,12 x 13,20 x 9,70 m |
|
Cargo hold capacity |
10.510 m³ / 371.155 ft³ |
|
Hatch type |
Weatherdeck hatches pontoon type, tweendecks pontoon type, operated by gantry crane and cargo cranes |
|
Max. permitted loads |
Tanktop: 17,0 t/m² Hatch cover: 1,6 t/m² |
|
Tank capacities |
HFO: 497 m³ Gas oil: 36 m³ Lub oil: 34 m³ Dirty oil: 10 m³ Sludge: 19 m³ Sewage; 52 m³ Potable water: 52 m³ Ballast water: 3.028 m³ |
|
Cargo gear |
2x Liebherr cranes - SWL 40,0 t each |
|
Accommodation |
For captain, officers and crew for a total of 11 persons with heating, ventilation and air-conditioning |
|
Manager |
Focus Shipmanagement B.V. |
|
Previous managers |
03.2009 - 04.2016 Unisea Shipping B.V., Sneek - The Netherlands |
|
Owner |
Beautrader B.V. |
|
Latest data adjustment |
21 August 2017 |
