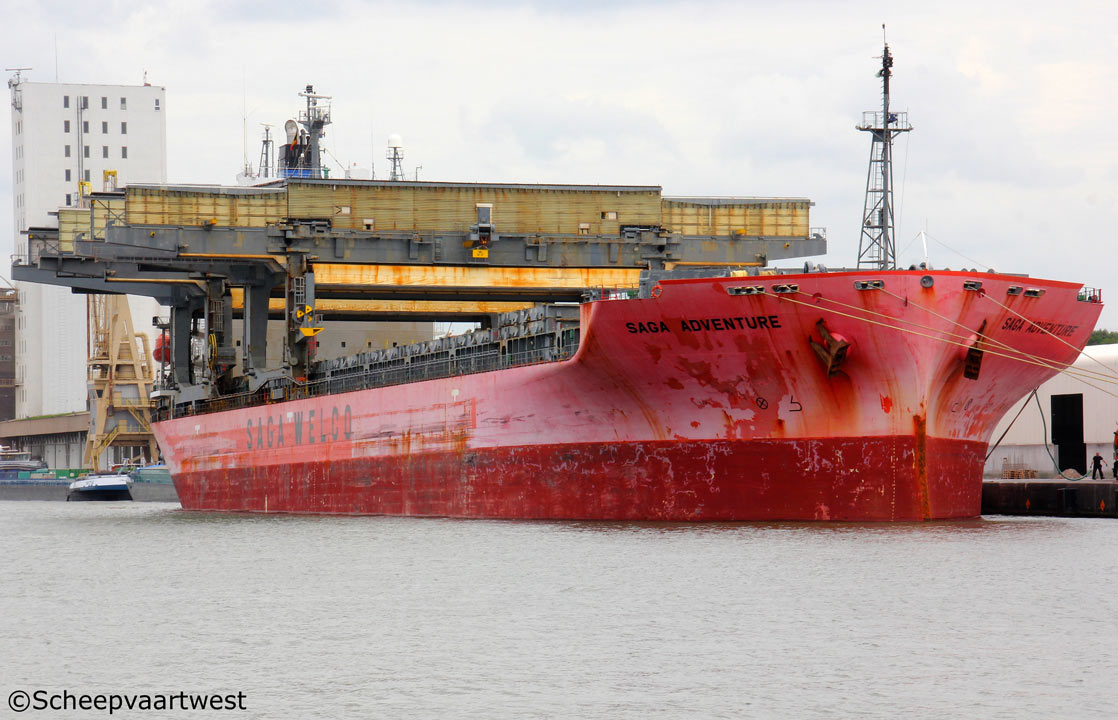

Saga Adventure 02

Antwerpen 27 July 2017

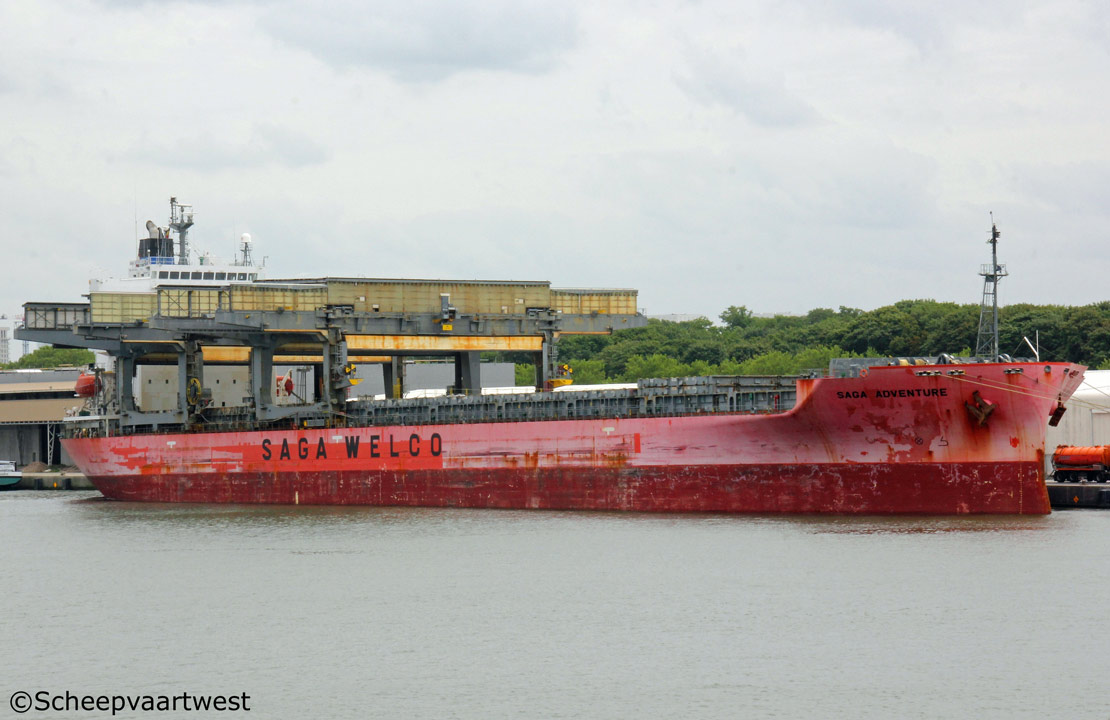

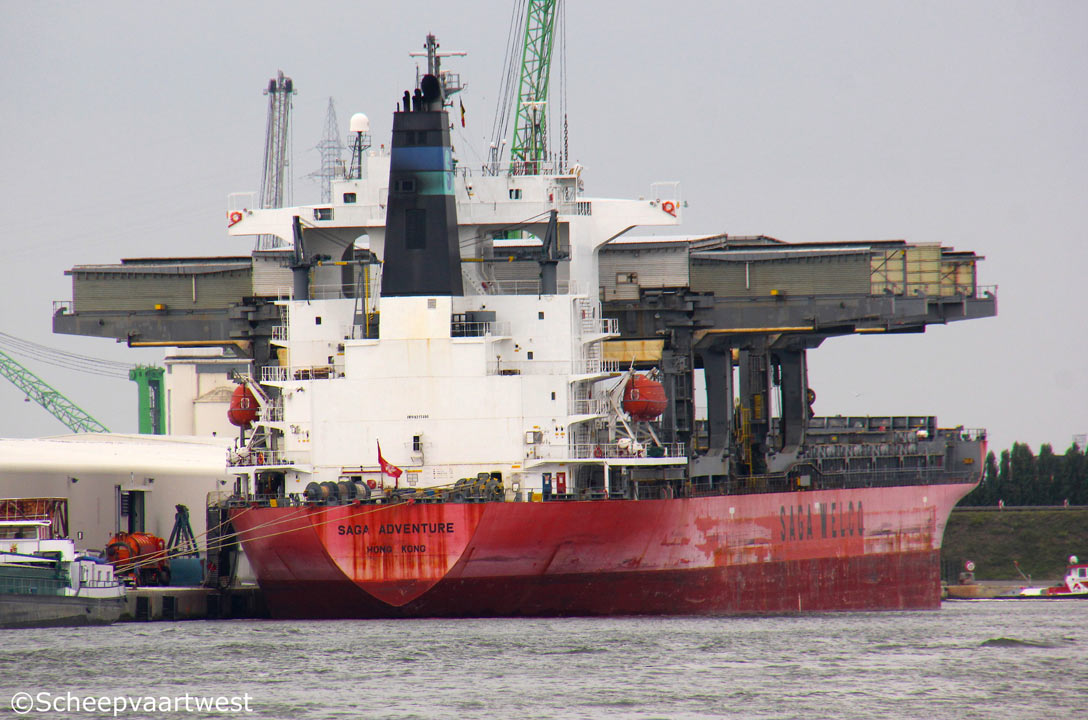

Saga Adventure 03   Saga Adventure 01
Antwerpen 127/07/17 Antwerpen 127/07/17



Name

SAGA ADVENTURE

Type

General cargo ship - Single deck

IMO-number

9317406

Call sign

VRBL4

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

29.758 t

DWT

Summer: 46.627 t

NT

14.440 t

Number of 20ft containers

On deck: 400

In hold: 360

Total: 760

Length

199,20 m overall

194,70 m between perpendiculars

Breadth

30,58 m extreme

Draught

11,82 m

Depth

16,40 m

Speed

14,5 knots

Built

2005

Keel laid

27.02.2004

Launch date

19.09.2005

Date of completion

24.11.2005

Builder

Oshima Shipbuilding Co., Ltd.
Saikai
Japan

Yard number

10427

Hull material

Steel

Bulkheads

Transverse: 13

Longitudinal: 2

Main engine

1x Wärtsilä 7RTA52 - 2 stroke 7 cylinder diesel engine 9.510 kW

Builder: Wärtsilä NSD Switzerland Ltd.

Propellers

1x Mono-block propeller

Builder: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary boiler, composite

Builder: Osaka Boiler Mfg. Co., Ltd.

Generators

3x Daihatsu 6DK-20 diesel generatorsets

Builder: Daihatsu Diesel Mfg. Co., Ltd.

Emergency generator

1x Mitsui BF 6L913 diesel generatorset

Number of holds

10

Cargo hold capacity

Hold 1: 3.607 m³ / 127.380 ft³

Hold 2: 5.099 m³ / 180.069 ft³

Hold 3: 5.659 m³ / 199.846 ft³

Hold 4: 5.659 m³ / 199.846 ft³

Hold 5: 5.659 m³ / 199.846 ft³

Hold 6: 5.659 m³ / 199.846 ft³

Hold 7: 5.659 m³ / 199.846 ft³

Hold 8: 5.659 m³ / 199.846 ft³

Hold 9: 5.659 m³ / 199.846 ft³

Hold10: 4.913 m³ / 173.501 ft³

Total: 53.232 m³ / 1.879.872 ft³

Tank capacities

Ballast: 16.475 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Cargo gear

2x Travelling gantry cranes with weather protection - SWL 42,0 t each

Manager

Anglo-Eastern Ship Management Ltd.

Hong Kong
China

Operator

Saga Welco AS
Tenvikveien 373-375
3140 Nøtterøy
Norway

Registered owner

Saga Shipholding (Norway) AS

3140 Nøtterøy
Norway

Latest data adjustment

21 August 2017
