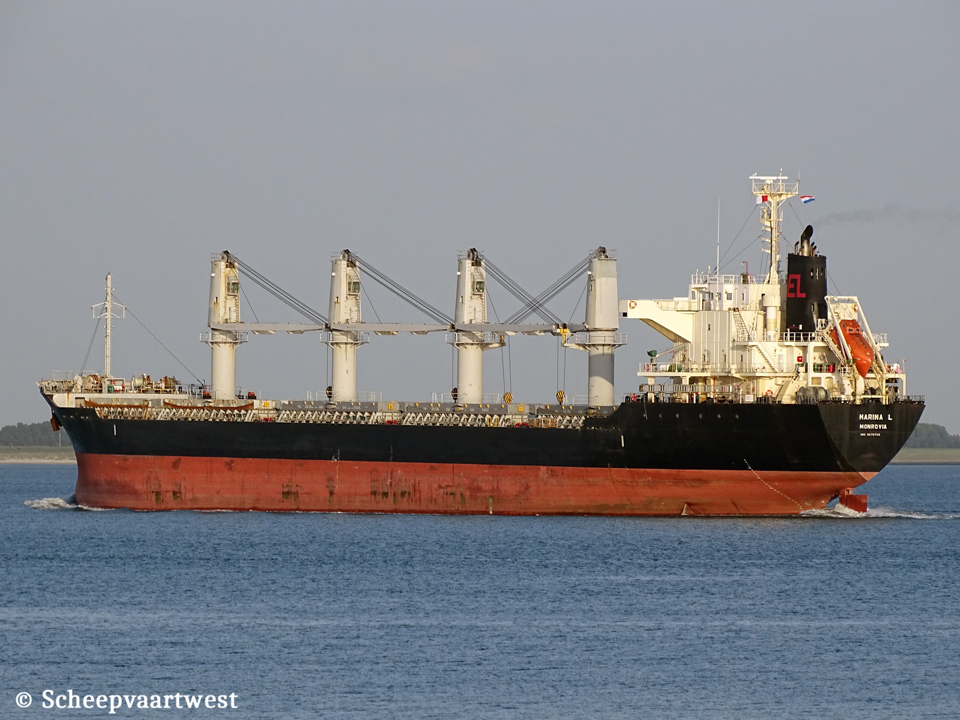

Westerschelde 21 August 2019 |
 |

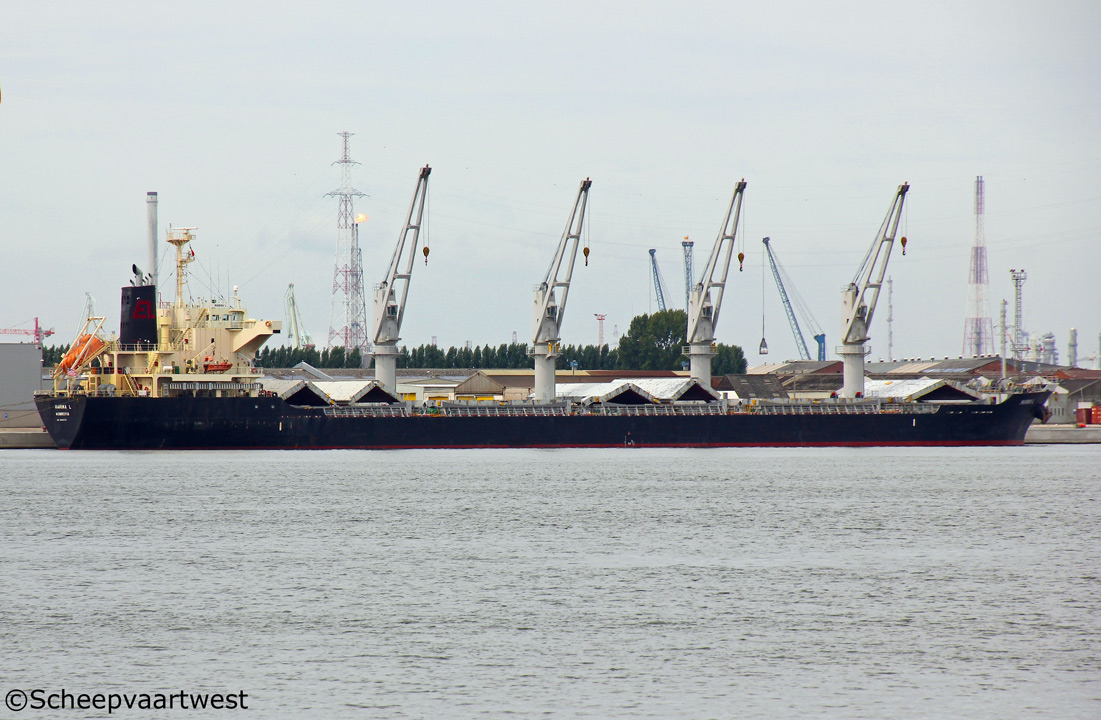

| Antwerpen 16/08/17 |
|
Name |
MARINA L |
|
Previous names |
2014 - 2005 Brilliant Moira |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9675705 |
|
Call sign |
D5HZ6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2014 - 2015 Marshall Island, Majuro - Call sign: V7CX7 |
|
GT |
17.027 t registered |
|
DWT |
28.384 t |
|
NT |
10.108 t registered |
|
Length |
169,37 m overall |
|
Breadth |
27,20 m moulded |
|
Draught |
Summer: 9,82 m |
|
Moulded L x B x D |
160,40 x 27,20 x 13,60 m |
|
Registered L x B x D |
161,21 x 27,20 x 13,60 m |
|
Freeboard |
Summer: 3.825 mm |
|
Depth |
13,60 m moulded |
|
Speed |
Max.: 16,4 knots |
|
Built |
2014 |
|
Keel laid |
28/12/2010 |
|
Launch date |
02/11/2013 |
|
Date of completion |
14/01/2014 |
|
Builder |
I-S Shipyard Co., Ltd. Head Office Imabari Japan |
|
Yard number |
A067 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Hitachi 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 5.850 kW at 129,0 rpm Manufacturer: Hitachi Zosen Corporation Innoshima Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 420 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 1,95 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators total 1.715 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 35.742 m³ Grain: 37.320 m³ |
|
Tank capacities |
Fuel oil: 1.538 m³ Fresh water: 262 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each |
|
Manager |
Evalend Shipping Co., S.A. Filellinon 21 Athens 105 57 Greece |
|
Registered owner |
Estella Navigation Inc. |
|
Latest data adjustment |
19 April 2021 |
