Antwerpen 16 August 2017 |
Name |

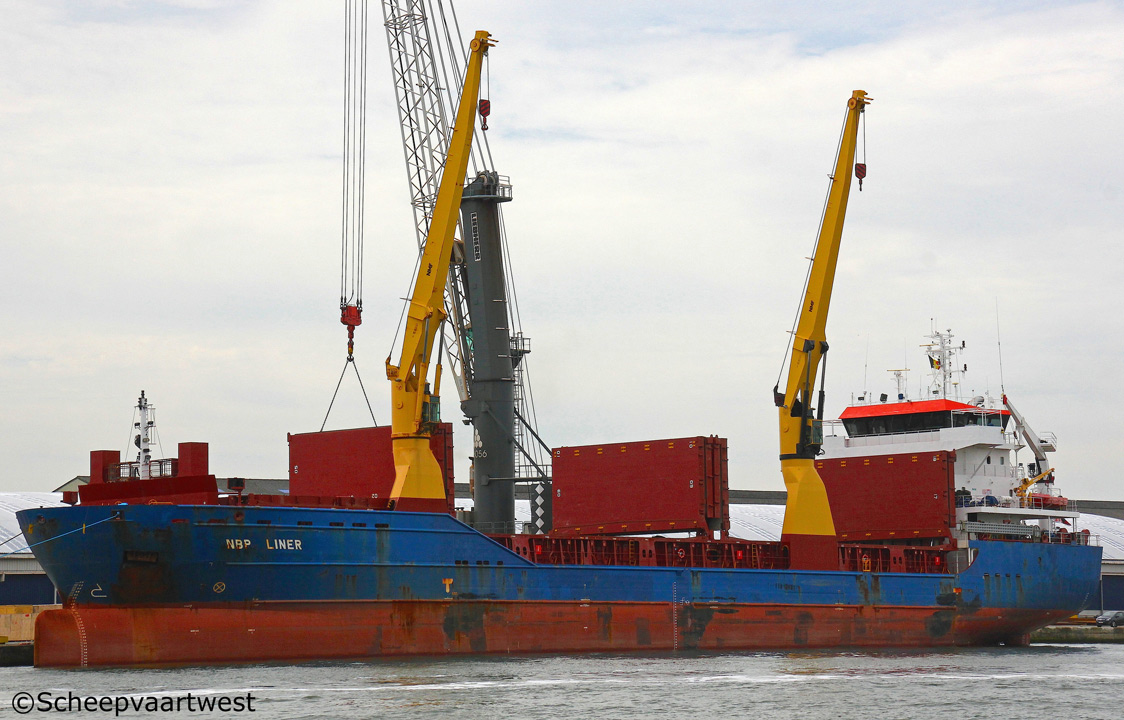

NBP LINER |
Previous names |
2011 - 02.2013 Baltic Liner |
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
IMO-number |
9505613 |
Call sign |
V2QM7 |
Flag |
Antigua & Barbuda |
Port of registry |
St. John’s |
GT |
6.668 t |
DWT |
Summer: 9.273,5 t |
NT |
3.625 t |
Number of 20ft containers |
132 |
Length |
107,00 m overall 103,00 m between perpendiculars |
Breadth |
18,42 m extreme 18,20 m moulded |
Draught |
8,00 m |
Depth |
10,50 m |
Speed |
Max.: 15,3 knots Service: 13,0 knots |
Built |
2011 |
Keel laid |
30.12.2008 |
Launch date |
06.01.2011 |
Date of completion |
02.12.2011 |
Builder |
Huatai Shipbuilding |
Yard number |
HT07-4-08 |
Hull material |
Steel |
Main engine |
1x MaK 8M32C - 4 strtoke 8 cylinder diesel engine 3.840 kW / 5.222 bhp Manufacturer: Caterpillar Motoren GmbH & Co., KG, Kiel - Germany |
Propellers |
1x Controllable pitch propeller |
Boilers |
1x Thermal oil heater, exhaust heated EXV4-50-34-57,0-600 1x Thermal oil heater, oil fired H4-0-TFO-005 |
Shaft generator |
1x 500 kW |
Generators |
2x MAN D2840LE301 main diesel generatorsets each 380 kW |
Emergency generator |
1x MAN D0824LE201 diesel generatorset 80 kW |
Bow thruster |
1x 450 kW |
Number of holds |
3 |
Cargo hold capacity |
11.770 m³ |
Tank capacities |
Ballast: 2.985,7 m³ |
Anchor equipment |
Length: 522,50 m Diameter: 46 mm |
Cargo gear |
2x NMF hydraulic cranes - SWL 60,0 t each |
Manager |
Liberty Blue Shipmanagement GmbH & Co. KG |
Registered owner |
NBP Liner Ltd. |
Latest data adjustment |
02 October 2017 |
