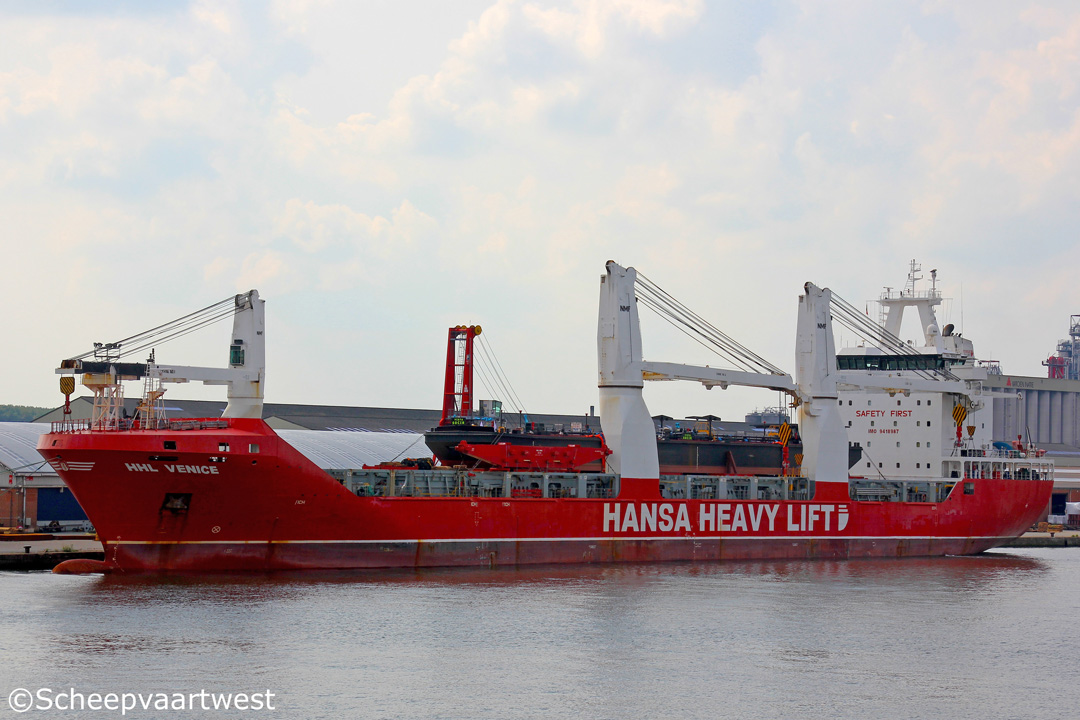

Antwerpen 03 September 2017 |
 |
|

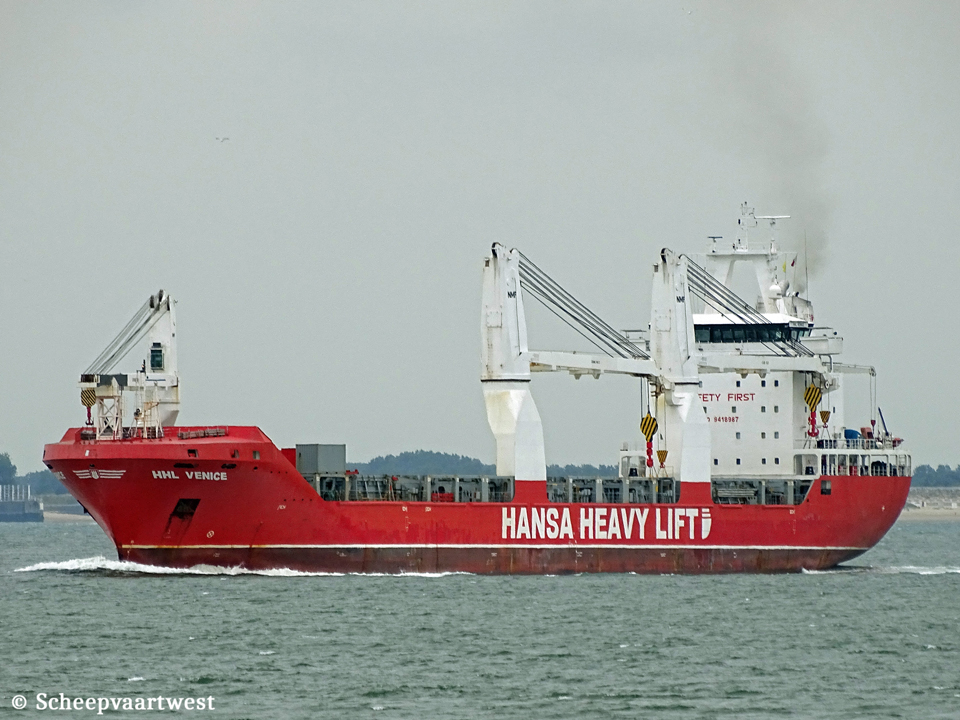

| Westerschelde 15/07/17 | |
|
Name |
HHL VENICE |
|
Previous names |
05/2010 Build as: Beluga Promotion 06/2010 - 08/2011 Bemuga Mumbai |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo and grab fitted |
|
IMO-number |
9418997 |
|
Call sign |
V2ET4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
15.377 |
|
DWT |
19.350 t on 9,80 m draught |
|
NT |
5.722 |
|
Number of 20ft containers |
On deck: 544 Under deck: 478 Total: 1.022 |
|
Reefer plugs |
100 |
|
Length |
166,25 m overall 157,96 m between perpendiculars |
|
Breadth |
22,90 m |
|
Draught |
9,80 m |
|
Air draft |
45,62 m from keel |
|
Freeboard |
4.118 mm |
|
Depth |
13,90 m moulded |
|
Speed |
Eco: 14,0 knots Max.: 17,5 knots |
|
Built |
2010 |
|
Keel laid |
06/10/2008 |
|
Launch date |
16/09/2009 |
|
Date of completion |
03/06/2010 |
|
Builder |
China Changjiang Shipping Group Qingshan Shipyard China |
|
Yard number |
QS20060306 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 7L58/64 CD - 7 cylinder 580 x 640 mm combustion engine Mcr 9/730 kW at 428 rpm |
|
Rudder |
1x Balanced flap type |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite Mission TM OC - 7,0 MPa Manufacturer: Aalborg Industries (Shanghai) Ltd. |
|
Shaft generator |
1x 1.550 kW |
|
Generators |
3x Caterpillar 3412 DITA main diesel generatorsets each 590 kW |
|
Emergency generator |
1x Caterpillar 3412 DITA diesel generatorset 450 kW |
|
Bow thruster |
1x 800 kW |
|
Number of holds |
2x Double skinned, boxshaped / narrow stepwise in container dimensions |
|
Cargo hold capacity |
Grain: Hold 1: 3.889 m³ / 137.336 ft³ Hold 2: 20.070 m³ / 708.752 ft³ Total: 23.959 m³ / 846.088 ft³ |
|
Hold ventilation |
6x Air-change per hour |
|
Number of hatches |
2 Hatch 1: 25,60 m (25,20 m opening) x 13,50 m (13,10 m opening) Hatch 2: 86,50 m (86,10 m opening) x 18,40 m (18,00 m opening) |
|
Hatch type cover |
Hydraulic folding type combinable with pontoons |
|
Tweendeck |
Hold 1: 25,20 x 13,10 m Hold 2: 86,10 x 18,00 / 13,10 m |
|
Lower hold |
Hold 1: 25,20 x 13,10 / 8,00 m Hold 2: 86,10 x 18,00 / 13,10 m |
|
Deck area |
Main deck: 1.786 m² Tween deck: 1.811 m² Weather deck: 1.937 m² Total: 5.534 m² |
|
Load distribution |
Tanktop: 18,0 t/m² Hatch covers: 5,0 t/m² Tween deck: 3,5 t/m² |
|
Tank capacities |
Fresh water: 192 m³ HFO: 1.570 m³ MGO: 235,55 m³ Lub oil: 85,79 m³ Ballast: 9.657,47 m³ |
|
Anchor equipment |
Length: 577,00 m Diameter: 60 mm |
|
Cargo gear |
2x Electric-hydraulic NMF cranes - SWL 400 t combinable up to 800 t 1x Electric-hydraulic NMF crane - SWL 120 t |
|
Lifting equipment |
1x Overhead gantry engine room crane - SWL 3,0 t |
|
Manager |
Hansa Heavy Lift GmbH Oberbaumbruecke 1 20457 Hamburg Germany |
|
Operator |
Hansa Heavy Lift |
|
Registered owner |
HHL Venice Shipping Ltd. |
|
Sister ships |
HHL Lisbon - IMO 9418975 |
|
Renamed |
12/2018 Treasury Three Marshall Islands, Majuro Manager: Marlow Navigation Ltd. 04/2019 Zea Golf Manager: Zeaborn GMHB & Co KG, Bremen - Germany Owner: ZEA P1-800.2 GMBH & CO KG Marshall Islands, Majuro 07/2020 Ocean Gladiator United States of America, New Orleans, LA - Call sign: KOGC Owner: Ocean Gladiator Shipping Trust, C/O Wilmington Trust Co. Manager: Seabulk Fleet Management Llc, Tampa Fl - USA |
|
Latest data adjustment |
10 February 2025 |
