Hav Skandic - IMO 8719114

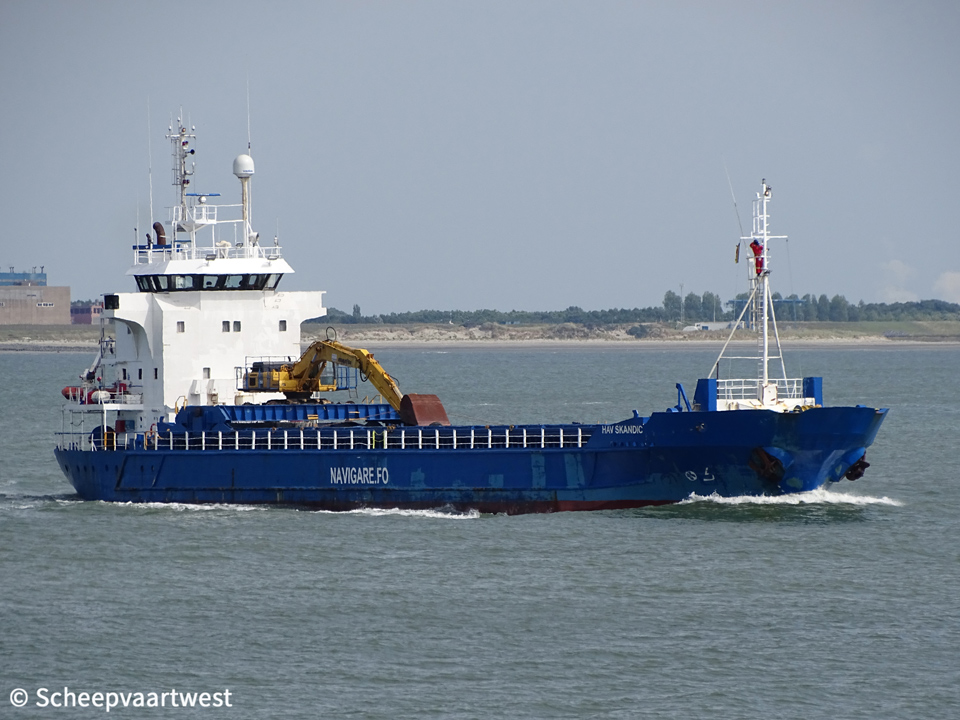

Westerschelde 08 August 2019

Name

HAV SKANDIC

Previous names

1993 - 09/2013 Sava Ocean

09/2013 - 2017 Sunna

Type

Multi-purpose dry cargo ship - Strengthened for heavy cargo

IMO-number

8719114

Call sign

OZ2147

Flag

Faroe Islands

Port of registry

Runavik

Previous flags

Latvia

Saint Vincent & grenadines

GT

2.026 t

DWT

Summer: 3.103 t

DWCC

2.900 t

NT

885 t

Length

74,65 m overall

69,10 m between perpendiculars

Breadth

12,70 m extreme

Draught

6,10 m fully laden

Air draft

20,10 m fully laden

Freeboard

2.211 mm

Depth

8,60 m

Speed

12,5 knots

Built

1993

Keel laid

31/10/1988

Launch date

01/01/1991

Date of completion

01/06/1993

Builder

Brodogradiliste "Tito" Sava Macvanska Mitrovica (DTSG Sava Shipyard)

Mitrovica

Serbia

Yard number

301

Hull material

Mild steel

Movable bulkheads

2x Movable for 3 compartments or 4 half for 5 compartments

Main engine

1x Bergen KRM-8 - 4 stroke 8 cylinder 250 x 300 mm diesel combustion 1.476 kW / 2.005 bhp at 750 rpm

Build: 02/01/1989

Builder: Bergen Diesel, Bergen - Norway

Propellers

1x Controllable pitch propeller

Shaft generators

1x 625 kVA - 500 kW

Generators

2x Scania DS 11 50 AZ6T main diesel generatorsets each 220 kVA - 176 kW - 260 hp

Emergency generator

1x Deutz 4L413FR diesel generatorset

Bow thruster

1x Ulstein 300 bhp

Number of holds

1x Fully boxed general cargo

47,00 x 10,20 x 8,20 m

Cargo hold capacity

3.685 m³ / 130.212 ft³

Number of hatches

1

47,00 x 10,20 m

Hatch type

MacGregor Navire hydraulic folding

Max. permitted loads

Tanktop: 12,0 t/m²

Tank capacities

Ballast: 1.122,2 m³

Fuel: 134,63 m³

Anchor equipment

Length: 440,00 m

Diameter: 36 mm

Excavator

1x Komatsu PC450

Built: 2007

Discharge: 250 t/h

Manager

Frakt og Sandsolan Sp/f (Frakt & Sand SP/F)

Owner

Navigare Logistics AS

Lasta 2

4400 Flekkefjord

Norway

Registered owner

Havnarnes Sp/f

Latest data adjustment

16 March 2020
