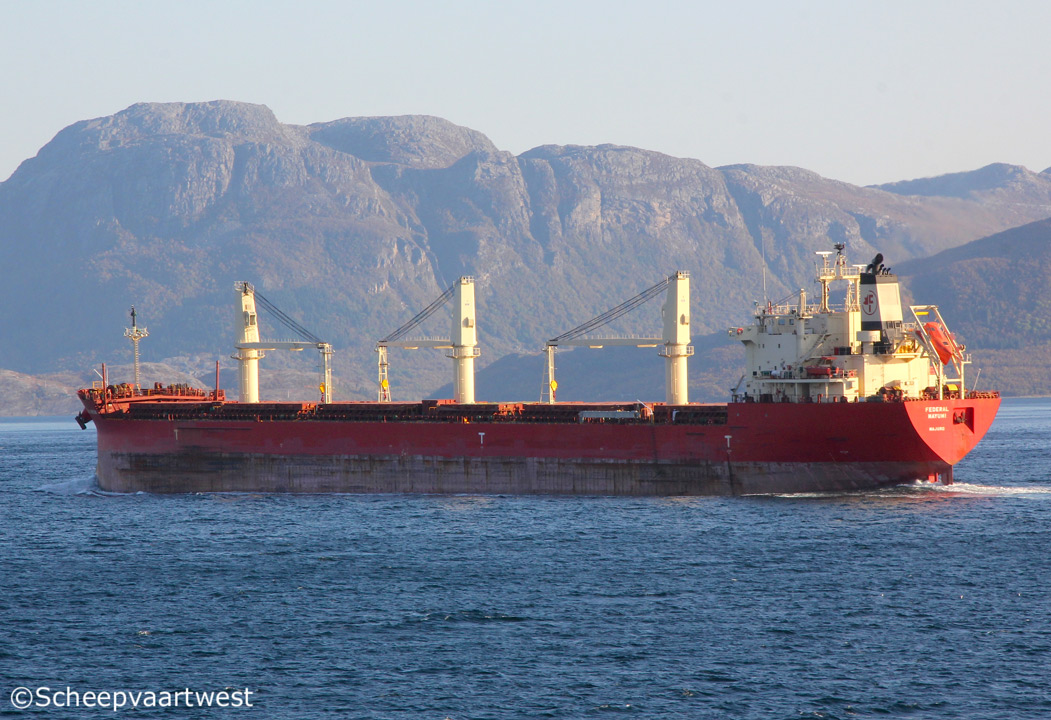

Vegafjorden, Norway 29 September 2017 |
 |
 |
 |
 |
|||

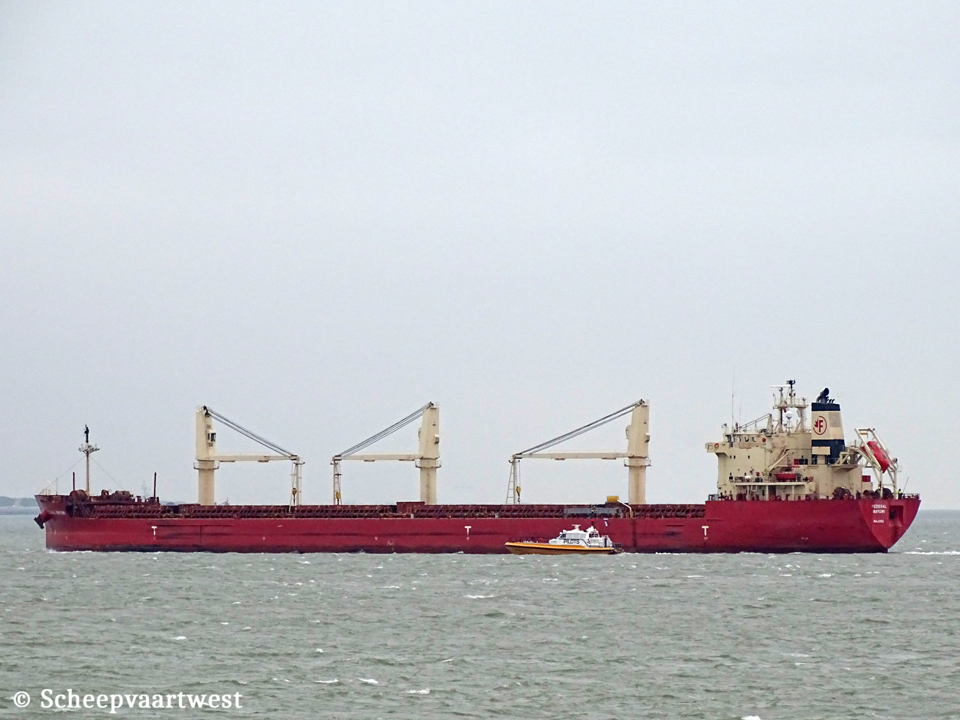

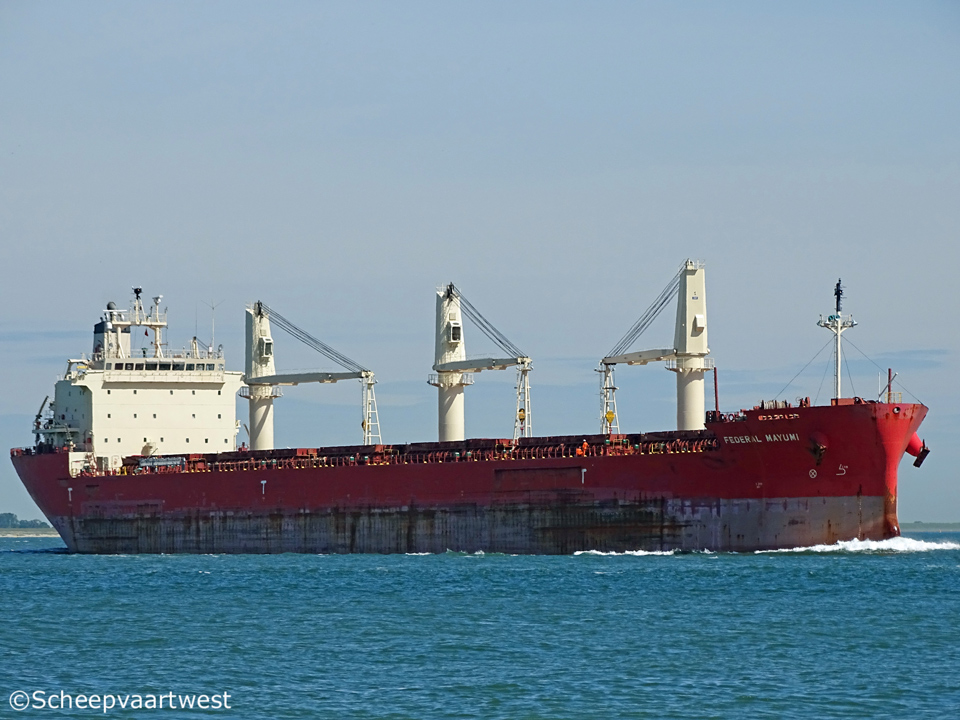

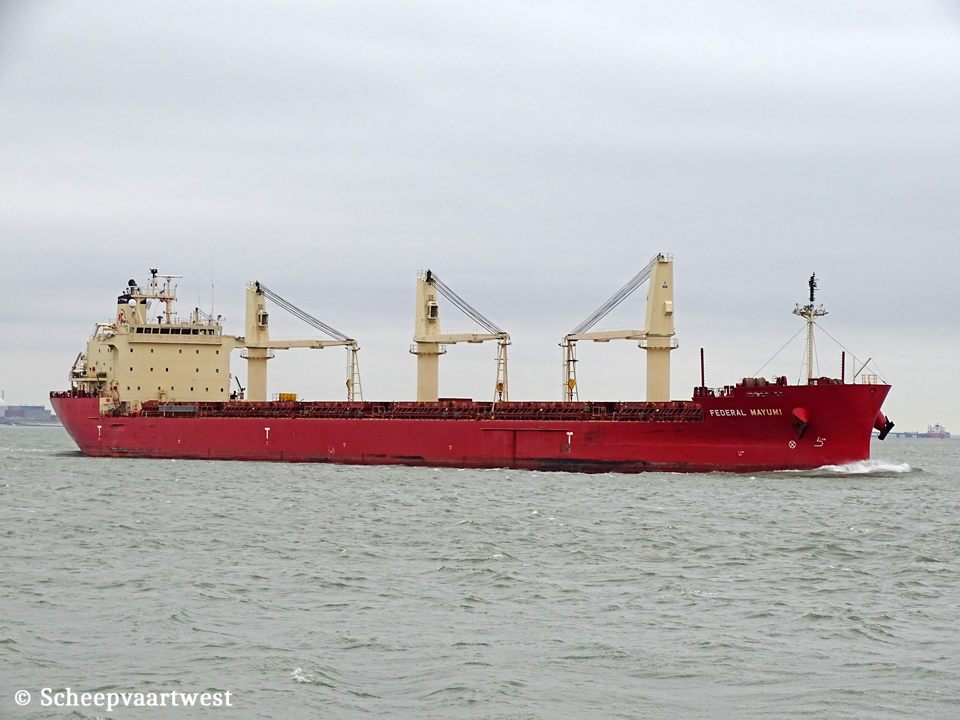

| Vegafjorden 29/09/17 | Westerschelde 24/05/17 | Westerschelde 30/01/20 | Westerschelde 30/01/20 |
|
Name |
FEDERAL MAYUMI |
|
Type |
Bulk carrier - Heavy solid bulk cargo carriage |
|
IMO-number |
9529578 |
|
Call sign |
V7YF2 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
20.465 t |
|
DWT |
Summer: 35.855 t Winter: 34.916 t |
|
NT |
12.136 t Panama: 17.077 t Suez: 19.782 t |
|
Length |
199,98 m overall 195,50 m between perpendiculars |
|
Breadth |
23,75 m extreme |
|
Draught |
Summer: 10,84 m Winter: 10,62 m |
|
Keel to mast end |
37,23 m |
|
Depth |
14,85 m |
|
Speed |
14,0 knots |
|
Built |
2012 |
|
Keel laid |
20/12/2011 |
|
Launch date |
25/08/2012 |
|
Date of completion |
02/10/2012 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10580 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW / 12.206 bhp at 129 rpm Builder: MAN Diesel & Turbo SE, Augsburg - Germany |
|
Propellers |
1x Nakashima fixed pitch propeller - 5 blades |
|
Boilers |
1x Auxiliary boiler, composite GCS-22ST Builder: Aalborg |
|
Generators |
3x Yanmar 6EY18 diesel generatorsets each 700 kW |
|
Emergency generator |
1x Deutz BF 6L 913 diesel generatorset 125 kW |
|
Bow thruster |
1x 825 kW |
|
Number of holds |
6 Hold 1: 27,30 x 6,00/19,90 m Hold 2: 27,00 x 19,90/19,90 m Hold 3: 27,00 x 19,90/19,90 m Hold 4: 21,60 x 19,90/19,90 m hold 5: 27,00 x 19,90/19,90 m Hold 6: 27,00 x 19,90/9,95 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 7.012 / 6.755 m³ Hold 2: 7.713 / 7.430 m³ Hold 3: 7.466 / 7.176 m³ Hold 4: 6.358 / 6.086 m³ Hold 5: 7.721 / 7.427 m³ Hold 6: 7.291 / 7.098 m³ Total: 46.561 / 41.972 m³ |
|
Max. permitted loads |
Tanktop Hold 1: 20,0 t/m² Hold 2: 20,0 t/m² Hold 3: 20,0 t/m² Hold 4: 24,2 t/m² Hold 5: 20,0 t/m² Hold 6: 20,9 t/m² |
|
Number of hatches |
6 |
|
Hatch cover type |
Folding hydraulic |
|
Tank capacities |
Fuel oil: 1.524 m³ Marine diesel oil: 403 m³ Ballast: 19.278 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
3x Electro hydraulic cranes - SWL 30,5 t each |
|
Commercial manager |
Fednav Ltd. Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
ISM manager |
Anglo-Eastern Ship Management Ltd. 17th Floor, Kingston International Centre, 19, Wang Chiu Road, Kowloon Bay, Kowloon Hong Kong China |
|
Registered owner |
Federal Oceans Ltd. Care of Fednav Ltd. Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Latest data adjustment |
22 July 2022 |
