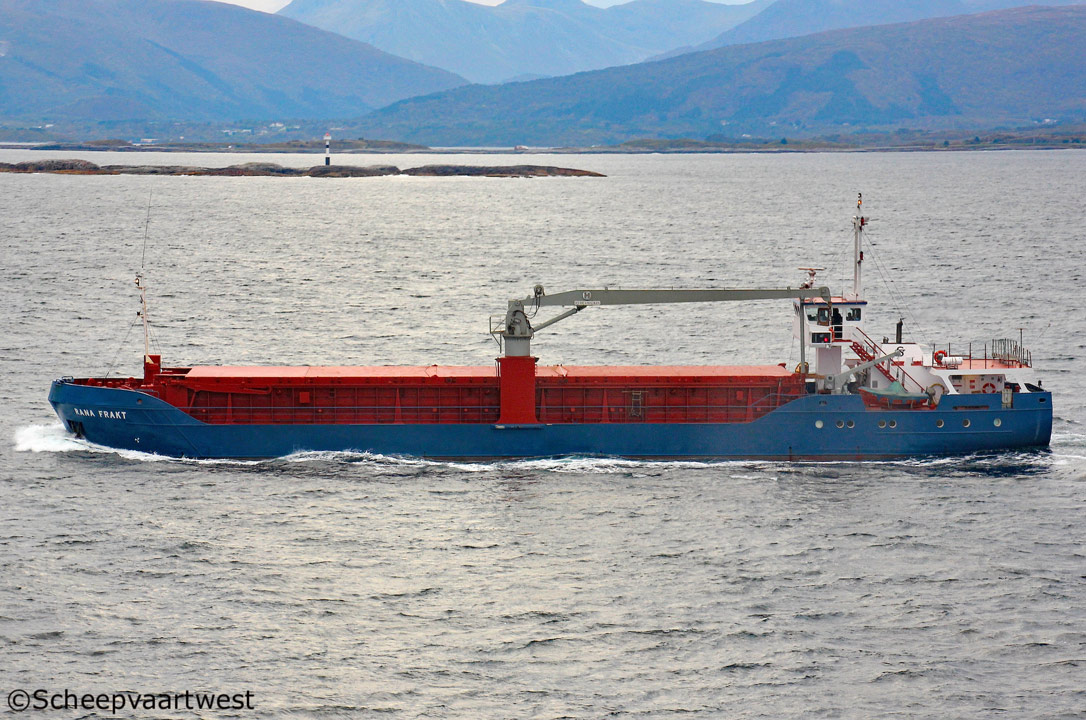

Hustadvikka, Norway 30 September 2017 |
|
Name |
RANA FRAKT |
|
Previous names |
1987 - 10/1997 Heyo Prahm |
|
Type |
General cargo ship |
|
IMO-number |
8616075 |
|
Call sign |
LIXX |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
1.156 t |
|
DWT |
Summer: 1.323 t |
|
NT |
346 t |
|
Length |
58,05 m overall 55,20 m between perpendiculars |
|
Breadth |
11,65 m extreme |
|
Draught |
3,53 m fully loaded |
|
Depth |
5,50 m |
|
Speed |
9,5 knots |
|
Built |
1987 |
|
Keel laid |
24/07/1986 |
|
Launch date |
09/05/1987 |
|
Date of completion |
01/06/1987 |
|
Builder |
Gebr. Kötter Schiffswerft-Sägewerk |
|
Yard number |
79 |
|
Hull material |
Steel |
|
Main engine |
1x MWM TBD 440-6 diesel engine 662 kW at 662 rpm Builder: Motor-Werke Mannheim AG, Mannheim - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
2x D 226-6 main diesel generatorsets |
|
Number of holds |
1 34,80 x 9,30 m |
|
Cargo hold capacity |
2.210 m³ |
|
Number of hatches |
1 34,80 x 9,30 m |
|
Tank capacities |
Ballast: 740 m³ |
|
Anchor equipment |
Length: 357,50 m Diameter: 24 mm |
|
Cargo gear |
1x Deck crane - SWL 6,0 t |
|
Manager |
K. Sætre og Sønner AS |
|
Registered owner |
Rana Frakt AS |
|
Latest data adjustment |
22 January 2018 |
