Westerschelde 29 July 2019 |
 |
 |
||
| Vlissingen 18/12/17 | Vlissingen 19/08/15 | ||
|
Name |

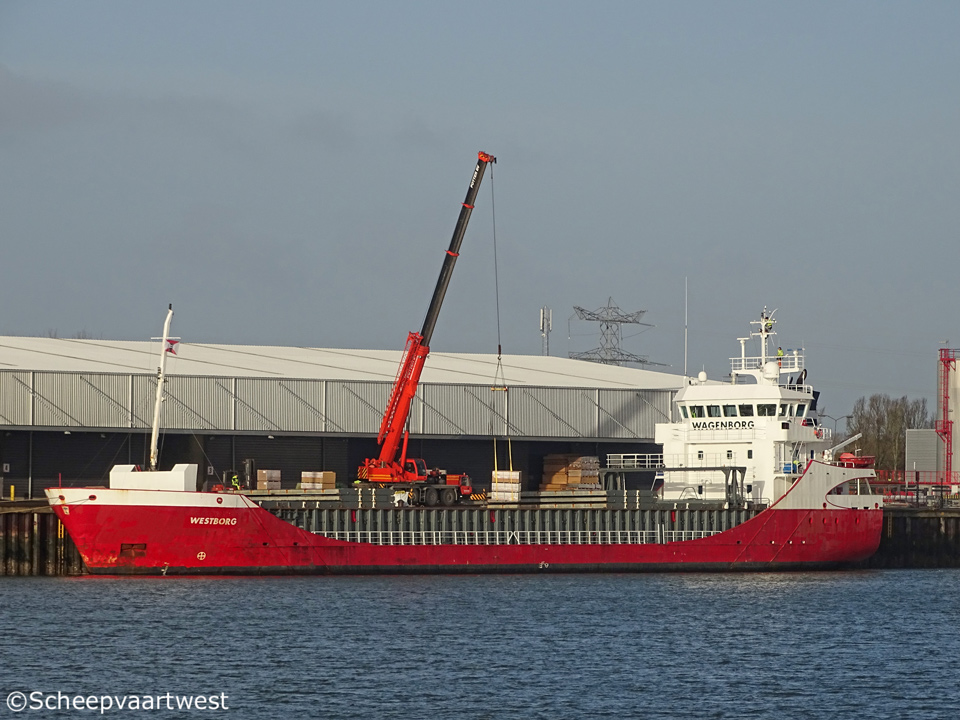

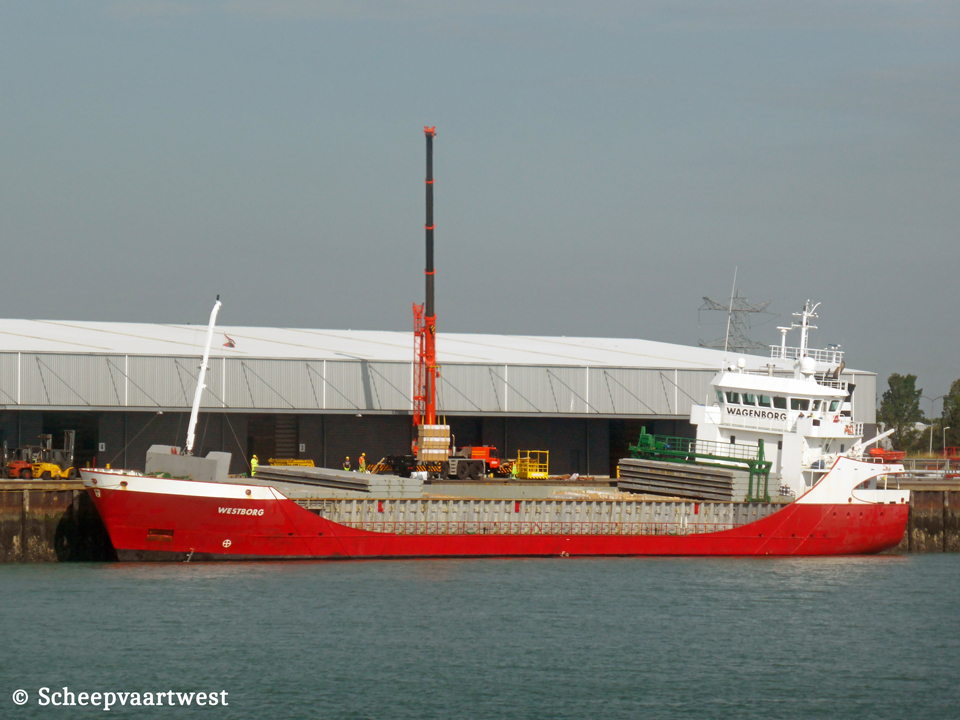

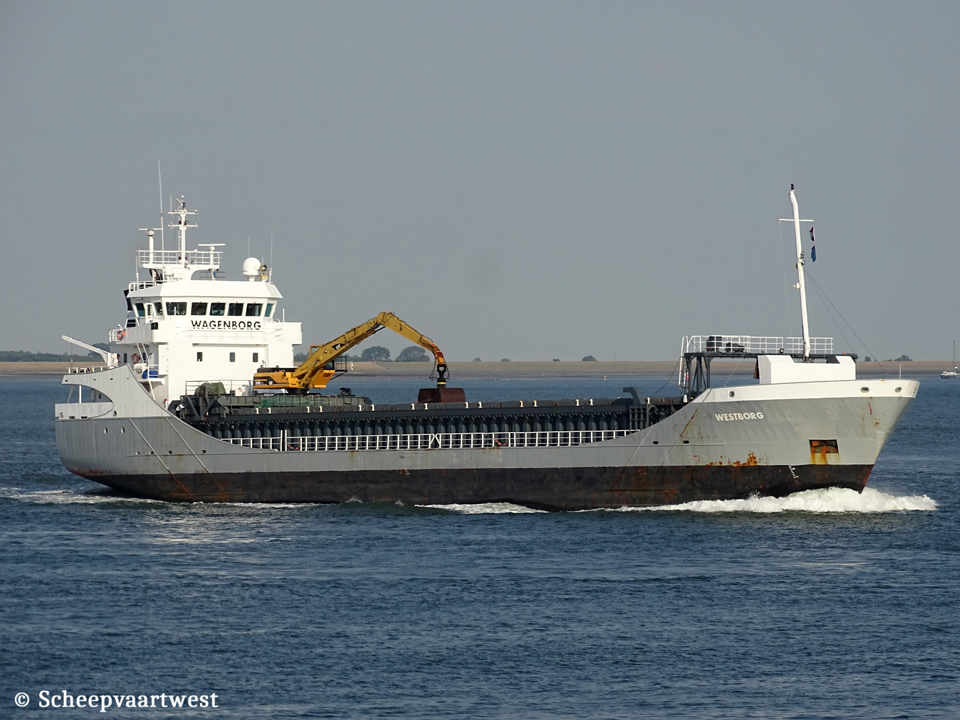

WESTBORG |
|
Previous names |
2000 - 01/2006 Sabinia 01/2006 - 04/2015 Westgard |
|
Type |
General cargo ship - Heavycargo - Container ship |
|
IMO-number |
9196187 |
|
Call sign |
PDBQ |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
2000 - 2006 The Netherlands, Farmsum - Call sign: PDBQ 2006 - 2015 The Netherlands, Rotterdam - Call sign: PDBQ |
|
GT |
2.868 t |
|
DWT |
Summer: 3.780 t |
|
DWCC |
Summer: 3.590 t |
|
NT |
1.613 t |
|
Number of 20ft containers |
In hold: 96 On deck: 88 Total: 184 |
|
Length |
89,25 m overall 84,60 m between perpendiculars |
|
Breadth |
13,40 m extreme |
|
Draught |
Summer: 5,67 m Winter: 5,55 m |
|
Air draft |
29,00 m in ballast |
|
Freeboard |
1.191 mm |
|
Depth |
7,15 m moulded |
|
Speed |
12,5 knots |
|
Built |
2000 |
|
Date of completion |
21/04/2000 |
|
Builder |
Scheepswerf Peters Kampen The Netherlands |
|
Yard number |
464 |
|
Hull material |
shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.800 kW / 2.445 hp at 750 rpm Built: 1999 Builder: MaK Motoren GmbH & Co. KG, Kiel - Germany |
|
Propelling system |
1x Lips screw propeller controllable pitch - aft at 217 rpm |
|
Electric installations |
Power Voltage: 400 V Lighting Voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 530 kVA - 424 kW |
|
Generators |
1x Sisu Diesel 612 DSBG main diesel generatorset 320 kVA - 256 kW - 428 hp |
|
Emergency generator |
1x Sisu Diesel 420 DSG diesel generatorset 77 kVA - 62 kW - 95 hp |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1x Box shaped 62,40 x 11,16 x 8,85 m |
|
Total capacity of holds |
Bale/grain: 5.833 m³ / 205.090 ft³ |
|
Hold ventilation |
Electrical hold ventilation abt. 6 air changes per hour basis empty hold |
|
Cargo hatchways |
11 1x 1,90 x 11,40 m 10 x 6,10 x 11,40 m |
|
Hatch type |
Coops & Nieborg pontoon hatches |
|
Tank capacities |
HFO: 295 m³ Water ballast: 1.515 m³ Fresh water: 40 m³ |
|
Anchor equipment |
3x Anchors weight each 1.920 kg Chain length: 440,00 m |
|
Crew size |
10 |
|
Manager |
Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Previous managers |
04/2004 - 02/2006 Flagship Management B.V., Farmsum - The Netherlands 02/2006 - 01/2015 Bore Shipowners B.V., Rotterdam - The Netherlands |
|
Owner |
Scheepvaartonderneming Westborg B.V. Care of Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Previous names & owners |
04/2000 - 07/2005 Sabinia - C.V. Scheepvaartonderneming Sabinia, Delfzijl - The Netherlands 07/2005 - 02/2006 Sabinia - Bror Husell Chartering AB, Mariehamn - Finland 02/2006 - 01/2015 Westgard - Scheepvaartonderneming Westborg B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
17 February 2023 |
