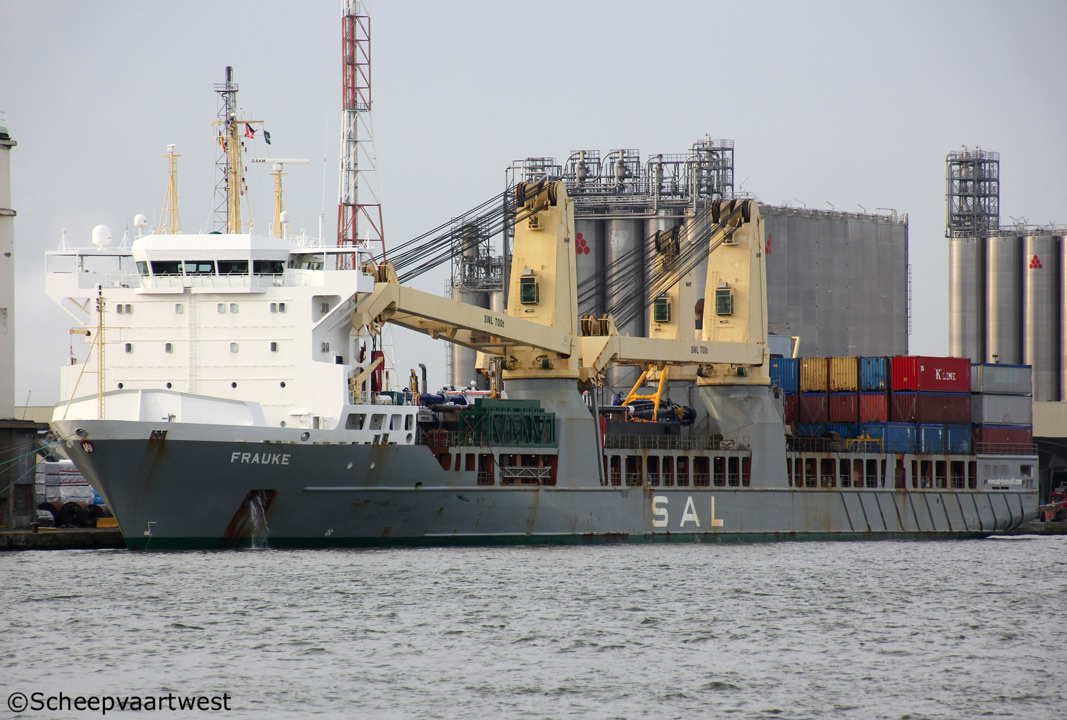

Antwerpen 02 January 2018 |
 |
|

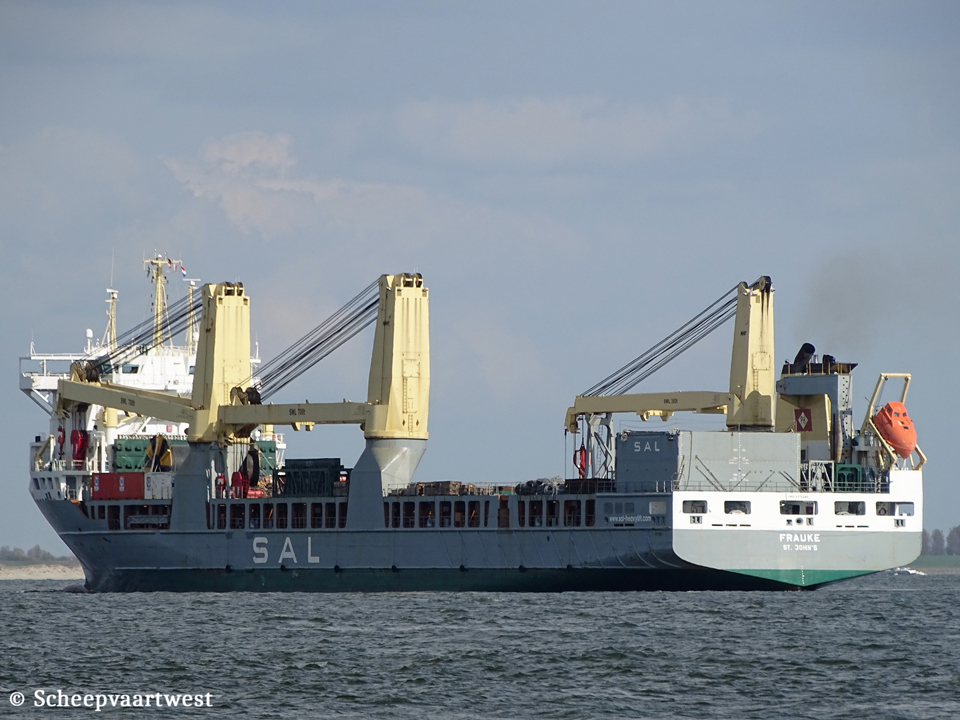

| Westerschelde 15/04/17 | |
|
Name |
FRAUKE |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9376488 |
|
Call sign |
V2DB9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
12.950 t Suez: 13.481 t |
|
DWT |
Summer: 12.007 t |
|
NT |
4.647 t Suez: 12.827 t Panama: 10.879 t |
|
Number of 20ft containers |
993 |
|
Length |
159,80 m overall 148,31 m between perpendiculars 150,22 m registered |
|
Breadth |
24,34 m extreme 24,00 m moulded |
|
Draught |
9,08 m |
|
Air draft |
40,50 m |
|
Forecastle |
23,10 m |
|
Freeboard |
Summer: 1.528 mm |
|
Depth |
13,20 m moulded |
|
Speed |
20,0 knots |
|
Built |
2008 |
|
Keel laid |
21/12/2006 |
|
Launch date |
08/12/2007 |
|
Date of completion |
26/02/2008 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1275 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
3 |
|
Main engine |
1x MAN 9L58/64 CD - 4 stroke 9 cylinder 580 x 640 mm combustion engine 12.600 kW / 17.131 hp at 428 rpm Year of manufacture: 2007 Manufacturer: MAN Diesel & Turbo SE Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 130 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 41,6 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 189,7 m² Year of manufacture: 2007 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH Justus-von-Liebig-Ring 4-6 25451 Quickborn Federal Republic of Germany |
|
Electric installations |
1x Plant 400 V - 700 kVA 2x Plants each 400 V - 1.300 kVA 1x Plant 400 V - 1.625 kVA 1x Plant 400 V - 250 kVA 2x Plants each 24 V - 135 Ah 2x Plants each 24 V - 155 Ah |
|
Shaft generator |
1x 1.625 kVA |
|
Generators |
2x Mitsubishi D49-A-MSM main diesel generatorsets each 1.300 kVA 1x Mitsubishi D30A-MS6 main diesel generatorset 700 kVA Builder: Mitsubishi Heavy Industries Europe, Ltd. |
|
Emergency generator |
1x MAN D2866LXE20 diesel generatorset 250 kVA |
|
Batteries |
2x Batteries for start emergency engine each 155 Ah |
|
Compressed air receivers |
2x Receivers each 1.250 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x Brunvoll transverse thruster 900 kW / 1.224 hp, forward |
|
Number of holds |
1 107,10 x 17,00 x 13,29 m |
|
Hold capacity |
Grain: 19.299 m³ Bale: 18.005 m³ |
|
Number of hatches |
1 |
|
Hatch cover |
MacGregor hydraulic operated combined folding type and lift and roll type |
|
Free deck space |
3.128 m² |
|
Tank capacities |
Water ballast: 6.948,63 m³ Gas oil: 224,04 m³ Fuel oil: 1.623,50 m³ Fresh water: 224,50 m³ |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Length: 577,50 m Diameter: 58 mm |
|
Cargo gear |
2x Cranes each SWL 700 t (in combination 1.400 t) 1x Crane - SWL 350 t Auxiliary hoist: 2x 60 t SWL 1x 40 t SWL |
|
Manager |
SAL Ship Management UG (haftungsbeschränkt) & Co. KG Brooktorkai 20 20457 Hamburg Germany |
|
Registered owner |
II. SAL Shipping UG (haftungsbeschränkt) & Co. KG MS "FRAUKE" |
|
Latest data adjustment |
18 July 2023 |
