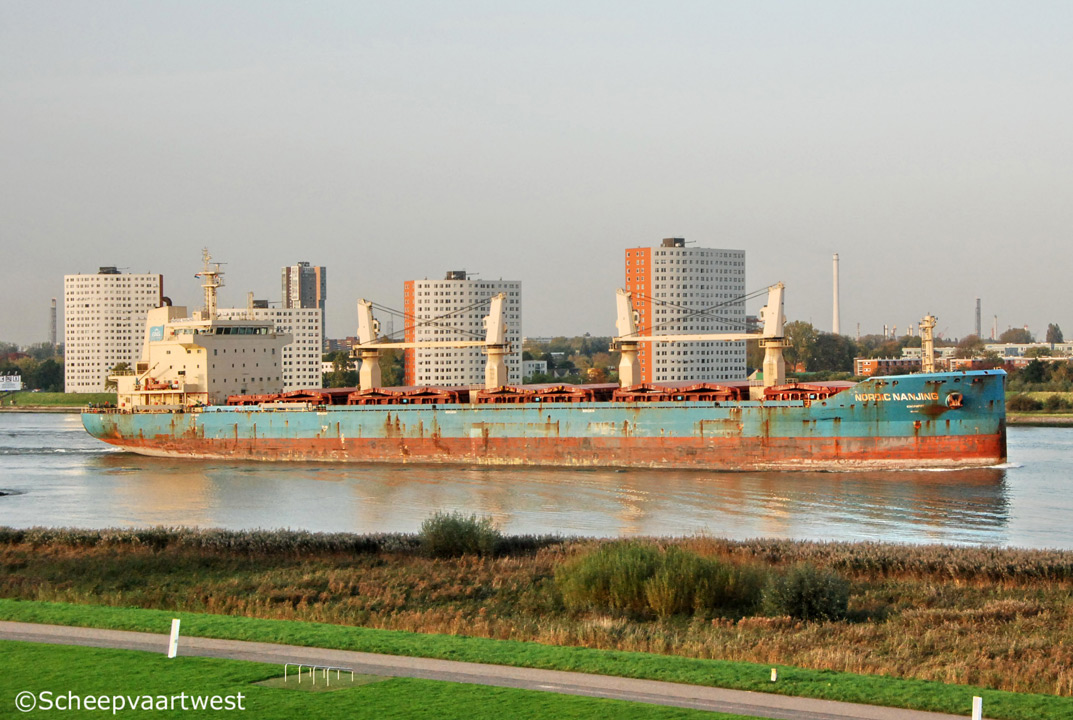

Spijkenisse, Oude Maas 16 October 2017 |
|
Name |
NORDIC NANJING |
|
Type |
Handysize bulk carrier - Carriage of dangerous goods |
|
IMO-number |
9647291 |
|
Call sign |
D5LX5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
06/2014 - 08/2016 Isle of Man, UK, Douglas - Call sign: 2GIQ7 |
|
GT |
24.187 t registered Suez: 25.311,85 t |
|
DWT |
Summer: 34.620 t |
|
NT |
11.602 t registered Suez: 21.823,65 t |
|
Length |
180,00 m overall 176,75 m between perpendiculars |
|
Breadth |
30,00 m moulded |
|
Draught |
10,10 m |
|
Freeboard |
4.630 mm |
|
Depth |
14,70 m moulded |
|
Speed |
15,0 knots |
|
Built |
2013 |
|
Keel laid |
30/12/2011 |
|
Launch date |
10/01/2013 |
|
Delivery date |
03/04/2013 |
|
Builder |
Yangzhou Guoyu Shipbuilding Co., Ltd. |
|
Yard number |
GY202 |
|
Hull material |
High strength steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä/Qingdao 5RT-flex50D - 2 stroke 5 cylinder 500 x 2.050 mm diesel engine 6.350 kW / 8.628 hp at 99 rpm Manufacturer: Linshan Marine Diesel C0.,Ltd. |
|
Propellers |
1x Screw propeller solid - aft at 99 rpm |
|
Boilers |
1x CHR Jiangyin - CHN 40,00 m² - 7,0 bar |
|
Generators |
3x MAN diesel generatorsets each 750 kVA - 600 kW - 883 hp |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 190 hp |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 45.654 m³ Grain: 46.732 m³ |
|
Number of hatches |
5 |
|
Number of tanks |
Ballast: 16 Lubricating oil: 11 Fuel oil: 10 Diesel oil: 6 Slop: 4 Fresh water4 Sludge: 3 Sewage: 2 Sea water: 2 Chain: 2 |
|
Tank capacities |
Diesel Oil: 215,2 m³ / 182,92 t Freshwater: 255,36 m³ Fuel Oil: 1.736,1 m³ / 1.649,29 t Lube Oil: 99,7 m³ / 89,73 t Tank Ballast:12.952,1 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Provision crane port - SWL 4,0 t Manufacture: Jiangyin Huasheng Marine Machine Co., Ltd. |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each Manufacture: Wuhan Marine Machinery Plant Co., Ltd. |
|
Crew size |
25 |
|
Manager |
Nordic Nanjing Schiffahrtsgesellschaft mbH & CO. K Cremon 32 20457 Hamburg Germany |
|
Registered owner |
Nordic Nanjing Schiffahrtsgesellschaft MBH & CO. K |
|
Latest data adjustment |
03 February 2018 |
