Antwerpen 30 January 2018 |
 |
| Antwerpen 30/01/18 |
|
Name |

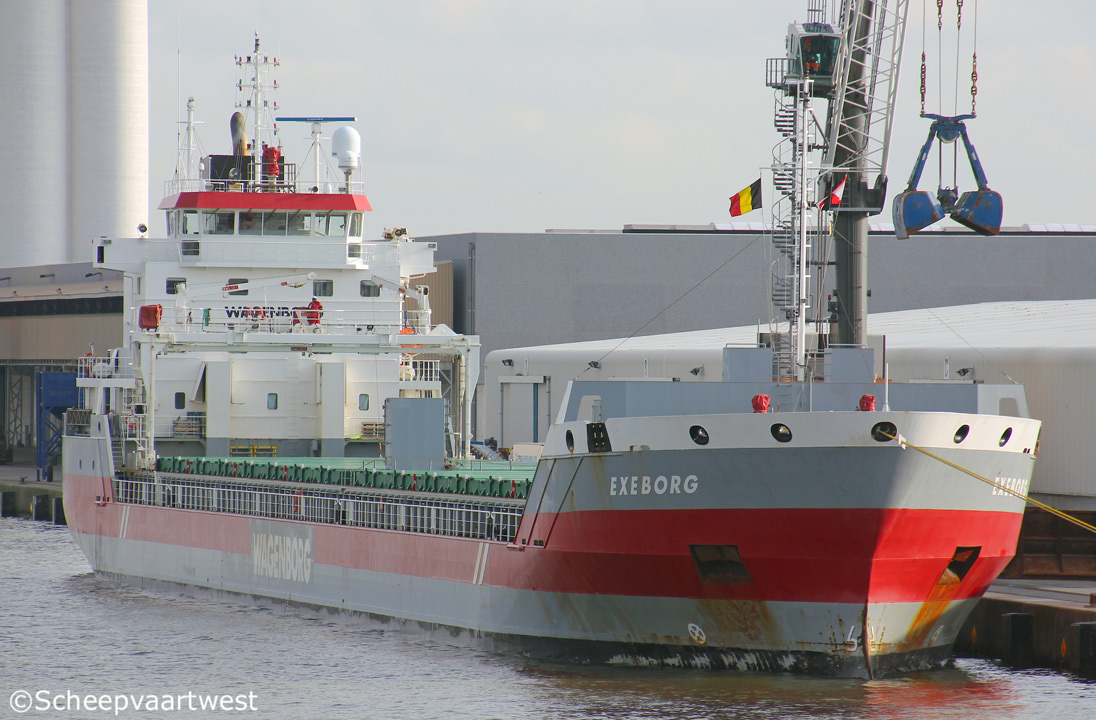

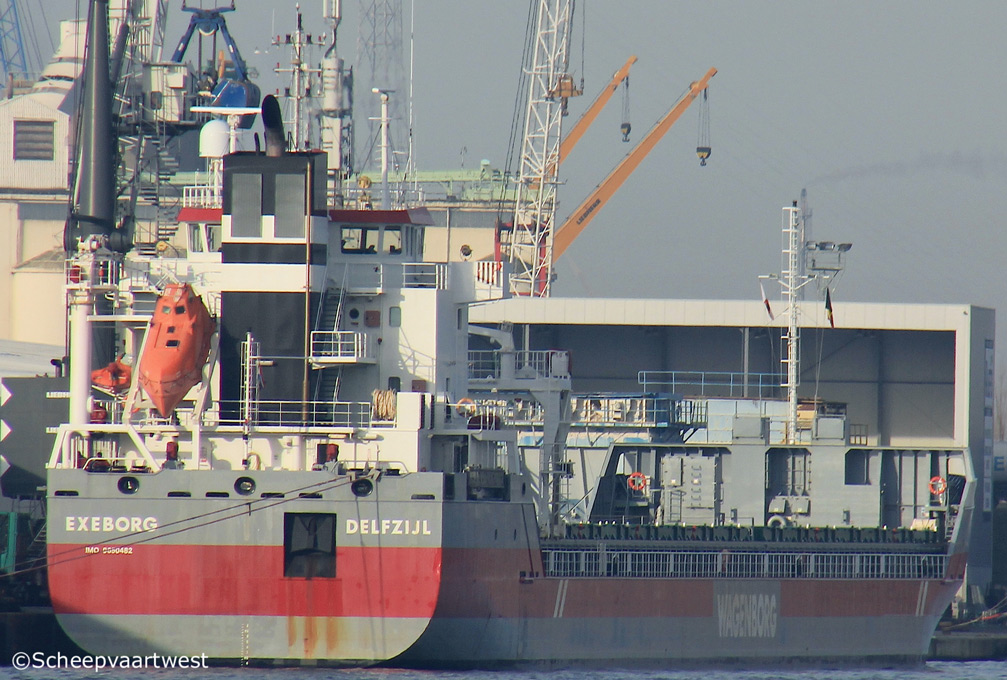

EXEBORG |
|
Type |
General cargo ship - Heavycargo - Occasional dry bulk cargo container ship |
|
IMO-number |
9650482 |
|
Call sign |
PCUD |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
7.680 t |
|
DWT |
Summer: 12.004 t |
|
DWCC |
Summer: 10.900 t |
|
NT |
3.846 t |
|
Length |
144,56 m overall 138,16 m between perpendiculars |
|
Breadth |
15,87 m |
|
Draught |
Summer: 8,00 m Winter: 7,85 m |
|
Air draft |
30,50 m in ballast |
|
Freeboard |
2.862 mm |
|
Depth |
11,15 m moulded |
|
Speed |
13,7 knots |
|
Built |
2013 |
|
Launch date |
17/05/2013 |
|
Date of completion |
19/07/2013 |
|
Builder |
Royal Niestern Sander BV |
|
Yard number |
846 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32C - 4 stroke single acting 8 cylinder 320 x 480 mm diesel engine 4.400 kW / 5.435 bhp at 750 rpm Built: 04/02/2013 Builder: Caterpillar MaK, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 146 rpm 4 blades - Diameter 4.200 mm |
|
Boilers |
1x CHO 26,20 m² - 10,0 bar |
|
Shaft generator |
1x 938 kVA - 750 kW |
|
Generators |
2x Main diesel generatorsets each 340 kVA - 272 kW - 380 hp |
|
Emergency generator |
1x Diesel generatorset 175 kVA - 140 kW - 198 hp |
|
Bow thruster |
1x 750 kW |
|
Number of holds |
2x Open hatch, double skinned Hold 1: 48,10 x 13,20 x 11,42 m Hold 2: 54,76 x 13,20 x 11,42 m |
|
Total capacity of holds |
8.280 m³ |
|
Hold ventilation |
12x Electrical air changes per hour basis empty holds |
|
Number of hatches |
2 Hatch 1: 48,10 x 13,20 m Hatch 2: 54,76 x 13,20 m |
|
Hatch type |
Coops & Nieborg pontoon hatches |
|
Tween decks
|
Vessel is equipped with 4 tween-decks, consisting of loose tween-deck pontoons. Tween-deck can be used as vertical bulkheads |
|
Max permitted loads |
Tanktop: 15,0 t/m² Tween deck: 3,5 t/m² Weather deck: 1,75 t/m |
|
Tank capacities |
HFO: 876 m³ MGO: 86 m³ Water ballast: 4.450 m³ Fresh water: 56 m³ |
|
Manager |
Wagenborg Shipping BV |
|
Registered owner |
Exeborg B.V. |
|
Latest data adjustment |
16 February 2018 |
