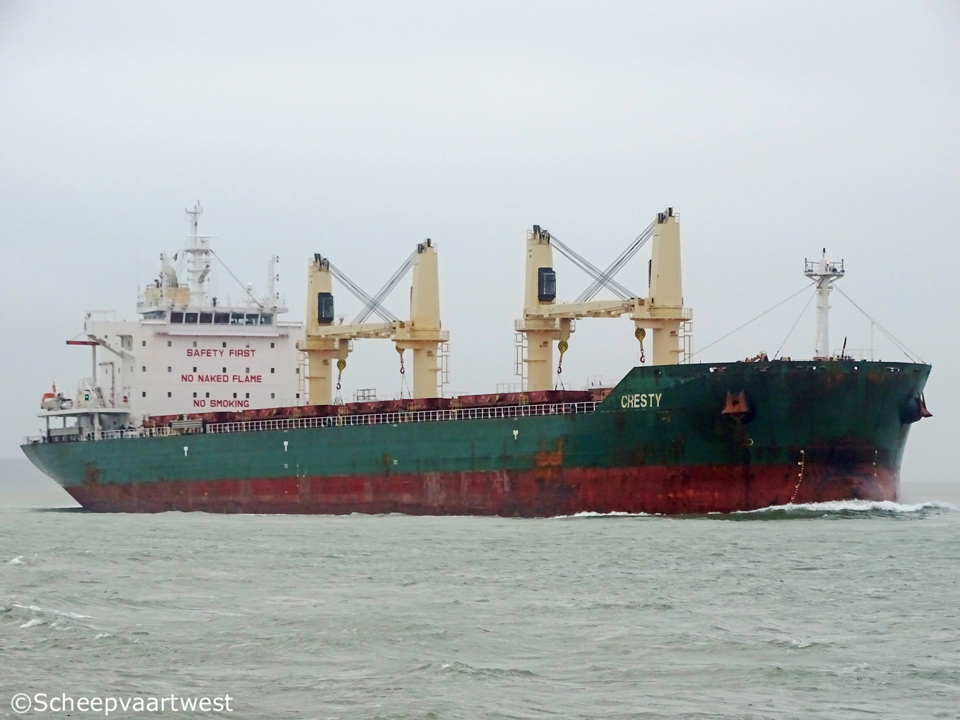

Cresty 01

Westerschelde 23 December 2017

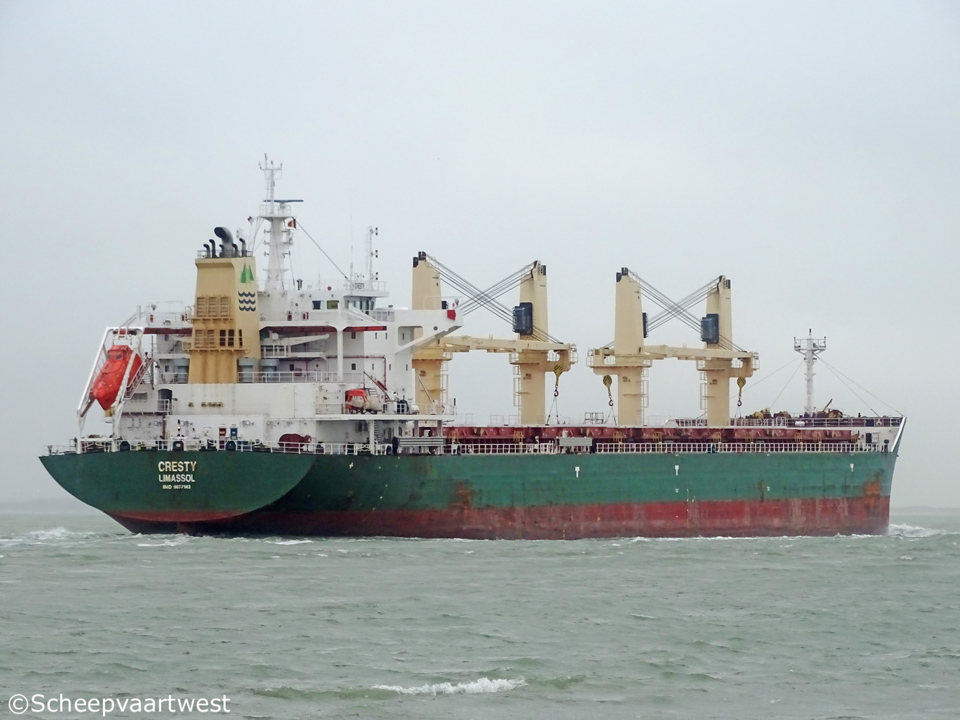

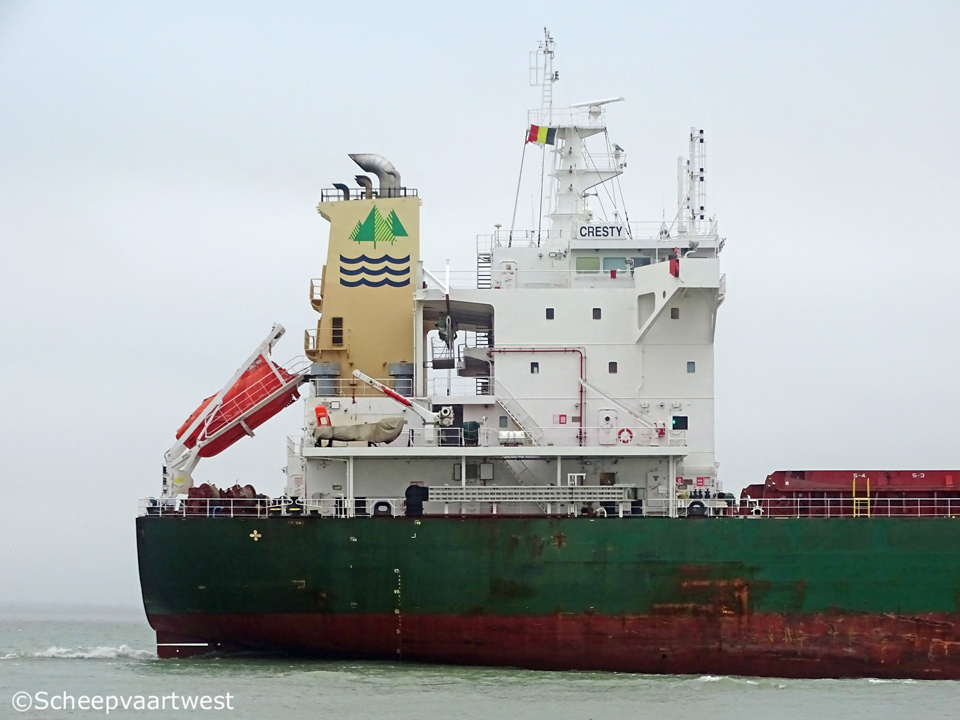

Cresty 03   Cresty 02   Cresty 04
Westerschelde 23/12/17 Westerschelde 23/12/17 Westerschelde 19/12/17



Name

CRESTY

Type

Bulk carrier - Handysize

IMO-number

9637143

Call sign

5BZE3

Flag

Cyprus

Port of registry

Limassol

GT

23.433 t

DWT

Summer: 35.977 t

NT

11.912 t

Length

179,92 m overall

175,00 m between perpendiculars

Breadth

30,05 m extreme

Draught

10,00 m

Air draft

35,00 m (Without holds flooded but fully ballasted)

Depth

14,60 m

Speed

14,0 knots

Built

2014

Keel laid

27/06/2013

Launch date

26/09/2013

Date of completion

05/05/2014

Builder

Yangfan Group Co., Ltd. (Zhejiang Yangfan)
Zhoushan
China

Yard number

H2237

Hull material

shipbuilding steel (standard)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN B&W 5S50ME-B8.2 TII - 2 stroke 5 cylinder 500 x 2.000 mm combustion engine 6.400 kW / at 108,0 rpm

Manufacturer: Hu Dong Heavy Machinery Co., Ltd.

Propellers

1x Solid propeller (keyless) - aft at 108,0 rpm

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar

Heating surface: 29,0 m²
Heating surface: 142,5 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 23,0 m²

Manufacturer: Greens Power Equipment (China) Co., Ltd.

Generators

3x Yanmar 6EY18ALW diesel generatorsets each 725 kVA

Emergency generator

1x Sisu diesel 634 DSBG diesel generatorset 150 kVA

Batteries

2x Batteries for automation each 200 Ah
2x Batteries for UPS navigation each 200 Ah

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar
1x Receiver 250 litres - 30,0 bar
1x Receiver 2000 litres - 7,0 bar
1x Receiver 250 litres - 7,0 bar
2x Receivers each 100 litres - 7,0 bar

Number of holds

5

Hold 1: 9,8 x 25,5 x 21,7 m
Hold 2: 25,5 x 21,7 m
Hold 3: 25,5 x 21,7 m
Hold 4: 25,5 x 21,7 m
Hold 5: 26,3 x 20,5 x 8,3 m

Cargo hold capacity

Hold capacity (grain / bale):
Hold 1: 8.246,1 / 7.916,3 m³
Hold 2: 10.262,9 / 9.852,4 m³
Hold 3: 10.273,7 / 9.862,8 m³
Hold 4: 10.273;7 / 9.862,8 m³
Hold 5: 9.433,0 / 9.055,7 m³
Total: 48.489,4 / 46.550,0 m³

Number of hatches

5

Hatch 1: 16,8 x 16,0 m
Hatch 2: 20,0 x 20,0 m
Hatch 3: 20,0 x 20,0 m
Hatch 4: 20,0 x 20,0 m
Hatch 5: 20,0 x 20,0 m

Hatch type

MacGregor high stowing & folding, operated by external hydraulic cylinders

Tank capacities

Ballast: 21.229,2 m³

Anchor equipment

3x Anchors weight each 7.350 kg

Length: 605,00 m

Diameter: 66 mm

Cargo gear

4x cranes - SWL 30,0 t each

Crew size

25

Manager

Navarone Marine Enterprise S.A.
6, Cheimaras str.
151 25, Amaroussion
Greece

Registered owner

Eudocia Maritime Ltd.

Latest data adjustment

20 February 2018
