Westerschelde 15 September 2019 |
 |
 |
|
| Westerschelde 12/12/18 | Westerschelde 07/08/16 |
|
Name |

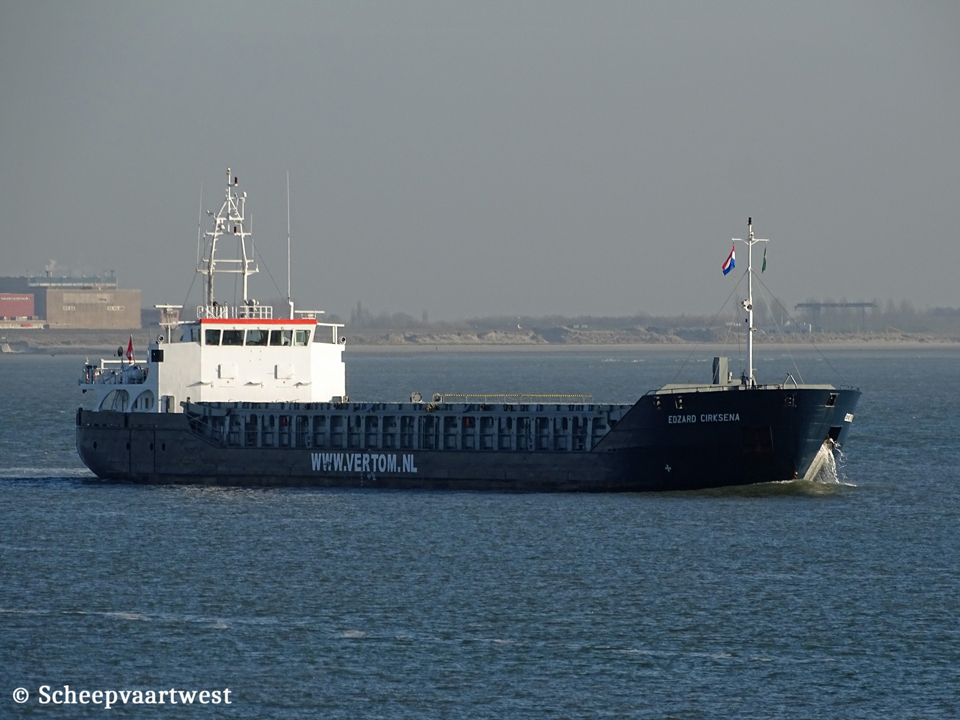

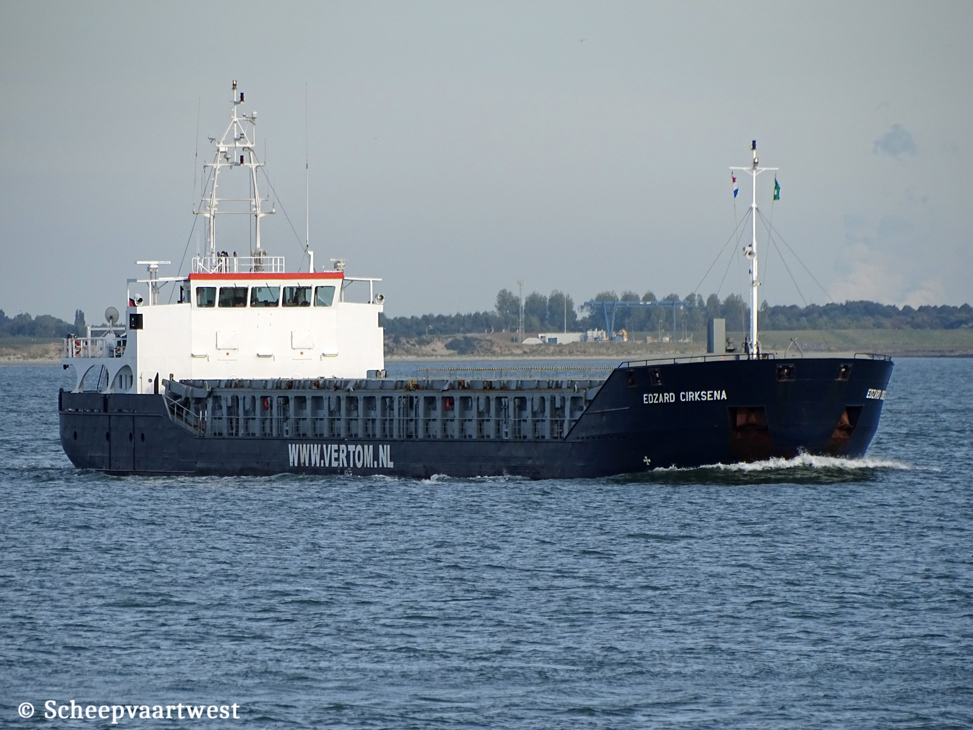

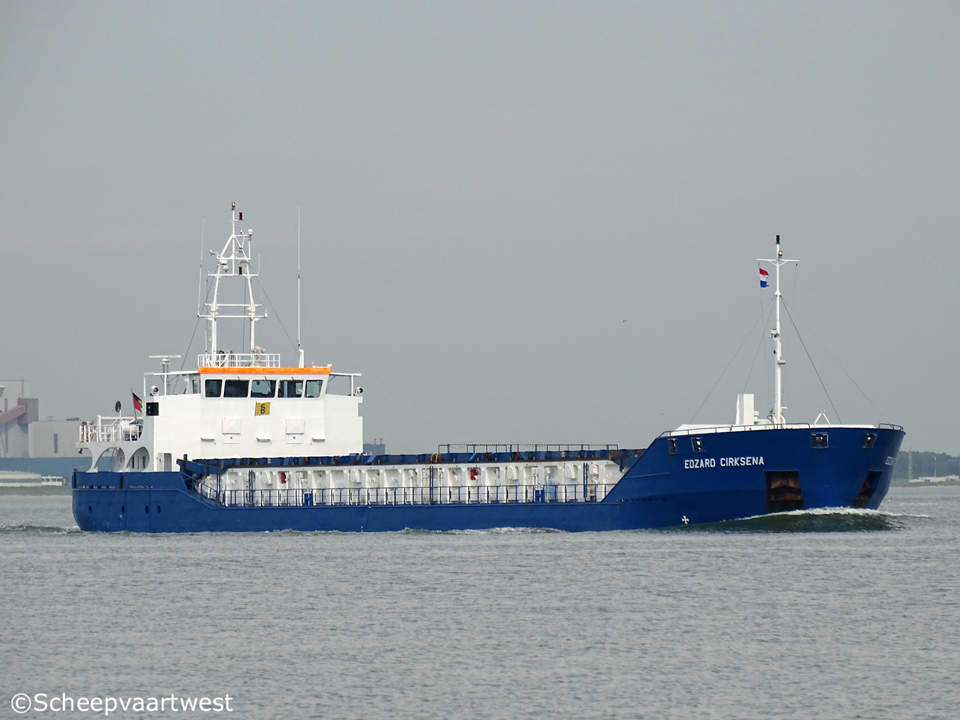

EDZARD CIRKSENA |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Gearless box singledecker |
|
IMO-number |
9375824 |
|
Call sign |
V2DE2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
2.451 t |
|
DWT |
3.637 t |
|
DWCC |
Summer 3.500 t pending on bunkers Winter: 3.400 t pending on bunkers |
|
NT |
1.033 t |
|
Number of 20ft containers |
108 20 only on hatch 2 |
|
Length |
88,30 m overall 85,29 m between perpendiculars |
|
Breadth |
12,50 m extreme 12,40 m moulded |
|
Draught |
Summer: 5,14 m Winter: 4,97 m |
|
Air draft |
23,64 m keel/mast 15,50 m keel/mast down |
|
Freeboard |
1.570 mm |
|
Depth |
6,70 m to main deck |
|
Speed |
Max 14,8 knots Service: 10,5 knots |
|
Built |
2008 |
|
Keel laid |
15/12/2004 |
|
Launch date |
20/12/2007 |
|
Date of completion |
28/02/2008 |
|
Builder |
Slovenske Lodenice Komarno a.s. Komarno Slovakia |
|
Yard number |
2107 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Movable bulkheads |
2x Grain bulkheads in 9 positions |
|
Number of decks |
1 |
|
Main engine |
1x Wärtsilä 6L20 - 4 stroke 6 cylinder 200 x 280 mm combustion engine Mcr 1.125 kW / 1.530 hp at 1.000 rpm Builder: Wärtsilä Finland Oy - Finland |
|
Propellers |
1x Fixed pitch propeller - aft at 256 rpm |
|
Shaft generator |
168 kW / 400 Volt |
|
Generators |
1x Sisu diesel 620 DSBIG - 4 stroke 6 cylinder 108 x 120 mm diesel engine Mcr 150 kW connected with generator 92 kW / 400 Volt 1x Sisu diesel 645 DSBIG - 4 stroke 6 cylinder 111 x 145 mm diesel engine Mcr 200 kW connected with generator 96 kW / 400 Volt |
|
Emergency generator |
1x Sisu diesel 420 DSRG diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 130 kW / 177 bhp, forward |
|
Number of holds |
2 Hold 1: 25,20 x 10,10 x 7,77 m Hold 2: 31,75 x 10,10 x 7,77 m |
|
Cargo hold capacity |
Grain: 159.444 ft³ / 4.514 m³ |
|
Hold ventilation |
4x Air changes/h |
|
Number of hatches |
2 Hatch 1: 25,20 x 10,10 m Hatch 2: 31,75 x 10,10 m |
|
Hatch cover type |
Mc Gregor folding type |
|
Max permitted loads |
Tanktop: 15 t/m² Hatch covers: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.502,8 m³ |
|
Anchor equipment |
Length: 412,50 m Diameter: 30 mm |
|
Crew size |
8 |
|
Manager |
Vertom-Bojen Bereederungs GmbH & Co. KG Borgwardring 80 26802 Moormerland Germany |
|
Registered owner |
Vertom-Bojen Schiffahrts MS "EDZARD CIRKSENA" GmbH & Co. KG |
|
Latest data adjustment |
17 December 2021 |
