Fitburg - IMO 9250397

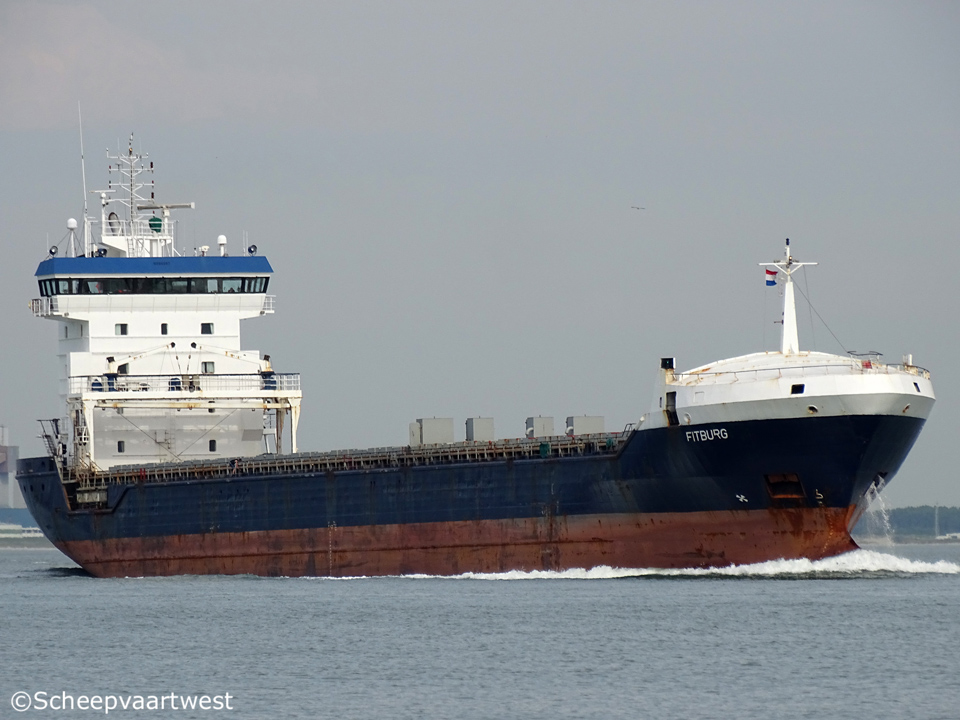

Westerschelde 07 June 2016

Name

FITBURG

Previous names

2001 built as: Finex

12/2001 - 02/2006 Volmeborg

02/2006 - 05/2014 Finex

Type

General cargo ship - Heavycargo - Equipped for carriage of containers

IMO-number

9250397

Call sign

V4AF3

Flag

Saint Kitts & Nevis

Port of registry

Bassterre

Previous flags

2002 - 2014 Germany

GT

6.130 t

DWT

Summer: 9.857 t

NT

3.424 t

Number of 20ft containers

In Hold: 264
On deck:288
Total: 552

Reefer capacity

50

Length

132,23 m overall

123,84 m between perpendiculars

Breadth

15,87 m

Draught

7,73 m

Freeboard

1.927 mm

Depth

9,65 m to main deck

Speed

15,0 knots

Built

2001

Delivery date

01/02/2002

Builder casco

Daewoo Mangalia Heavy Industries
Mangalia
Romania

Builder completion

Bodewes Scheepswerf Volharding Foxhol B.V.
Foxhol
The Netherlands

Yard number

504

Hull material

Shipbuilding steel (higher tensile)

Hull type

Partly double bottom

Watertight compartments

6

Movable bulkheads

2x Moveable bulkheads, 8 store positions

Continuous decks

2

Main engine

1x Wärtsilä 6L38B - 4 stroke 6 cylinder 380 x 475 mm diesel engine 4.199 kW / 5.630 hp at 600 rpm

Builder: Wärtsilä NSD Nederland B.V

Propellers

1x Screw propeller controllable pitch - aft at 150 rpm

Boilers

1x Thermal oil heater, oil fired - 13,0 bar
Heating surface: 17,5 m²
1x Thermal oil heater, exhaust gas heated - 13,0 bar
Heating surface: 55,0 m²

Electric installations

2x Plant 440/220 V - 244 kVA
1x Plant 440 V - 813 kVA
1x Plant 440 V - 50 kVA

Shaft generator

1x 813 kVA - 648 kW

Generators

2x Main diesel generatorsets each 305 kVA - 244 kW - 408 hp

Emergency generator

1x Diesel generatorset 87 kVA - 70 kW - 109 hp

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 500 kW, forward

Number of holds

2

Hold 1: 39,96 x 13,20 x 10,84 m

Hold 2: 52,54 x 13,20 x 10,84 m

Total capacity of holds

12.814 m³ / 452.522 ft³

Number of hatches

2

Hatch 1: 39,96 x 13,20 m

Hatch 2: 52,54 x 13,20 m

Hatch type

Steel hatch covers pontoon type with handling crane

Max permitted loads

Tanktop: 15,0 t/m²

Hatch cover: 1,75 t/m²

Tank capacities

Fuel oil: 465 m³

Water ballast: 3.718 m³

Anchor equipment

3x Anchors weight each 3.300 kg
Chain length: 495,00 m

Crew size

12

Operator

Albros Shipping and Trading
Adnan Saygun Cad. Canan Sok. Rifat Bey Apt.
No:4 Daire:5 1.Ulus
Istanbul
Turkey

Registered owner

Fitburg Shipping Company Ltd.

Latest data adjustment

04 March 2018
