Antwerpen 16 August 2017 |
|
Name |

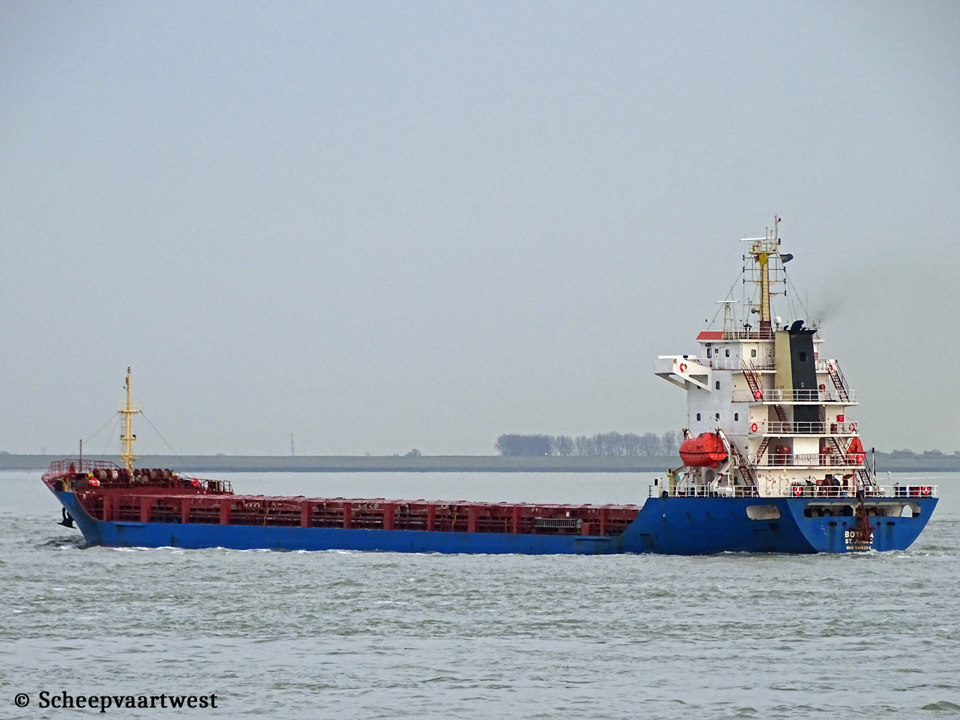

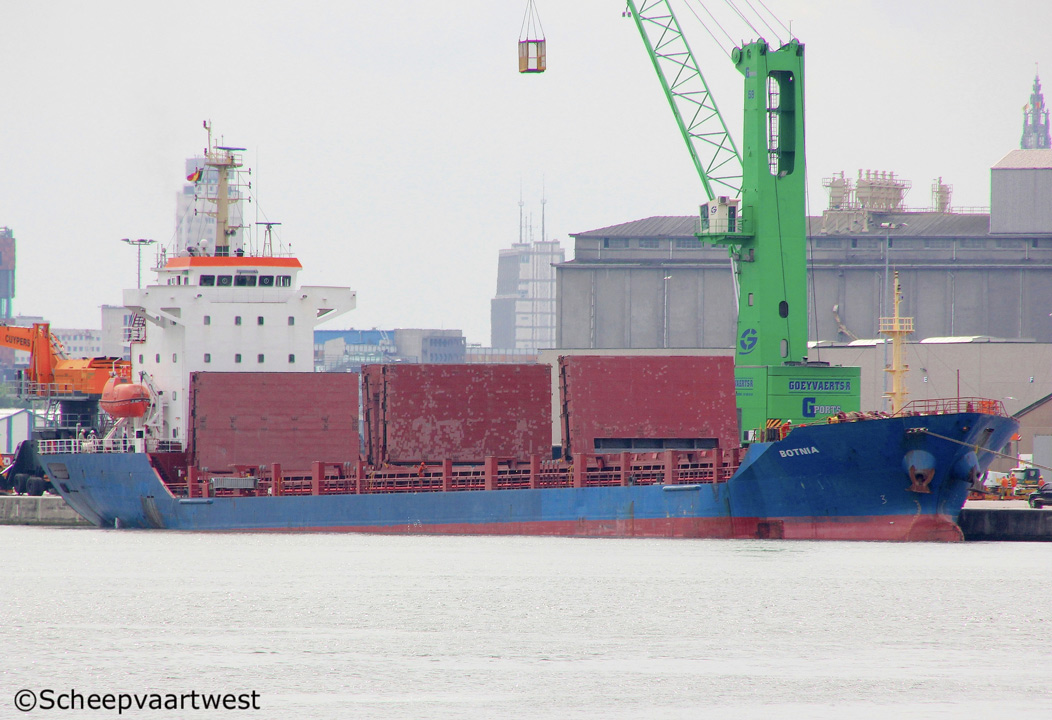

BOTNIA |
|
Previous names |
2008 - 12/2009 Lehmann Timber |
|
Type |
General dry cargo ship |
|
IMO-number |
9418286 |
|
Call sign |
V2EP3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
2009 - 2009 Gibraltar |
|
GT |
5.285 t |
|
DWT |
7.702 t |
|
DWCC |
Summer: 7.400 t Winter: 7.250 t |
|
NT |
3.185 t |
|
Number of 20ft containers |
In hold; 176 On deck: 306 Total: 482 |
|
Container capacity 14t |
320 |
|
Length |
121,80 m overall 113,50 m between perpendiculars |
|
Breadth |
17,58 m |
|
Draught |
Max: 6,25 m Draft in ballast: fore 2,90 m / aft 4,40 m |
|
Air draft |
32,00 m in ballast |
|
Depth |
8,30 m moulded |
|
Speed |
Service: 12,5 knots |
|
Built |
2008 |
|
Builder |
Linhai Jianghai Shipbuilding Co. Ltd. |
|
Yard number |
14 |
|
Hull material |
Steel |
|
Main engine |
1x Pielstick-Shaanxi Diesel 6PC2-5L - 4 stroke 6 cylinder diesel engine 2.868 kW / 3.899 bhp |
|
Propellers |
1x Fixed propeller |
|
Generators |
2x Main diesel generatorsets each 235 kW |
|
Number of holds |
3 Hold 1: 29,80 x 15,60 x 9,04 m ~ 129.322 ft³ Hold 2: 27,00 x 15,60 x 9,04 m ~ 131.459 ft³ Hold 3: 27,00 x 15,60 x 9,40 m ~ 121.094 ft³ |
|
Cargo hold capacity |
Bale/Grain: 10.642 m³ |
|
Number of hatches |
3 Hatch 1-2-3: 25,52 x 12,85 m each |
|
Hatch covers type |
Mc Gregor, hydraulic folding type |
|
Max permitted loads |
Tanktop: 14,0 t/m² Hatch covers: 6,0 t/m² |
|
Manager |
Vitorio Shipping |
|
Owner |
Vitorio Shipping |
|
Latest data adjustment |
09 March 2018 |
