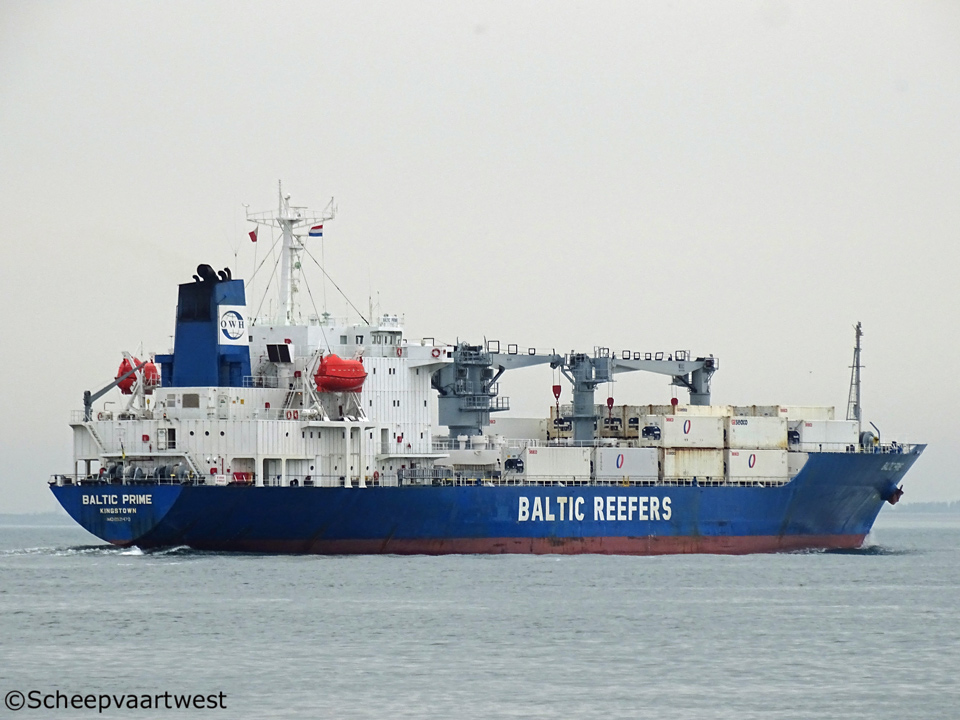

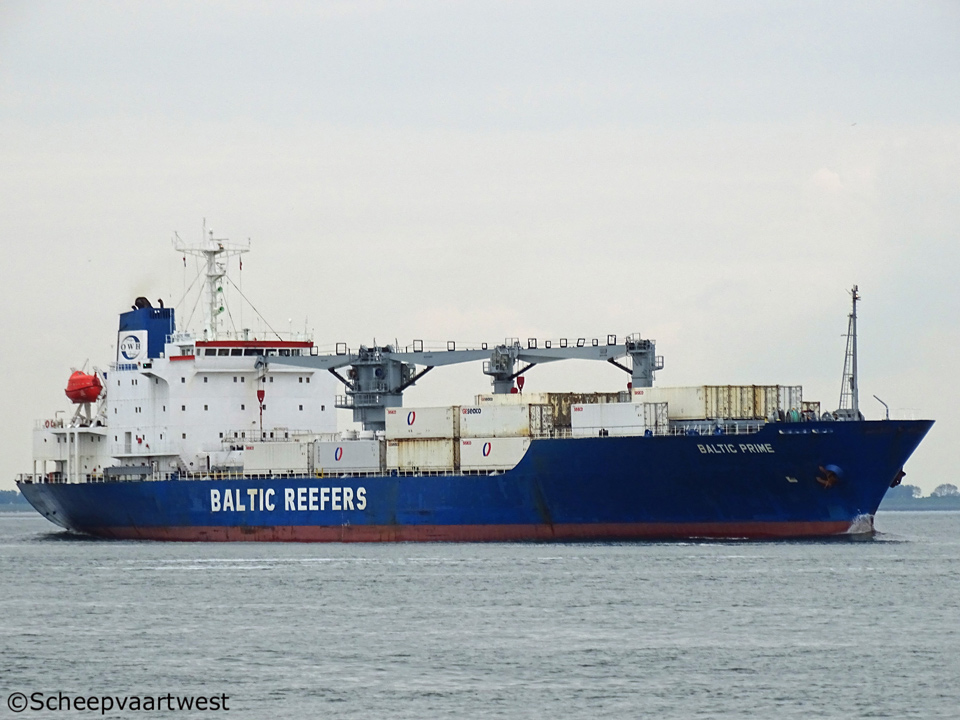

Westerschelde 31 May 2016 |
Westerschelde 31/05/16 |
Name |
BALTIC PRIME |
Previous names |
1990 - 03/2001 Ivory Cape 03/2001 - 11/2003 Ivory Nina 11/2003 - 10/2012 Condor Bay 10/2012 - 11/2017 Baltic Prime |
Type |
Refrigerated cargo ship |
Subtype |
Refrigerated cargo ship, Container facility |
IMO-number |
8921470 |
Call sign |
J8B4761 |
Flag |
Saint Vincent & Grenadines |
Port of registry |
Kingstown |
GT |
10.405 t registered Suez: 11.027 t Panama: 11.368 t |
DWT |
10.742 t |
NT |
5.253 t registered Suez: 8.451,35 t Panama: 8.705 t |
Displacement |
16.958 t |
Number of 20ft containers |
162 |
Reefer capacity |
51 reefer sockets on deck |
Length |
150,01 m overall 142,13 m between perpendiculars |
Breadth |
22,50 m moulded |
Draught |
9,06 m moulded |
Depth |
13,20 m moulded |
Service |
Max: 23,0 knots Service: 21,0 knots |
Built |
1990 |
Launch date |
11/08/1990 |
Date of completion |
27/11/1990 |
Builder |
Shikoku Dockyard |
Yard number |
858 |
Hull material |
Steel |
Main engine |
1x B&W-Mitsui 6S60MC - 6 cylinder diesel engine 13.731 bhp / 10.101 kW Built: 1989 Japan |
Propellers |
1x Fixed pitched propeller with detachable blades |
Generators |
4x Main diesel generatorsets each 750 kW |
Number of holds |
4 |
Cargo hold capacity |
Total: 576,003 ft³ |
Ventilation |
90x Air circulation per/hour 2x Air renewals p/h |
Number of hatches |
4 |
Temperature compartments/Zones |
15/8 |
Cargo temperature |
+12 / -25°C |
Cargo spaces surface |
Total: 5.911 m² |
Tank capacities |
Fuel oil: 2.105 t Water ballast: 1.521 m³ |
Cargo gear |
2x Electric cranes - SWL 8,0 t each 2x Electric cranes - SWL 18,0 t each 1x Crane - SWL 1,0 t |
Crew |
20 |
Manager |
FML Shipmanagement |
Operator |
Baltic Reefers |
Owner |
Ost West Handel & Schiffahrt |
Renamed |
Ming Hang 5 Owner: Minghang International Shipping Co, Limited |
Latest data adjustment |
10 March 2018 |
