Westerschelde 03 March 2018 |
|
Name |

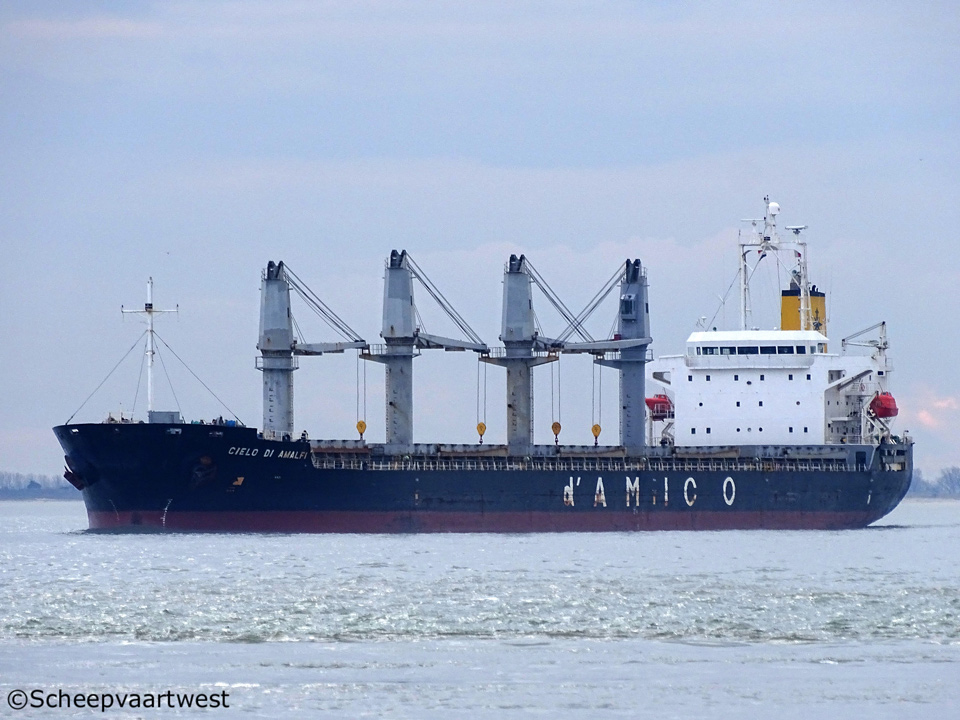

CIELO DI AMALFI |
|
Type |
Geared bulk carrier. - Carriage of dangerous goods - Handysize |
|
IMO-number |
9374349 |
|
Call sign |
3ENR2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
22.697 Suez: 23.071,98 |
|
DWT |
Summer: 37.322 t |
|
NT |
12.674 Panama: 18.912,77 Suez: 21.004,41 |
|
Length |
177,85 m overall 169,80 m between perpendiculars |
|
Breadth |
28,60 m moulded |
|
Draught |
10,87 m |
|
Moulded L x B x D |
169,80 x 28,60 x 15,00 m |
|
Registered L x B x D |
170,58 x 28,60 x 15,00 m |
|
Freeboard |
4.188 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Max: 15,4 knots Laden: 13,0 knots Ballast: 13,5 knots |
|
Built |
2007 |
|
Keel laid |
07/06/2006 |
|
Launch date |
10/10/2007 |
|
Date of completion |
30/11/2007 |
|
Builder |
Saiki Heavy Industries Co., Ltd. Saiki Japan |
|
Yard number |
1165 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Akasaka-Mitsubishi 6UE52LA - 2 stroke 6 cylinder 520 x 1.600 mm combustion engine 7.080 kW / 9.626 hp at 133,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 130 rpm |
|
Boilers |
1x CHR Osaka boiler 133,00 m² - 6,9 bar Evaporation: 2,14 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 563 kVA - 450 kW - 679 hp Manufacturer: Nishishiba Electric Co., Ltd. |
|
Emergency generator |
1x Diesel generatorset 100 kVA - 80 kW - 143 hp |
|
Number of holds |
5x Box shaped |
|
Cargo hold capacity |
Grain / bale: Hold 1: 6.407 / 6.327 m³ Hold 2: 9.956 / 9.823 m³ Hold 3: 9.978 / 9.843 m³ Hold 4: 9.978 / 9.866 m³ Hold 5: 9.714 / 9.612 m³ Total: 46.033 / 45.471 m³ |
|
Hold ventilation |
Electrical |
|
Number of hatches |
5 Hatch 1: 15,20 x 20,00 m Hatches 2,3,4,5: 22,40 x 24,00 m |
|
Tank capacities |
Diesel oil: 316,70 m³ Freshwater: 232,81 m³ Fuel oil: 1.418,23 m³ Lub oil: 93,70 m³ Tank ballast: 14.299,32 m³ |
|
Lifting equipment |
1x Mansei provision crane - SWL 1,5 t |
|
Cargo gear |
4x Deck cranes - SWL 36,0 t each Manufacturer: Mitsubishi Heavy Ind., Ltd., Shimonoseki S.Y. & Mach Wks |
|
Manager |
Toritec Company Limited Tokyo Japan |
|
Operator |
D’Amico dry cargo |
|
Registered owner |
Leo Ocean, S.A. (Orient Marine Co Ltd., Tokyo - Japan ) Republic of Panama |
|
Renamed |
07/2019 HTK Discovery Republic of Panama, Panama City - Call sign: 3ENR2
|
|
Latest data adjustment |
12 April 2026 |
