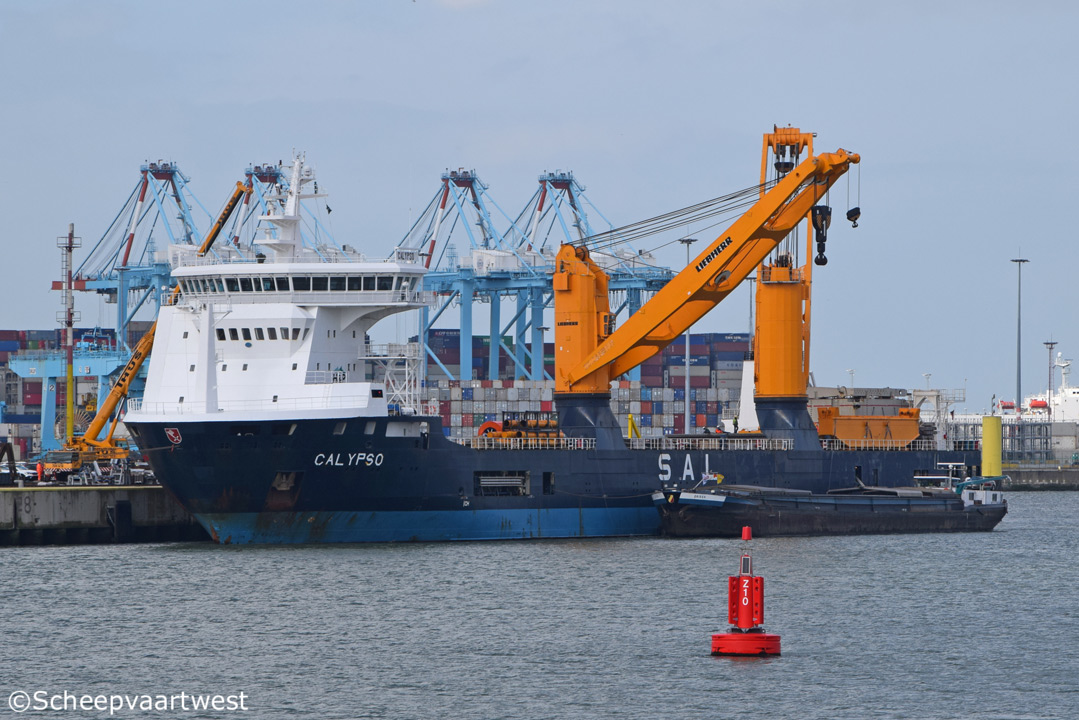

Calypso 01

Zeebrugge 14 March 2018



Name

CALYPSO

Previous names

2011 - 10/2012 Hyundai Pegasus

10/2012 - 06/2014 Palmarola

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Heavy lift carrier

IMO-number

9512381

Call sign

V2FJ3

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

11.473 t

DWT

9.917,9 t

NT

3.834 m

Number of 20ft containers

On deck: 340

In hold: 256

Total: 596

Length

134,01 m overall

122,85 m between perpendiculars

Breadth

23,20 m extreme

Draught

Summer: 7,80 m

Depth

11,40 m

Speed

16,5 knots

Built

2011

Keel laid

19/12/2008

Launch date

17/10/2010

Date of completion

28/02/2011

Builder

Taizhou Kouan Shipbuilding Co., Ltd.
Taizhou

Yard number

TK0306

Hull material

shipbuilding steel (standard)

Hull type

Single hull

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MAN 6L48/60B - 4 stroke 6 cylinder 480 x 600 mm combustion engine 7.200 kW at 500 rpm

Propellers

1x Controllable pitch propeller - aft at 141 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 23,1 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 76,0 m²

Manufacturer: Alfa Laval Aalborg A/S

Shaft generator

1x 1.400 kVA

Generators

2x MAN 7L23/30H main diesel generatorsets each 1.081 kVA

Emergency generator

1x MAN D2866LE203 diesel generatorset 362,5 kVA

Batteries

1 x Battery for automation 200 Ah
1 x Battery for other purpose 200 Ah
2 x Batteries for UPS navigation each 135 Ah
2 x Batteries for start emergency engine each 80 Ah

Compressed air receivers

2x Receivers each 1.250 litres - 30,0 bar
1x Receiver 1.000 litres - 11,0 bar
2x Receivers each 100 litres - 11,0 bar

Bow thruster

1x Transverse 700 kW

Number of holds

1

Flushdeck: 95,00 x 17,80 m

Hold capacity

16.450 m³

Max permitted loads

Tanktop: 16,0 t/m²

Tweendeck: 4,5 t/m²

Hatchcover: 2,5 t/m²

Tank capacities

Ballast: 7.950,6 m³

IFO: 1.053 m³

MGO: 218 m³

Anchor equipment

3w Anchors weight each 5.250 kg

Length: 577,50 m

Diameter: 56 mm

Cargo gear

2x Liebherr cranes - SWL Max. to 900 t

Crew

18

Manager

HPS Shipping & Management GmbH & Co. KG
Germany

Operator

Harren Shipping Services GmbH & Co. KG
Hermann-Hollerith-Straße 10
28355 Bremen
Germany

Registered owner

Harren & Partner SUMO-Shipping GmbH & Co. KG MS "PALMAROLA"

Latest data adjustment

30 March 2018
