Triades - IMO 9350082

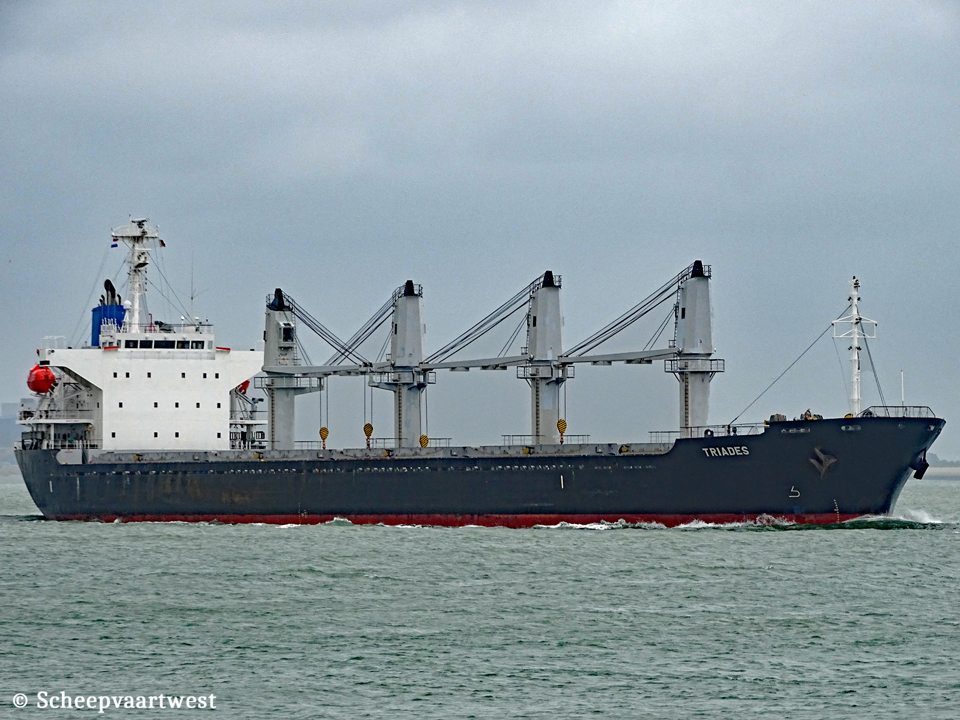

Westerschelde 01 July 2017

Name

TRIADES

Previous names

2005 - 2012 Atlantic Star

2012 - 2015 Lizard Point

Type

Bulk carrier

IMO-number

9350082

Call sign

3ECO5

Flag

Republic of Panama

Port of registry

Panama City

GT

16.949 t registered

DWT

Summer: 28.496 t

NT

10.134 t registered

Displacement

34.593 t

Light ship

6.097 t

Length

169,26 m overall

Breadth

27,20 m moulded

Draught

9,78 m

Moulded L x B x D

160,40 x 27,20 x 13,60 m

Registered L x B x D

161,21 x 27,20 x 13,60 m

Keel to mast end

41,00 m

Freeboard

3.864 mm

Depth

13,60 m moulded

Speed

Max: 15,9 knots

Service: 14,0 knots

Built

2005

Keel laid

18/12/2004

Launch date

11/07/2005

Date of completion

07/09/2005

Builder

Shimanami Shipyard Co., Ltd.

Hakata

Japan

Yard number

H501

Hull material

Steel

Bulkheads

7

Main engine

1x MAN-B&W/Mitsui 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 5.850 kW / 7.954 hp at 129,0 rpm

Build: 2005

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 420 mm

Propellers

1x Fixed pitch propeller

4 blades

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 2,07 t/h

Manufacturer: Miura Protec Co., Ltd.

Generators

3x Main diesel generatorsets each 425 kW

Number of holds

5

Cargo hold capacity

Bale: 35.762 m³

Grain: 37.523 m³

Number of hatches

5

4x 17,60 x19,20 m

1x 16,00 x 13,60 m

Tank capacities

Fuel oil: 1263,64 m³

Diesel oil: 147,96 m³

Lub oil: 77,25 m³

Fresh water: 297 m³

Ballast: 8.275 m³

Cargo gear

4x Crane - SWL 30,5 t each

ISM & commercial m

Manager

Newport Shipmanagement SA

9, Agiou Spyridonos Street

185 35 Piraeus

Greece

Registered owner

Ethnic Maritime Limited

C/o Newport Shipmanagement SA

9, Agiou Spyridonos Street

185 35 Piraeus

Greece

Renamed

05/2002 Andromeda

Russia, Korsakov - Call sign: UBMX6

03/2023 Vladimir Shilkov

Russia, Korsakov - Call sign: UBMX6

Latest data adjustment

20 July 2024
