Westerschelde 09 July 2018 |
 |
| Westerschelde 19/11/17 |
|
Name |

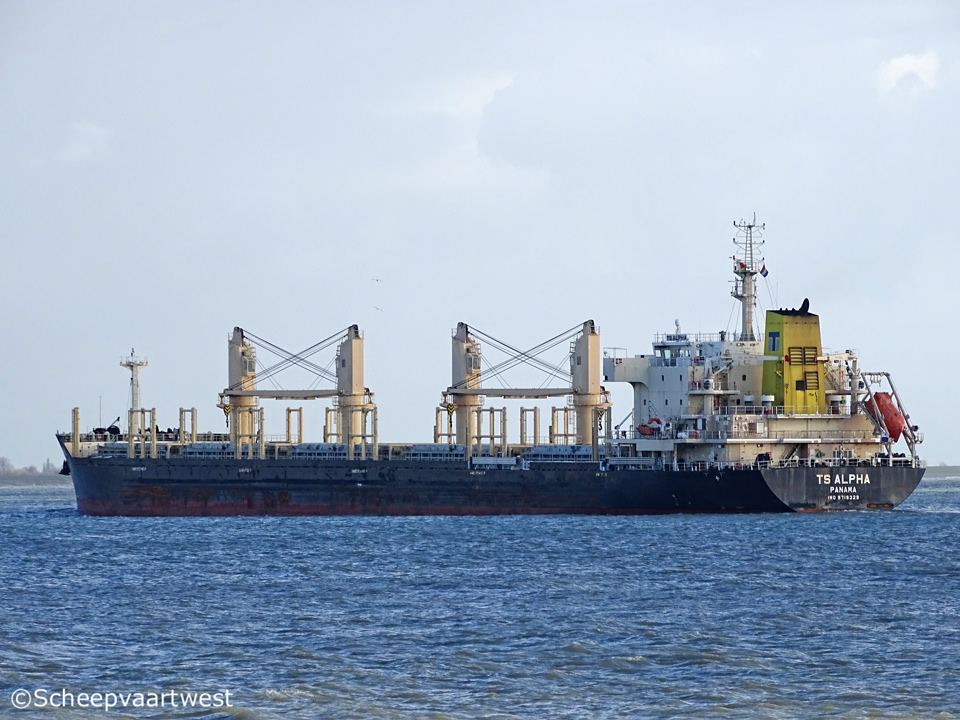

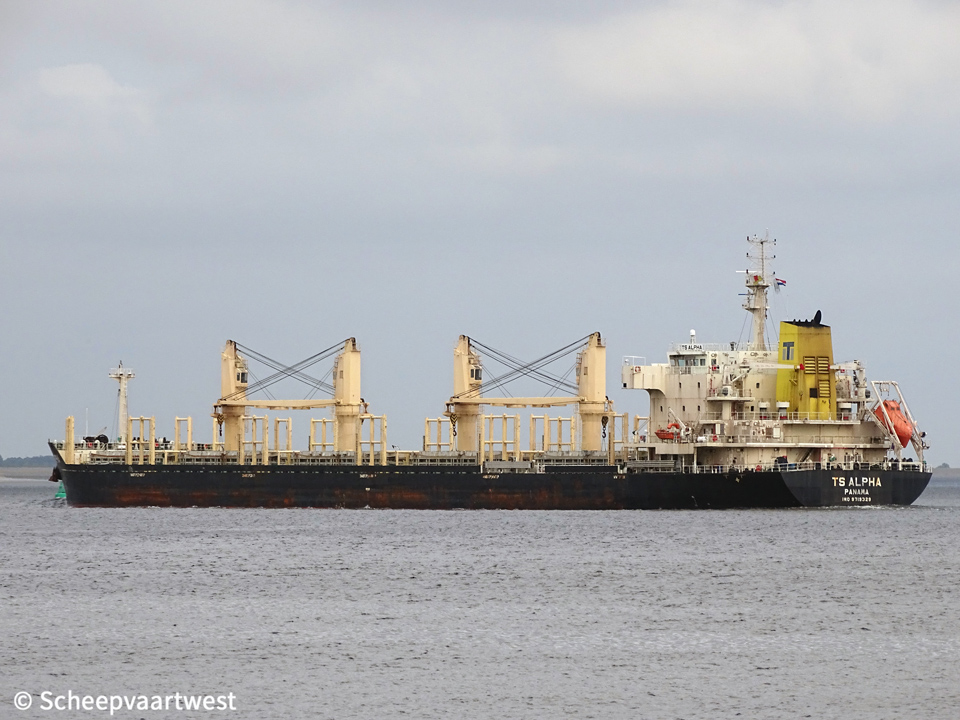

TS ALPHA |
|
Type |
Bulk/Lumber carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9719329 |
|
Call sign |
H3GJ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
24.159 t registered |
|
DWT |
Summer: 38.872 t |
|
NT |
12.826 t registered |
|
Length |
182,00 m overall |
|
Breadth |
30,00 m moulded |
|
Draught |
10,52 m |
|
Moulded L x B x D |
178,70 x 30,00 x 14,80 m |
|
Registered L x B x D |
178,70 x 30,00 x 14,80 m |
|
Freeboard |
4.333 mm |
|
Depth |
14,80 m moulded |
|
Speed |
Max: 15,3 knots |
|
Built |
2015 |
|
Keel laid |
11/04/2014 |
|
Launch date |
21/09/2014 |
|
Date of completion |
22/01/2015 |
|
Builder |
Shanhaiguan New Shipbuilding Industry Co.,Ltd. |
|
Yard number |
BC385-01 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 5 cylinder 500 x 2.050 mm combustion engine 7.044 kW at 110,0 rpm Manufacturer: Dalian Marine Diesel Co.,Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 465 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 2,83 t/h Manufacturer: Saacke Qingdao Marine Boiler Co.,Ltd. |
|
Generators |
4x Generators - 2.577 kVA |
|
Cargo hold capacity |
Grain: 48.758,50 m³ |
|
Tank capacities |
Fuel oil: 2.017,4 m³ Fresh water: 352,8 m³ |
|
Manager |
Dalian Tiger Shipping Limited |
|
Registered owner |
Ocean Ark Shipping Limited |
|
Latest data adjustment |
23 April 2018 |
