Westerschelde 18 November 201 |
|
Name |

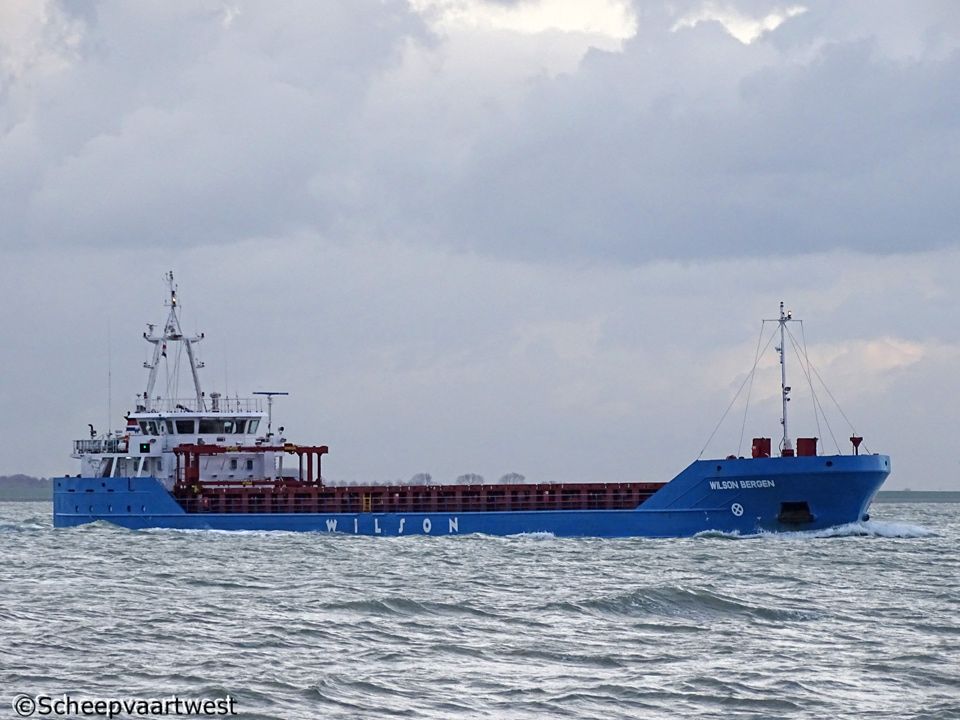

WILSON BERGEN |
|
Type |
General Cargo - Single deck - Heavycargo |
|
IMO-number |
9557408 |
|
Call sign |
8PMF |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
GT |
1.904 t |
|
DWT |
Summer: 2.619 t Winter: 2.519 t |
|
NT |
878 t |
|
Length |
87,91 m overall 84,98 m between perpendiculars |
|
Breadth |
11,41 m |
|
Draught |
Summer: 4,10 m Winter: 4,02 m |
|
Air draft |
20,30 m |
|
Keel to top antenna fwd/aft |
14,90 m / 23,30 m |
|
Keel to top antenna fwd/aft - lowered mast |
9,90 m / 17,80 m |
|
Freeboard |
1.708 mm |
|
Depth |
5,80 m moulded |
|
Speed |
Service: 9,0 knots Max: 10,6 knots |
|
Built |
2016 |
|
Keel laid |
29/12/2010 |
|
Launch date |
29/05/2012 |
|
Date of completion |
09/08/2016 |
|
Builder |
Wuxue Kaiyangxing Shipbuilding Co., Ltd. |
|
Yard number |
JD2011 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable bulkheads, 6 different positions + 2 storage positions aft |
|
Main engine |
1x ABC - 4 stroke 6 cylinder 256 x 310 mm combustion engine 1.326 kW / 1.802 hp at 1.000 rpm Built: 01/07/2011 Builder: Anglo Belgian Corporation NV; Wiedauwkaai 43, 9000 Gent - Belgium |
|
Propellers |
1x Screw propeller solid - aft at 1.000 rpm |
|
Generators |
2x Main diesel generatorsets each 200 kVA - 160 kW - 258 hp |
|
Emergency generator |
1x Diesel generatorset 113 kVA - 90 kW - 186 hp |
|
Bow thruster |
1x 150 kW |
|
Number of holds |
1 61,60 x 9,00 x 6,16 m |
|
Number of hatches |
1 46,50 x 9,00 m |
|
Hatch type |
Pontoon, Gantry crane |
|
Max permitted loads |
On deck/hatch cover: 1,5 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
MGO: 176 m³ Water ballast: 1.613 m³ |
|
Manager |
Wilson Ship Management AS |
|
Owner |
Wilson ASA |
|
Registered owner |
Shannon Shipping AS |
|
Latest data adjustment |
23 April 2018 |
