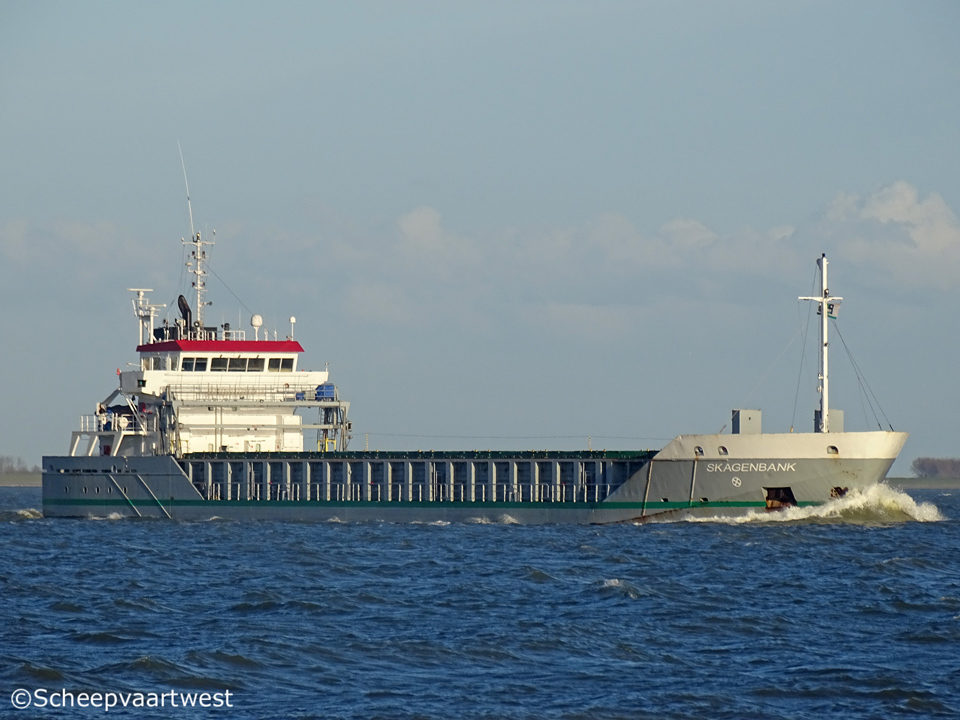

Skagenbank 01

Westerschelde 29 March 2016

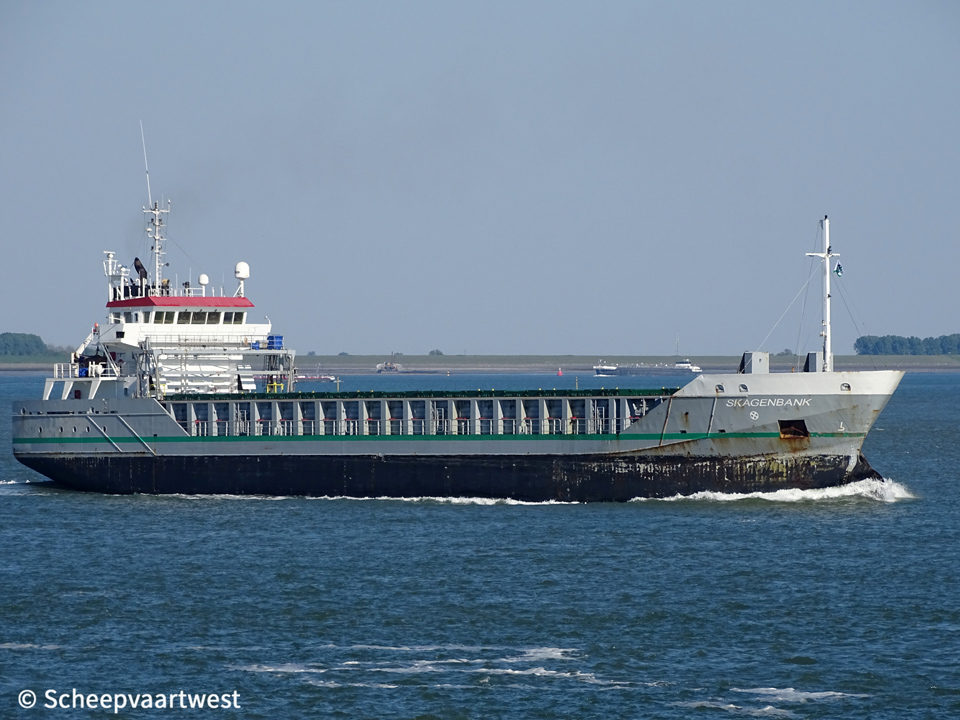

Skagenbank 02
Westerschelde 15/05/19



Name

SKAGENBANK

Type

Multi-purpose dry cargo ship

IMO-number

9313864

Call sign

PHMB

Flag

The Netherlands

Port of registry

Delfzijl

GT

2.999 t

DWT

Summer: 4.500 t

DWCC

Summer: 4.300 t

NT

1.643 t

Length

89,78 m overall

84,99 m between perpendiculars

Breadth

14,00 m extreme

Draught

Summer: 5,96 m

Winter: 5,74 m

Ballast: 4,00 m

Air draft

25,90 m in ballast

Depth

7,50 m moulded

Speed

13,0 knots

Built

2005

Keel laid

27/05/2004

Launch date

14/01/2005

Delivery date

17/02/2005

Builder

Ferus Smit Leer GmbH
Leer
Germany

Yard number

354

Hull material

Steel

Hull type

Double hull

Watertight compartments

6

Movable bulkheads

2

Continuous decks

1

Main engine

1x Mak 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.263 bhp at 750 rpm

Built: 2007

Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany

Propellers

1x Controllable pitch propeller - aft at 200 rpm

Generators

2x Scania DI-9 60M main diesel generatorsets each 256 kVA - 205 kW - 332 hp

Bow thruster

1x 275 kW

Number of holds

1x Single box-shaped

59,50 x 11,50 x 9,07 m

Cargo hold capacity

Grain / Bale: 5.974 m³ / 211.000 ft³

Timber capacity

5.600 m³

Hold ventilation

Electrical abt. 6 air changes per hour basis empty hold
Hold is fitted with dehumidifier system

Number of hatches

1

59,50 x 11,50 m

Hatch cover type

Coops & Nieborg pontoon hatches

Max permitted loads

Tanktop: 15,0 t/m²

Hacth covers: 1,5 t/m²

Tank capacities

Water ballast: 1.828 m³

Fresh water: 45 m³

MGO: 376 m³

Accommodation

For 7 persons, all cabins air-conditioned (single pipe) and equipped with private sanitary units

Manager

Pot Scheepvaart
Handelskade West 28A
9934 AA Delfzijl
The Netherlands

Operator

Wagenborg Shipping B.V.
Marktstraat 10
9934 CK Delfzijl
The Netherlands

Registered owner

C.V. Scheepvaartonderneming Skagenbank
Delfzijl
The Netherlands

Latest data adjustment

18 June 2018
