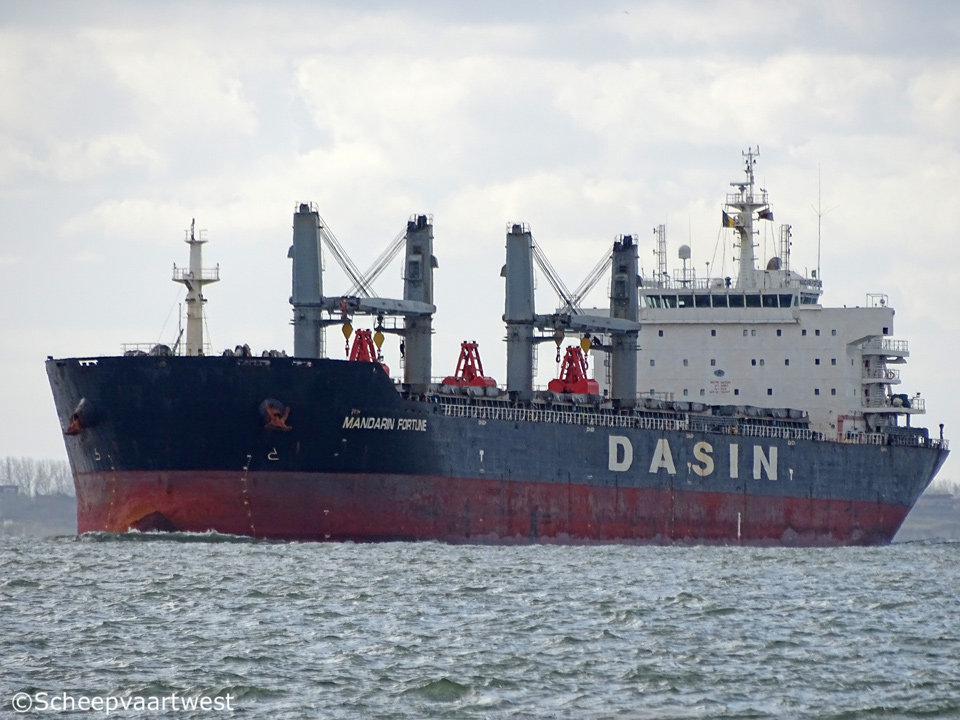

Mandarin Fortune - IMO 9478169

Westerschelde 05 November 2017

Name

MANDARIN FORTUNE

Type

Bulk carrier

IMO-number

9478169

Call sign

S6BQ7

Flag

Republic of Singapore

Port of registry

Singapore City

GT

32.957 t

DWT

Summer: 57.000 t

NT

19.231 t

Length

189,99 m overall

185,00 m between perpendiculars

Breadth

32,26 m

Draught

12,80 m

Freeboard

5.224 mm

Depth

18,00 m

Speed

14,2 knots

Built

2008

Date of completion

18/11/2008

Builder

Jiangsu Hantong Ship Heavy Industry Co.,Ltd.
Tongzhou
China

Yard number

HT010

Hull material

Steel

Hull type

Single hull

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 20.000 mm combustion engine 9.480 kW / 12.880 hp at 127,0 rpm

Transmission: main propulsion acts directly on the propellershaft
Starter type: compressed air direct

Propellers

1x Fixed pitch propeller - 4 blades

Boilers

1x CHM Saacke 177,40 m² - 9,0 bar

Generators

3x Main diesel generatorsets each 750 kVA

Emergency generator

1x Diesel generatorset 123,8 kVA

Number of cargo holds

5

Cargo hold capacity

Grain / Bale:

Hold 1: 12.300 m³ / 13.009,86 m³
Hold 2: 14.700 m³ / 15.333,25 m³
Hold 3: 14.000 m³ / 14.553,08 m³
Hold 4: 14.700 m³ / 15.333,27 m³
Hold 5: 12.500 m³ / 13.404,64 m³
Total : 68.200 m³ / 71.634,10 m³

Hold ventilation

Natural

Tank capacities

HFO: 2.169,77 t (98%)
MDO: 121,42 t (98%)
Lub oil: 123,38 m³
Fresh.& Dist.& Washing water 465,41 + 365,04 t
Ballast water / Hold 3: 16.741,98 / 14.916,91 t

Anchor equipment

3x Anchors weight each 8.700 kg
Chain length: 632,50 m

Cargo gear

4x NMF electro hydraulic cranes - SWL 36,0 each

4x Grabs 13 m³ each

Manager

Dasin Holdings Pte., Ltd.
8 Shenton Way
Singapore City
Republic of Singapore

Owner

Glory Marine Pte. Ltd.

Registered owner

Mandarin Fortune Shipping Pte Ltd.

Latest data adjustment

22 June 2018
