Westerschelde 07 May 2016 |
|
Name |

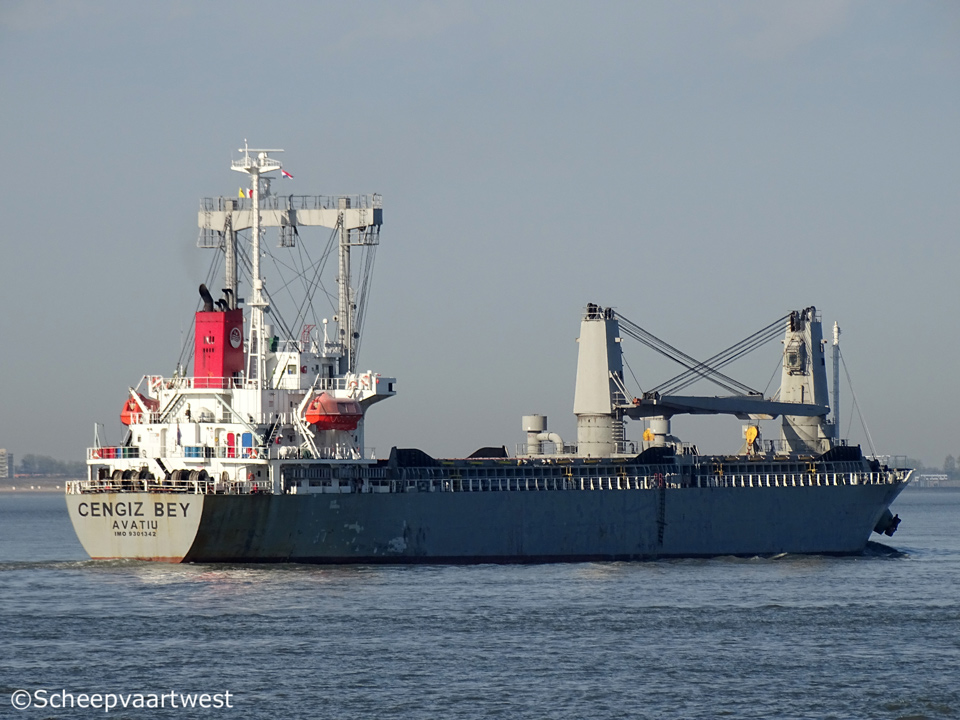

CENGIZ BEY |
|
Previous names |
Brave Ocean |
|
Type |
General cargo ship |
|
IMO-number |
9301342 |
|
Call sign |
E5U3061 |
|
Flag |
Cook Islands |
|
Port of registry |
Avatiu |
|
Previous flags |
2004 - 2015 Republic of Panama, Panama City - Call sign: H8DG |
|
GT |
7.823 t |
|
DWT |
Summer: 11.817,73 t |
|
NT |
3.252 t |
|
Length |
115,48 m overall 106,95 m between perpendiculars |
|
Breadth |
19,60 m |
|
Draught |
Summer: 8,85 m |
|
Depth |
13,20 m |
|
Speed |
16,0 knots |
|
Built |
2004 |
|
Date of completion |
18/05/2004 |
|
Builder |
Higaki Shipbuilding Co., Ltd. Japan |
|
Yard number |
567 |
|
Hull material |
Steel |
|
Main engine |
1x MAN B&W 7L35MC - 2 stroke 7 cylinder 350 x 1.050 mm combustion engine 3.900 kW / 5.304 hp at 210 rpm Built: 01/02/2004 Manufacturer: The Hanshin Diesel Works, Ltd.- Japan |
|
Propellers |
1x Screw propeller solid |
|
Boilers |
1x CHM 75,80 m² - 6,9 bar Manufacturer: Miura Co. Ltd |
|
Generators |
2x Main diesel generatorsets each 400 kVA - 320 kW - 482 hp |
|
Emergency generator |
1x Diesel generatorset 10 kVA - 8 kW - 15 hp |
|
Number of holds |
2x Box shaped |
|
Cargo hold capacity |
Grain / Bale Hold 1: 5.723,90 m³ / 5.362,00 m³ Hold 2: 9.005,20 m³ / 8.996,20 m³ Total: 14.729,10 m³ / 14.694,00 m³ |
|
Number of hatches |
2 |
|
Max permitted loads |
Tanktop: 11 t/m² |
|
Tank capacities |
Fuel oil: 378,05 m³ m³ Diesel oil: 128,36 m³ Fresh water: 378,05 m³ Ballast: 2.959,86 m³ |
|
Cargo gear |
2x Crane - SWL 36 t Each/ 1x Derrick - SWL 30 t |
|
Manager |
Ranmarine Shipping & Trading Ltd. |
|
Registered owner |
Iron Marine Trading Ltd. |
|
Latest data adjustment |
28 June 2018 |
