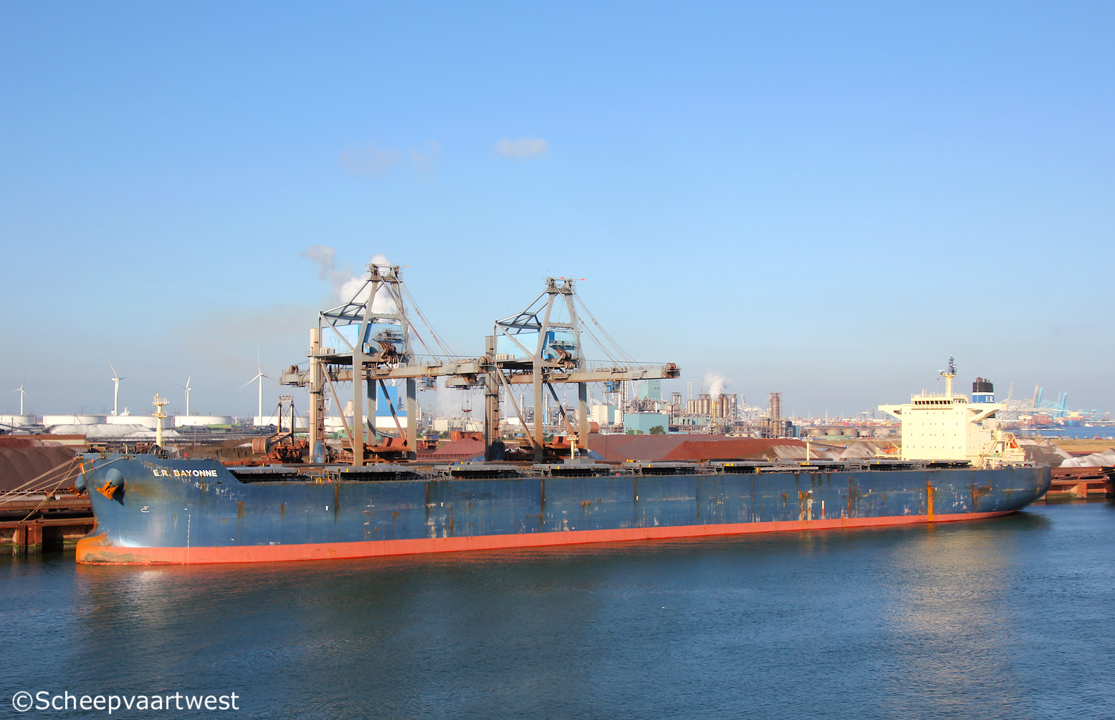

E.R. Bayonne 02

Europoort, The Netherlands 14 July 2018

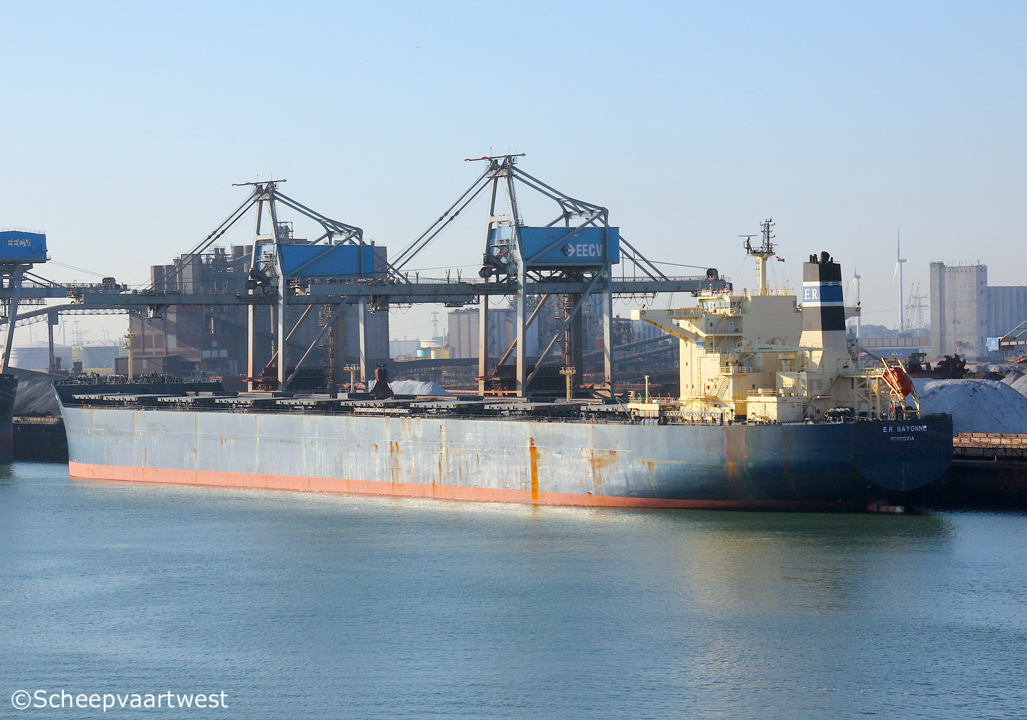

E.R. Bayonne 01
Europoort 14/07/18



Name

E.R. BAYONNE

Type

Bulk carrier

IMO-number

9507520

Call sign

A8UT7

Flag

Liberia

Port of registry

Monrovia

GT

93.186 t

DWT

Summer: 178.977 t

NT

59.500 t

Length

291,98 m overall

283,50 m between perpendiculars

Breadth

45,07 m extreme

Draught

18,20 m

Depth

24,70 m

Speed

15,3 knots

Built

2010

Keel laid

16/10/2009

Launch date

05/03/2010

Date of completion

30/04/2010

Builder

Hyundai Heavy Industries Co., Ltd. Gunsan Shipyard
Gunsan
South Korea

Yard number

2254

Hull material

Steel

Main engine

1x MAN B&W 6S 0 MC-C7 - 6 cylinder combustion engine 18.903 kW

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Generators

3x Hyundai/Himsen 5H21/32 main diesel generatorsets each 900 kW

Emergency generator

1x Cummins 6CTA-8.3-D(M) diesel generatorset

Tank capacities

Ballast: 77.568,2 m³

Anchor equipment

Length: 742,50 m

Diameter: 102 mm

Manager

ZEABORN Ship Management GmbH & Cie. KG
Marcusallee 35
28359 Bremen
Germany

Operator

ER Schiffahrt
Hamburg
Germany

Registered owner

MS BAYONNE Shipping GmbH & Cie. KG

Latest data adjustment

25 August 2018
