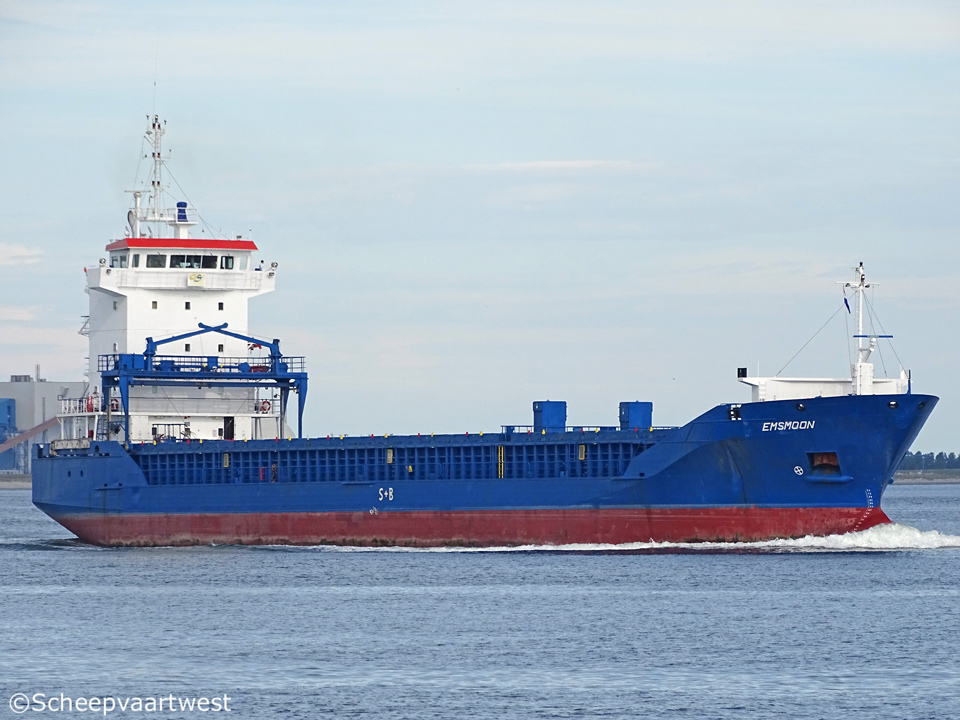

Westerschelde 02 June 2017 |
|
Name |
EMSMOON |
|
Previous names |
2000 - 11/2005 Morgenstond III |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Gearless box single decker |
|
IMO-number |
9213894 |
|
Call sign |
V2BN2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
2000 - 11/2005 The Netherlands, Siddeburen- Call sign: PBAX |
|
GT |
4.503 t |
|
DWT |
Summer: 6.337 t Winter: 6.137 t |
|
NT |
2.462 t |
|
Number of 20ft containers |
On deck: 227 In hold: 163 Total: 390 |
|
Number of 40ft containers |
On deck: 112 In hold: 62 Total: 184 |
|
Length |
111,75 m overall 105,68 m between perpendiculars |
|
Breadth |
14,95 m extreme |
|
Draught |
6,38 m fully laden |
|
Air draft |
36,00 m ballast |
|
Depth |
8,40 m |
|
Speed |
Service: 12,0 knots Max: 14,2 knots |
|
Built |
2000 |
|
Keel laid |
29/06/1998 |
|
Launch date |
18/11/2000 |
|
Date of completion |
14/12/2000 |
|
Builder |
Scheepswerf Ferus Smit B.V. |
|
Yard number |
326 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight compartments |
6 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8R32LNE - 4 stroke single acting 8 cylinder 320 x 350 mm combustion engine 3.280 kW / 4.400 hp at 750 rpm Manufacturer: Wärtsilä NSD Finland OY, Vaasa/Vasa - Finland |
|
Propellers |
1x Controllable pitch propeller aft at 159 rpm |
|
Boilers |
1x CHO Gekakonus 1,00 m² / 10,0 bar |
|
Electric installations |
1x Plant 400 V - 187,5 kVA 1x Plant 400 V - 187,5 kVA 1x Plant 400 V - 565 kVA 1x Plant 400 V - 106,3 kVA |
|
Shaft generator |
1x Stamford HSM 534 D - 565 kVA |
|
Generators |
2x Sisu 645 DSBIMG main diesel generatorsets 187,5 KVA |
|
Emergency & Harbour gen. |
1x Sisu 620 DSG diesel generatorset 106,3 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x 350 kW |
|
Number of holds |
2 Hold 1: 27,30 x 12,65 m Hold 2: 52,50 x 12,65 m |
|
Cargo hold capacity |
Grain/Bale: 9.245,17 m³ / 326.480 ft³ |
|
Hold ventilation |
6 Air changes per hour |
|
Number of hatches |
2 Hatch 1: 27,30 x 12,65 x 9,62 m Hatch 2: 52,50 x 12,65 x 9,62 m |
|
Hatch covers |
Pontoon hatch covers |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
HFO: abt 438 m³ MGO: abt 47 m³ Fresh water: abt 44,4 m³ Ballast water: abt 2.582 m³ |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Length: 495,00 m Diameter: 44 mm |
|
Cargo gear |
Gearless |
|
Crew size |
9 |
|
Manager |
Grona Shipmanagement GmbH & Co. KG |
|
Previous managers |
2000 - 11/2005 Wagenborg Shipping B.V., Delfzijl - The Netherlands 2005 Marlow Ship Management, Hamburg - Germany |
|
Registered owner |
MS "EMSMOON" NTH Schiffahrts GmbH & Co. KG |
|
Previous names & owners |
2000 - 11/2005 Morgenstond III - C.V. Scheepvaartonderneming Morgenstond III, Siddeburen - The Netherlands |
|
Renamed |
10/2019 Hela Cyprus, Limassol - Call sign: 5BJE5 Manager & Owner: Hermann Lohmann Schifffahrt G.m.b.H. & Co. KG, Haren/Ems - Germany |
|
Latest data adjustment |
12 October 2019 |
