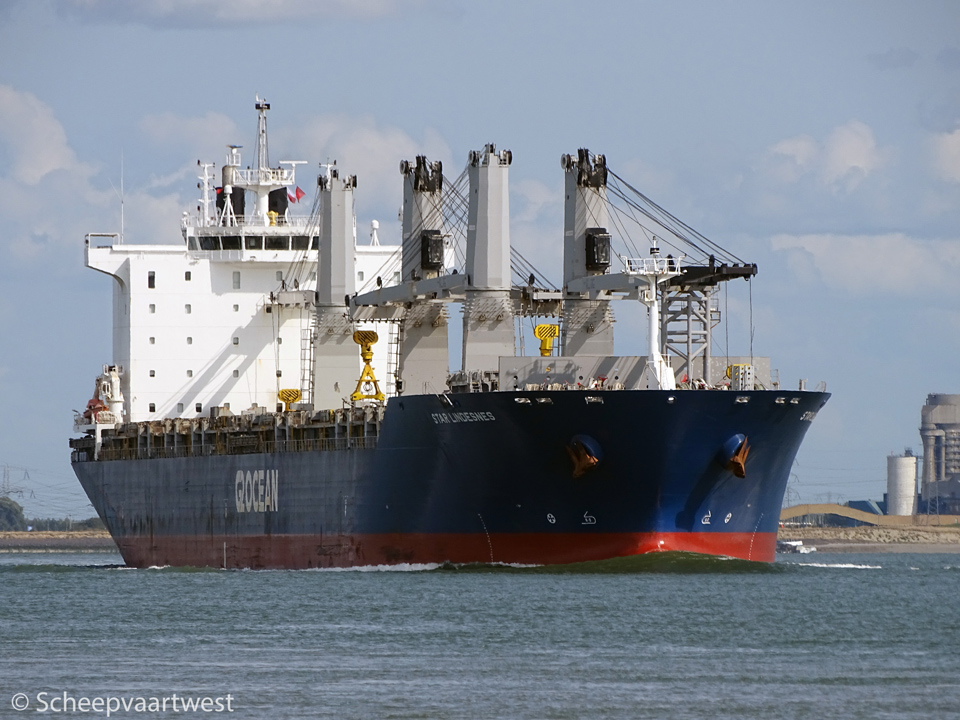

Westerschelde 20 August 2018 |
 |

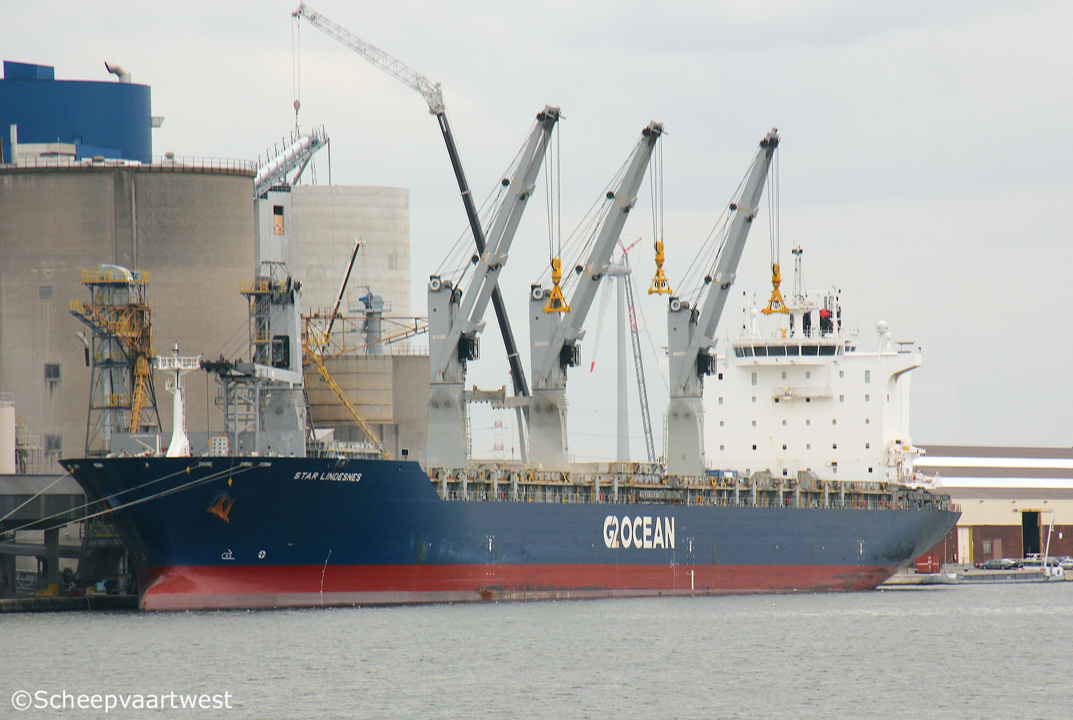

| Antwerpen 28/08/18 |
|
Name |
STAR LINDESNES |
|
Type |
General cargo ship / Container ship |
|
Main products |
Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes |
|
IMO-number |
9593878 |
|
Call sign |
LAQJ7 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
37.447 t |
|
DWT |
Summer: 50.748 t |
|
NT |
15.619 t |
|
Number of 20ft containers |
1.411 |
|
Length |
204,40 m overall 194,01 m between perpendiculars |
|
Breadth |
32,30 m extreme 32,26 m moulded |
|
Draught |
12,64 m extreme |
|
Air draft |
Max: 51,11 m 417,00 m mast folded |
|
Depth |
19,00 m to main deck |
|
Speed |
15,5 knots |
|
Built |
2013 |
|
Keel laid |
06/09/2012 |
|
Launch date |
03/11/2012 |
|
Date of completion |
21/01/2013 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
|
Yard number |
8077 |
|
Hull material |
Steel |
|
Main engine |
1x MAN B&W/Hyundai 5S60ME-C8.1 - 2 stroke 5 cylinder combustion engine MCR: 10.780 kW at 95,2 rpm NSR: 9.090 kW at 90,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired Steam production: 1.600 kg/h Working pressure: 7 kg/cm² Fuel oil consumption: 121 kg/h 1x Auxiliary boiler, exhaust gas heated Steam production: 1.200 Kg/h Working pressure: 7 kg/cm² Exhaust gas amount: 87.000 Kg/h Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Hyundai 5H21/32 41 stroke 5 cylinder main diesel engines 960 kW at 900 rpm each coupled with 3 Hyundai HFC7 506-84K generators 1.125 kVA/ 900 kW each Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Sisu diesel engine coupled with Norhavn GASI 8-06E generator 225 kVA / 180 kW |
|
Compressed air receivers |
2x Two main air compressors: Sperre XW150 - 165 m³/h capacity at 30,0 bar 1x Working air compressor: Atlas Copco GA37VSD-175-60 - 388 m³/h capacity at 7,0 bar 1x Emergency air compressor: Sperre XA030 - 35 m³/h capacity at 30,0 bar |
|
Number of holds |
9x Box-shaped cargo holds |
|
Max permitted loads |
Weather deck hatch covers: 3,6 t/m² Tween decks: 5,5 t/m² Tank top, Hold 2 to 8: 28,0 t/m² Tank top, Hold 9: 5,5 t/m² |
|
Number of hatches |
9 |
|
Cargo hold capacity |
Bale: 66.775 m³ |
|
Tank capacities |
Ballast: 20.365 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
4x Sewing cranes on deck - SWL 75 t each |
|
Accommodation |
Aft for a total of 29 persons |
|
Manager |
Grieg Star AS |
|
Operator |
G2Ocean |
|
Registered owner |
Grieg International II AS / Grieg Shipping II AS |
|
Latest data adjustment |
22 September 2018 |
