Antwerpen 28 August 2018 |
 |
| Antwerpen 28/08/18 |
|
Name |

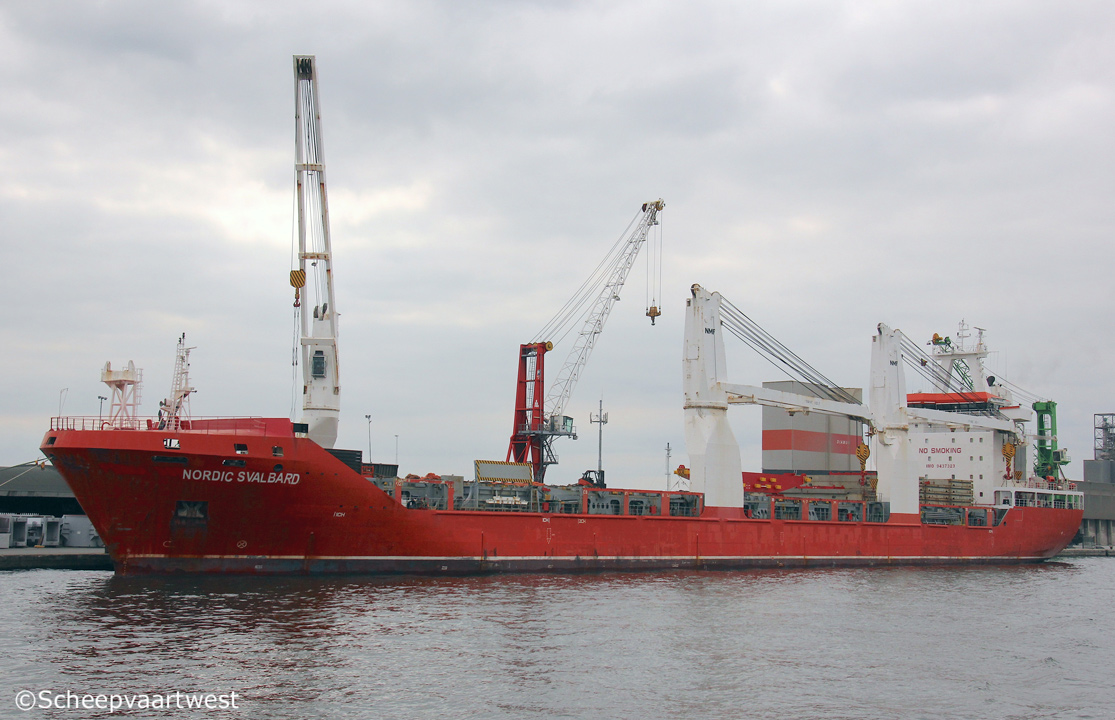

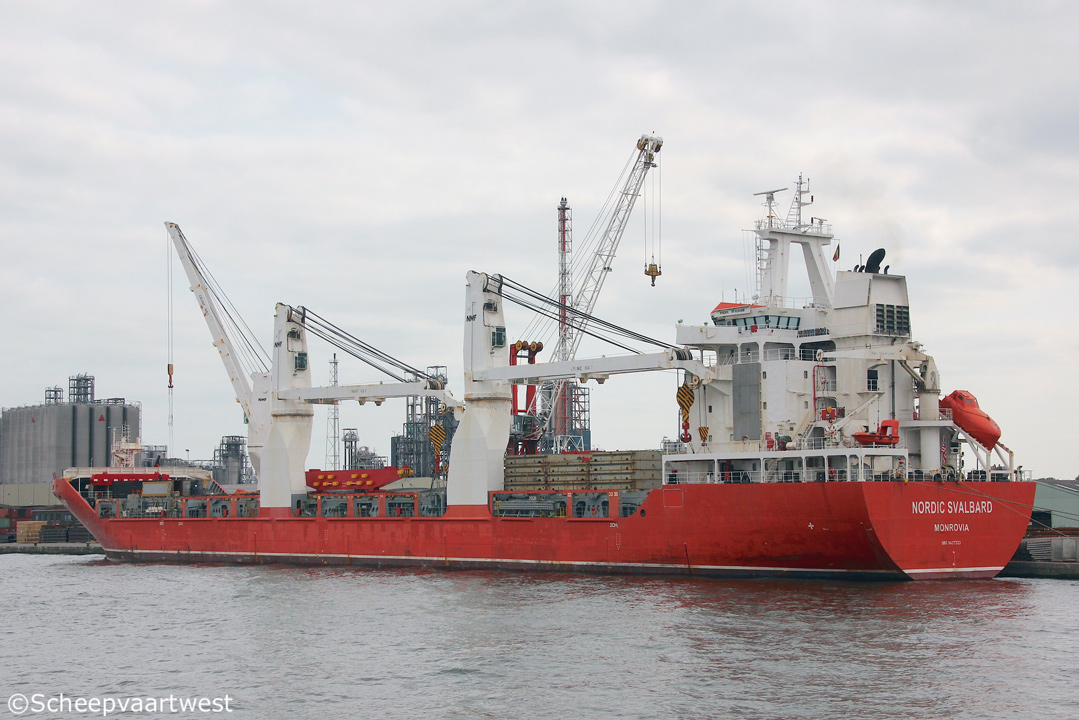

NORDIC SVALBARD |
|
Previous names |
2010 - 2010 Beluga Permission 2010 - 12/2011 Beluga Sydney 12/2011 - 2018 Prima Dora |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9437323 |
|
Call sign |
D5QF8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2010 - 2010 Antigua and Barbuda, St. John’s 2010 - 2011 Liberia; Monrovia 2011 - 2018 Marshall Islands; Majuro |
|
GT |
15.549 t |
|
DWT |
Summer: 16.543,21 t |
|
NT |
5.722 t |
|
Number of 20ft containers |
1.031 |
|
Container capacity 14t |
648 |
|
Reefer plugs |
122 reefer plugs on deck |
|
Length |
166,16 m overall 156,00 m between perpendiculars |
|
Breadth |
23,27 m extreme 22,90 m moulded |
|
Draught |
Summer: 50 m |
|
Height above keel |
45,62 m |
|
Depth |
13,90 m to main deck |
|
Speed |
Max: 15,5 knots |
|
Built |
2010 |
|
Keel laid |
22/01/2009 |
|
Launch date |
17/11/2009 |
|
Date of completion |
04/09/2010 |
|
Builder |
China Changjiang Shipping Group Qingshan Shipyard |
|
Yard number |
QS20060321 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 7L58/64 CD - 7 cylinder combustion engine 9.800 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x Caterpillar 3412 DITA main diesel generatorsets |
|
Emergency & harbour gen. |
1x Caterpillar 3412 DITA diesel generatorset |
|
Cargo hold capacity |
23.960 m³ / 846.139 ft³ |
|
Floor space |
Under deck: 3.557 m² / 38.287 ft² On deck: 1.792 m² / 21.226 ft² |
|
Tank capacities |
Ballast: 9.081,21 m³ |
|
Max permitted loads |
18,00 t on tanktop 3,50 t on tweendeck 5,00 t on hatchcover 8,00 t on pontoon covers middle of hatch 2 |
|
Anchor equipment |
Length: 581,40 m Diameter: 60 mm |
|
Cargo gear |
2x NMF cranes situated portside - SWL 400 t each / 800 t capacity combined 1x NMF crane situated starboard side - SWL 120 t |
|
Crew size |
27 |
|
Manager |
Nordic Hamburg Shipmanagement (HK) Ltd. |
|
Registered owner |
Nordic Svalbard AS |
|
Latest data adjustment |
01 October 2018 |
