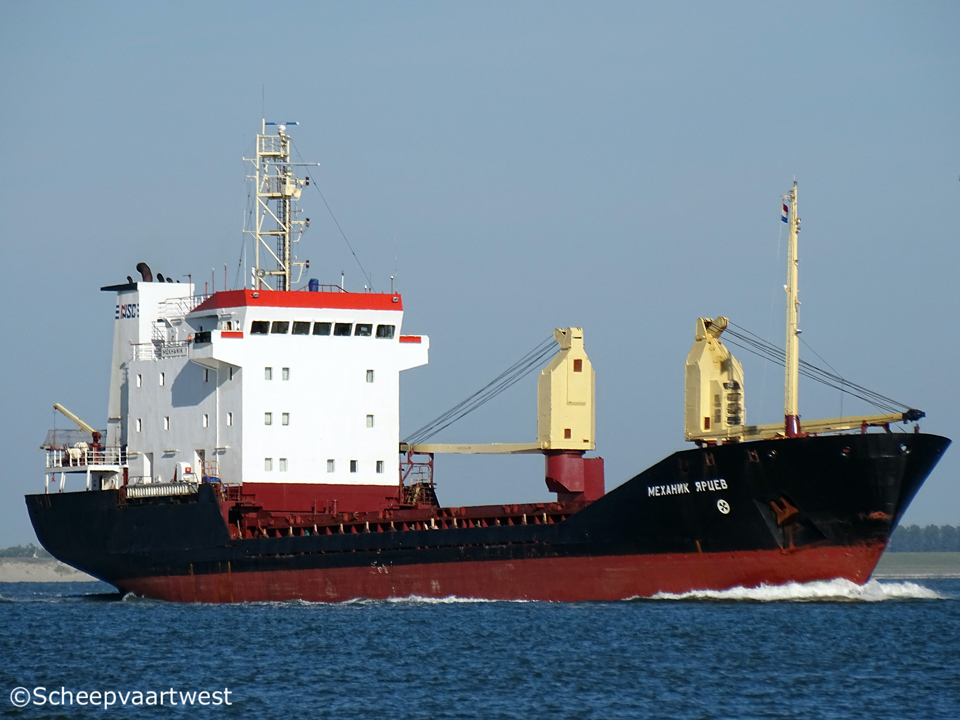

Mekhanik Yartsev - IMO 8904367

Westerschelde 09 June 2016

Name

MEKHANIK YARTSEV

Russian name

МЕХАНИК ЯРЦЕВ

Type

General cargo ship

Main products

Lumber products - logs - grain in bulk - bulk cargoes

IMO-number

8904367

Call sign

UCOQ

Flag

Russia

Port of registry

Arkhangelsk

Previous flags

1990 - 1992 USSR

1992 - 1999 Russia

1999 - 2000 Malta

GT

2.489 t

Suez: 2.565,98 t

DWT

Summer: 2.654 t

Winter: 2.553 t

NT

907 t

Suez: 1.561,74 t

Displacement

4.203 t full load

Length

85,20 m overall

79,35 m between perpendiculars

Breadth

14,50 m

Draught

Summer: 5,06 m

Winter: 4,96 m

Distance from keel to top whip antenna

32,90 m

Distance from keel to top of hatch covers

8,30 m

Depth

6,00 m to keel

Speed

12,6 knots

Built

1990

Keel laid

05/07/1989

Launch date

19/04/1990

Date of completion

05/12/1990

Builder

Österreichische Schiffswerft
Linz
Austria

Yard number

775

Hull material

Steel

Hull type

Double hull

Bulkheads

6

Continuous decks

1

Main engine

1x 6DKRN 26/98-12 - 6 cylinder combustion engine 2.074 kW at 237 rpm

Built: 1990

manufacturer: Bryansk Engineering Works, JSC

Propellers

1x Controllable pitch propeller - 4 blades

Shaft generator

1x 264 kW

Generators

2x Generatorsets each 264 kW

Bow thruster

1x 185 kW

Number of holds

2

Hold 1: 22,40 x 11,60 x 6,00 m

Hold 2: 22,40 x 11,60 x 6,00 m

Cargo hold capacity

Bale / grain

Hold 1: 1.678 m³ / 1.684 m³

Hold 2: 1.678 m³ / 1.727 m³

Total: 3.356 m³ / 3.411 m³

Number of hatches

2

Hatch 1: 18,85 x 10,50 m

Hatch 2: 19,25 x 10,50 m

Deck space for cargo

507 m²

Max permitted loads

On deck: 3,00 t/m²

Hatch covers: 1,55 t/m²

Tanktop: 6,10 t/m²

Tank capacities

Fuel oil: 227 m³

Water ballast: 720 m³

Fresh water: 49 t

Cargo gear

2x Cranes - SWL 5,0 t each

Crew

16

Manager

Northern Shipping
Arkhangelsk
Russian Federation

Owner

"Northern Shipping Company", Joint-Stock Company
Naberezhnaya Severnoy Dviny, 36
163000 Arkhangelsk

Russia

Latest data adjustment

08 September 2018
