Name |

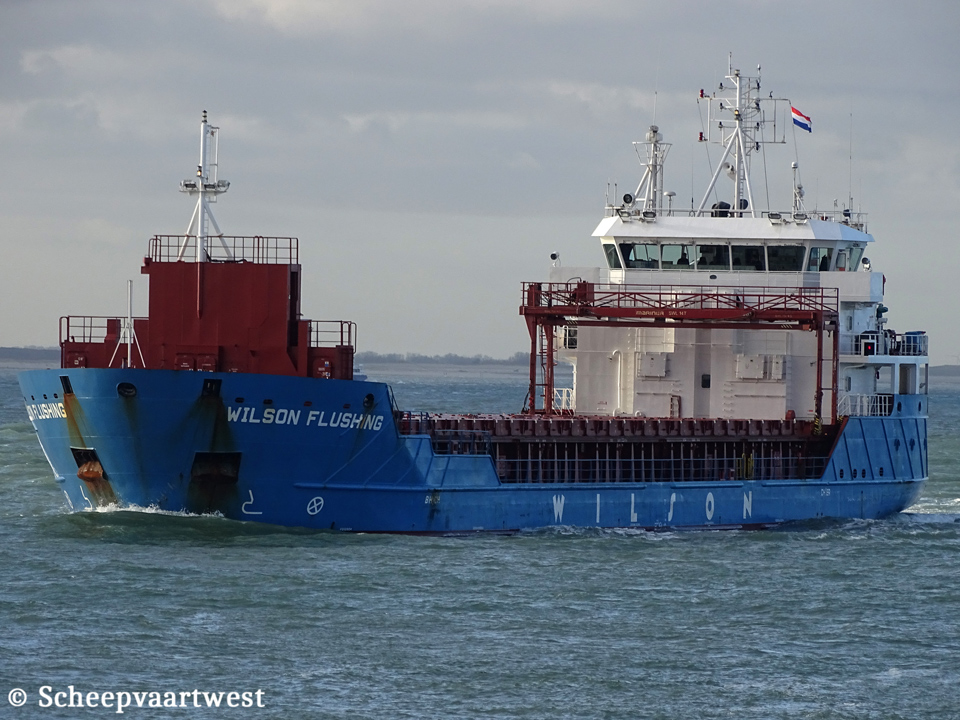

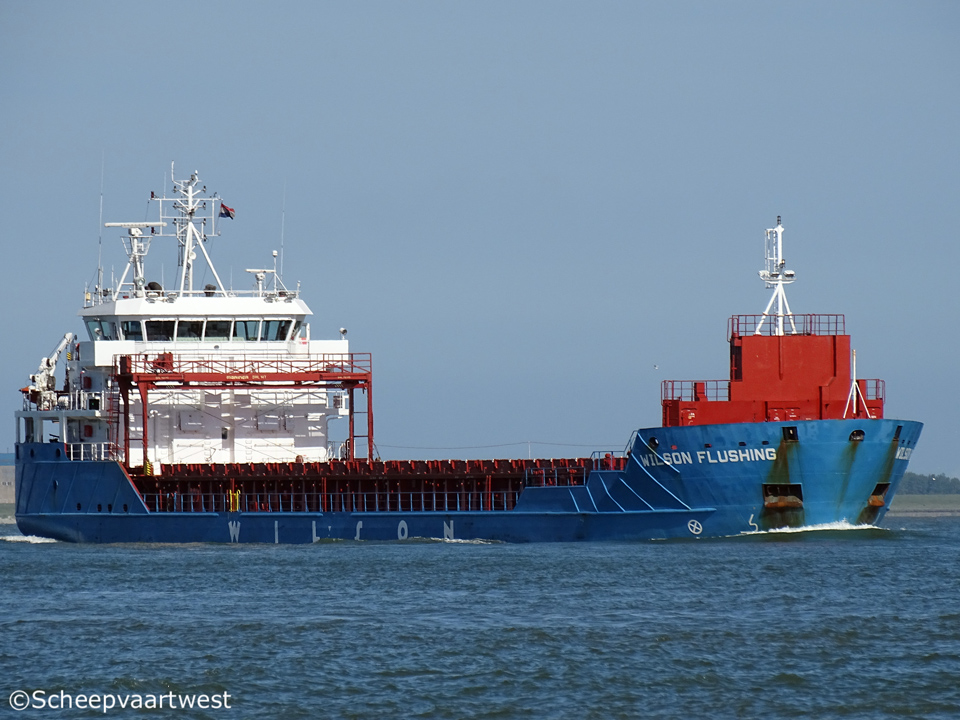

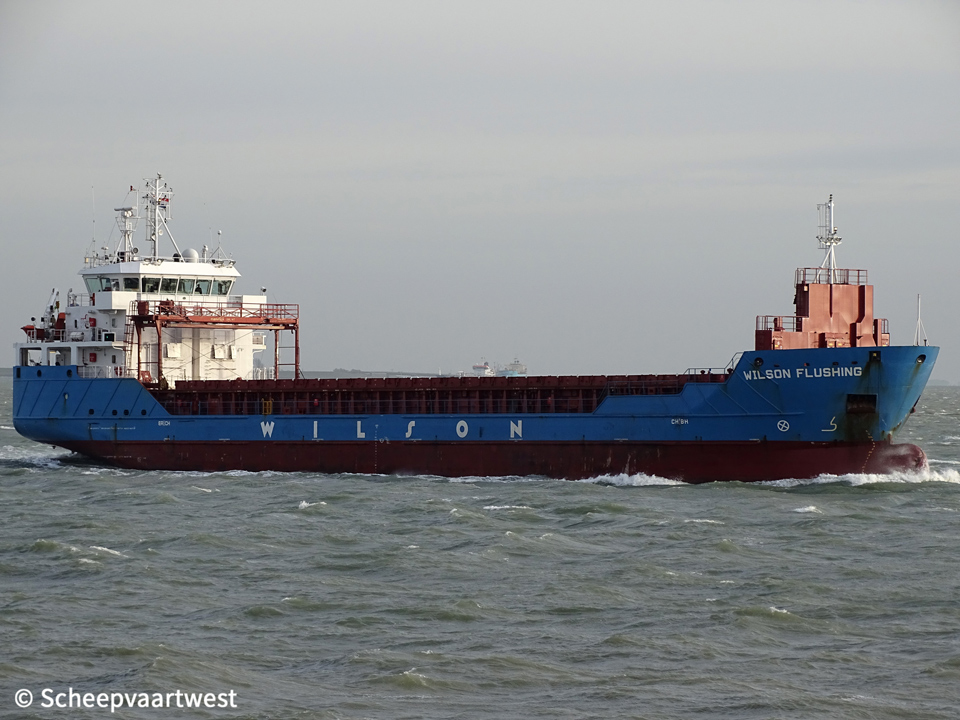

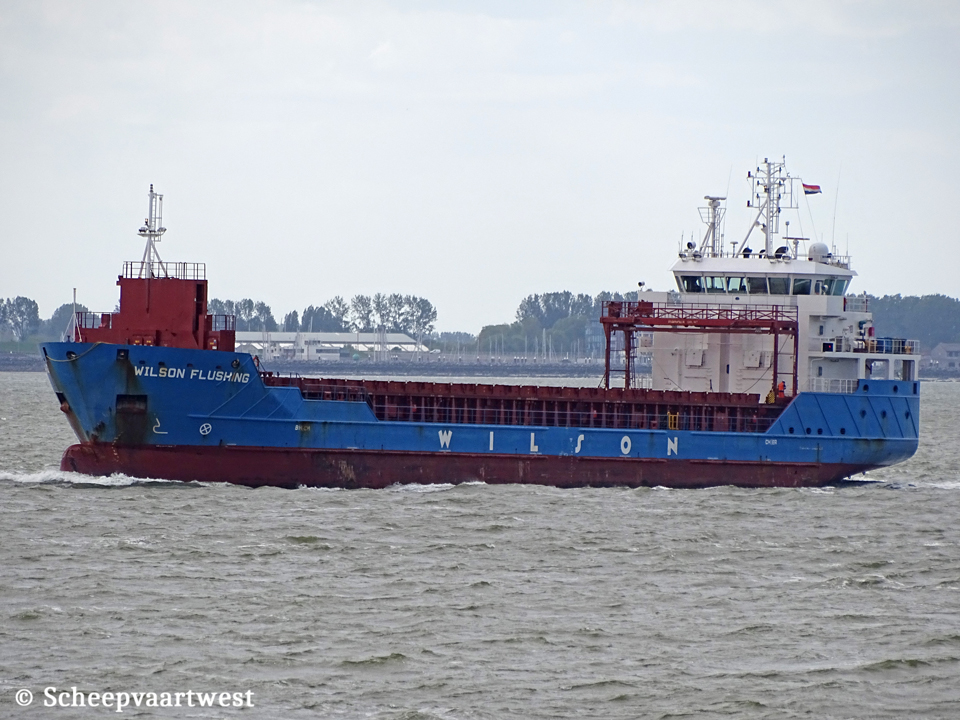

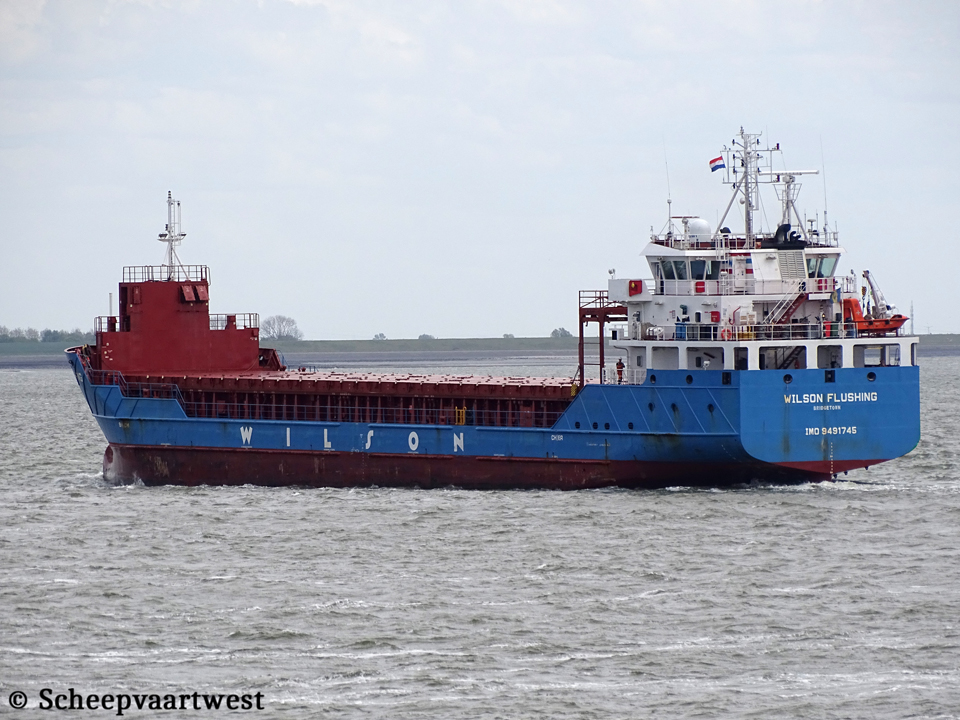

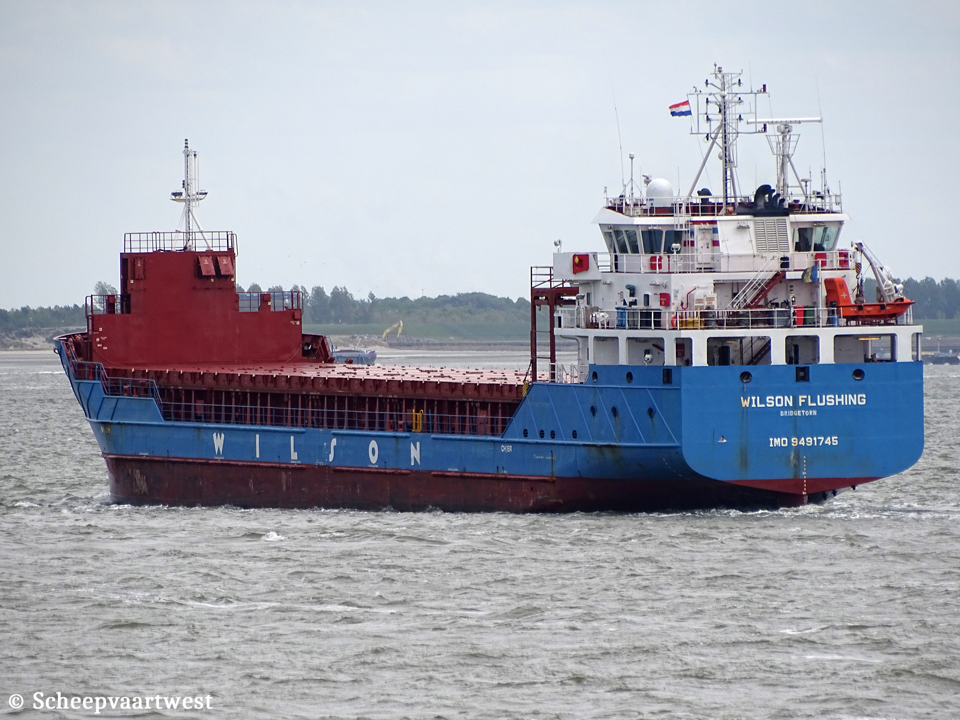

WILSON FLUSHING |
|
Type |
Multi-purpose dry cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9491745 |
|
Call sign |
8PAH3 |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
GT |
3.561 t |
|
DWT |
Summer: 4.521,2 t Winter: 4.369 t |
|
NT |
1.590 t |
|
Length |
89,97 m overall 84,97 m between perpendiculars |
|
Breadth |
15,63 m extreme 15,40 m moulded |
|
Draught |
Summer: 5,80 m Winter: 5,68 m |
|
Keel to top antenna fwd/aft |
22,30 m / 27,10 m |
|
Air draft |
23,03 m |
|
Depth |
7,60 m moulded |
|
Speed |
Service: 11,8 knots |
|
Built |
2012 |
|
Keel laid |
22/12/2008 |
|
Launch date |
29/08/2011 |
|
Date of completion |
23/08/2012 |
|
Builder |
Shandong Baibuting Shipbuilding Co., Ltd. Rong Cheng China |
|
Yard number |
BBT002 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable bulkheads, 6 working positions + 2 storage positions |
|
Number of decks |
1 |
|
Main engine |
1x Wärtsilä 6L26B2 - 4 stroke single acting 6 cylinder 260 x 320 mm combustion engine Mcr 2.040 kW / 2.774 bhp at 1.000 rpm Manufacturer: Wärtsilä Italia S.p.A. |
|
Propellers |
1x Controllable pitch propeller - aft at 179,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired 1x Thermal oil heater, exhaust heated |
|
Shaft generator |
1x 344 kW - 440 Volt 50 Hz |
|
Generators |
2x MAN D2866 LXE - 4 stroke 6 cylinder 128 x 155 mm diesel engines each Mcr 280 kW connected with generator each 250 kW 440 Volt 50 Hz |
|
Emergency generator |
1x MAN D2866 LXE 20 diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 250 kW / 340 bhp, forward |
|
Number of holds |
1 54,60 x 12,60 x 8,40 m |
|
Cargo hold capacity |
Bale & grain: 5.509 m³ / 194.538 ft³ |
|
Number of hatches |
1 54,90 x 13,00 m |
|
Hatch type |
Pontoon type hatch with 11 pontoons, pontoons can be opened independently |
|
Max permitted loads |
Deck/hatch cover: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.976 m³ MGO: 69,70 m³ IFO: 141,9 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 38 mm |
|
Crew size |
8 |
|
ISM & commercial manager |
Wilson Ship Management AS Bradbenken 1 5003 Bergen Norway |
|
Registered owner |
Wilson Shipowning AS Care of Wilson EuroCarriers AS Bradbenken 1 5003 Bergen Norway |
|
Latest data adjustment |
20 August 2022 |
