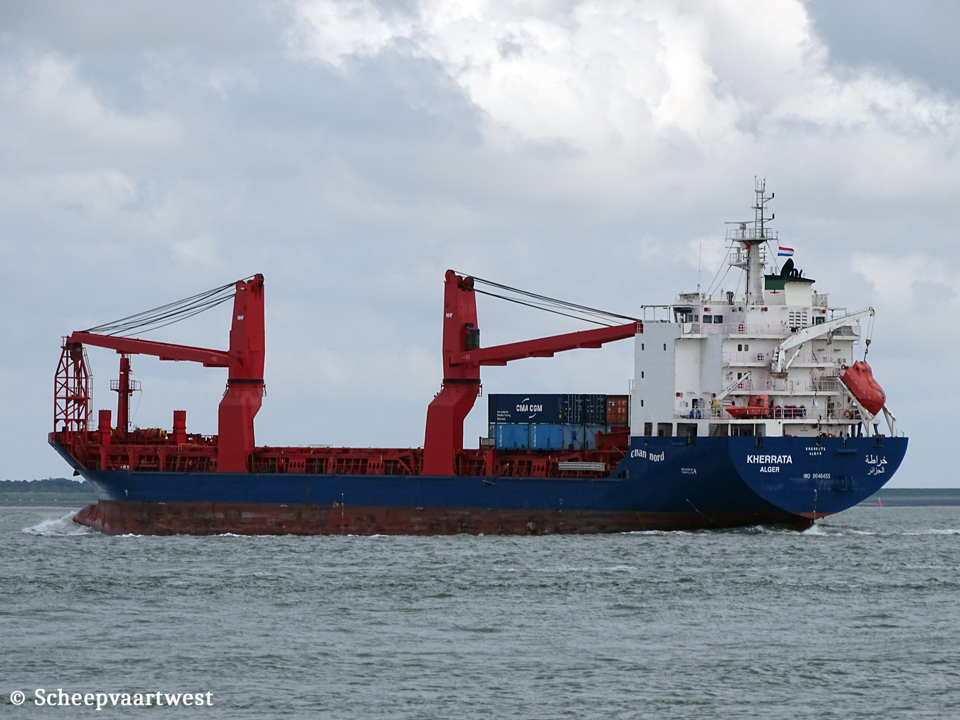

Westerschelde 07 July 2018 |
 |
 |
 |
||

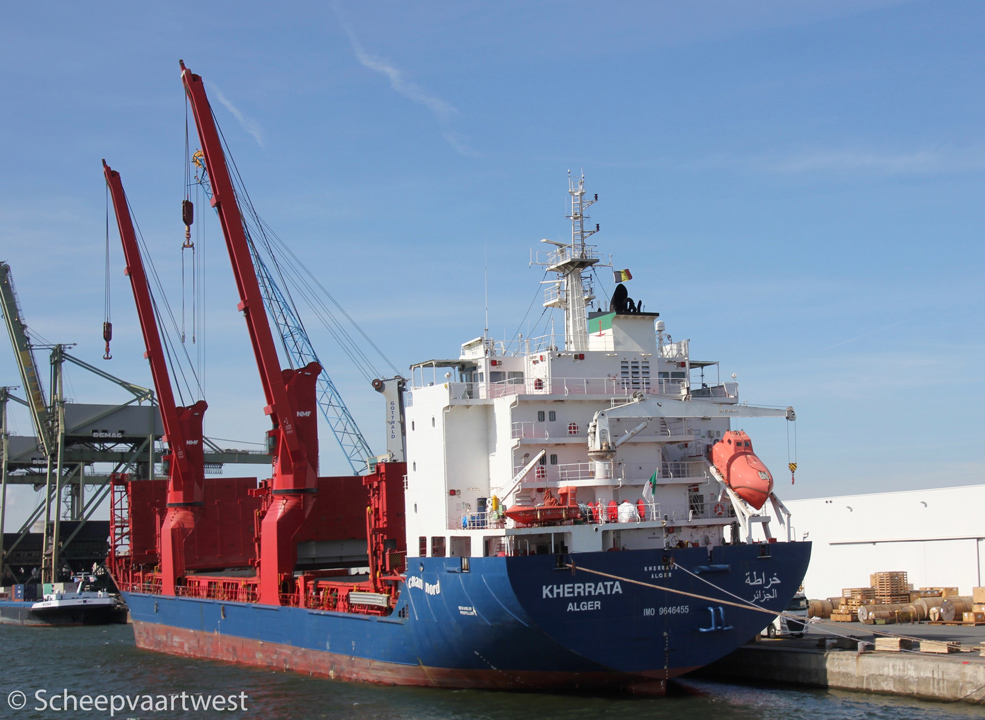

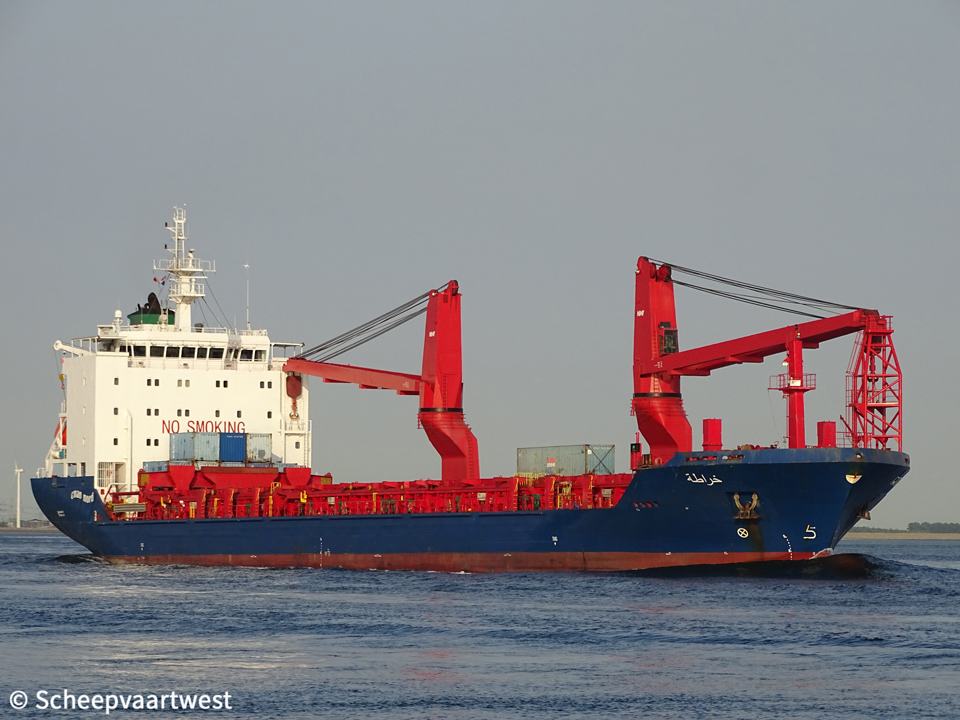

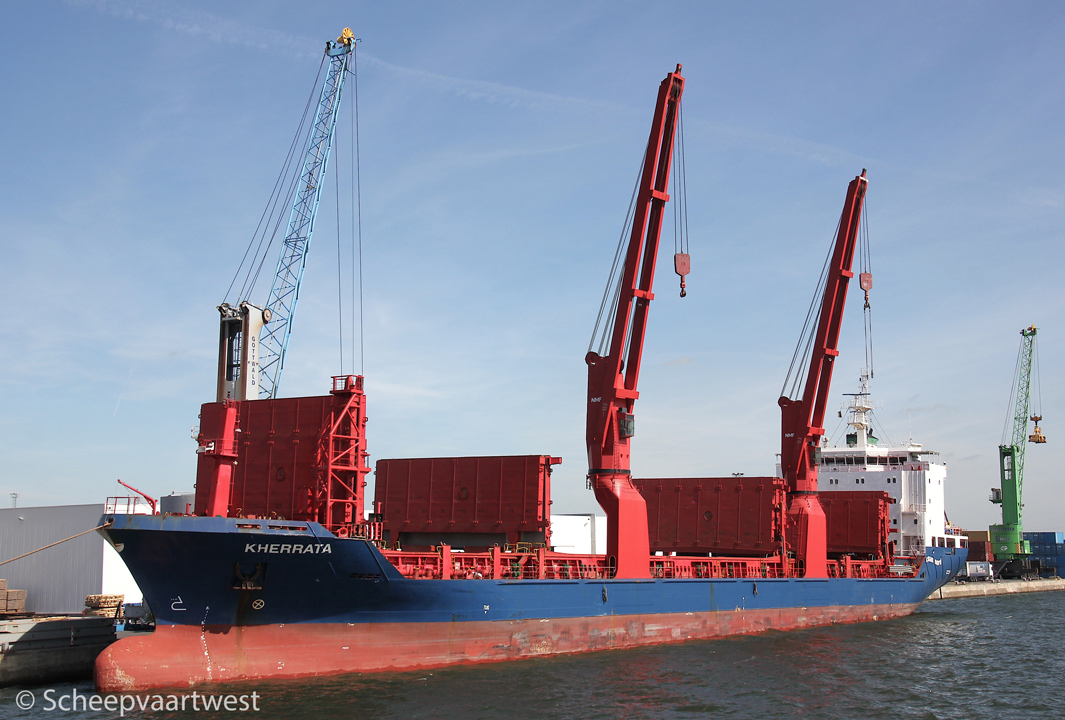

| Antwerpen 11/09/18 | Antwerpen 11/09/18 | Westerschelde 06/09/18 | ||
|
Name |
KHERRATA |
|
Previous names |
2012 - 2012 Nordana 08/2012 - 12/2014 Aggersborg |
|
Type |
General cargo ship - heavycargo - Equipped for carriage of containers |
|
IMO-number |
9646455 |
|
Call sign |
7THD |
|
Flag |
Algeria |
|
Port of registry |
Alger |
|
Previous flags |
2012 - 2014 Republic of Panama, Panama City - Call sign: 3EVI8 |
|
GT |
9.627 t |
|
DWT |
Summer: 12.645 t |
|
Number of 20ft containers |
In holds: 334 On deck: 331 Total: 665 |
|
Number of 40ft containers |
In holds: 158 + 22 TEU On deck: 136 + 24 TEU Total: 294 + 46 TEU |
|
Container capacity 14t |
518 |
|
Reefer capacity |
50 |
|
Length |
138,48 m overall 130,00 m between perpendiculars |
|
Breadth |
21,00 m |
|
Draught |
8,00 m |
|
Keel to mast end |
43,04 m |
|
Freeboard |
3.018 mm |
|
Depth |
11,00 m |
|
Speed |
15,0 knots |
|
Built |
2012 |
|
Keel laid |
03/11/2008 |
|
Launch date |
21/04/2012 |
|
Delivery date |
29/06/2012 |
|
Builder |
Taizhou Sanfu Ship Engineering Co., Ltd. No.1 Machuan West Road Yong'an Town, Gaogang Distric Taizhou, 225327 Jiangsu People's Republic of China |
|
Yard number |
SF100102 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.341 hp at 500 rpm Built: 07/2011 Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 132 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 112,0 m² 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 39,0 m² Built: 2011 Manufacturer: Alfa Laval Aalborg A/S |
|
Electric installations |
3x Plant 400/ 400 V - 626 kVA 1x Plant 400 V - 875 kVA 1x Plant 400 V - 124 kVA 2x Plants, each 24 V - 60 Ah 1x Plant 24 V - 85 Ah 1x Plant 24 V - 102 Ah 3x Plants each 24 V - 20 Ah 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 875 kVA - 700 kW |
|
Generators |
3x Main diesel generatorsets each 626 kVA - 501 kW - 723 hp |
|
Emergency generator |
1x Diesel generatorset 124 kVA |
|
Batteries |
3x Batteries for diesel start each 120 Ah 1x Battery for automation 102 Ah 1x Battery for automation 85 Ah 2x Batteries for diesel start each 60 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 33 bar 1x Receiver 60 litres - 33 bar 1x Receiver 1.000 litres - 11 bar 1x Receiver 250 litres - 11 bar |
|
Bow thruster |
1x Transverse thruster 500 kW |
|
Number of holds |
3 Hold No.1: 18,75 x 15,02/10,02 x 10,53 m Hold No.2: 42,00 x 17,50 x 11,18 m Hold No.3: 25,50 x 17,48 x 10,77 m |
|
Cargo hold capacity |
Hold 1: 2.663,80 m³ Hold 2: 7.957,50 m³ Hold 3: 4.822,70 m³ Total: Bale: 14.856 m³ Grain: 15.952 m³ |
|
Number of hatches |
3 |
|
Hatch type |
Steel folding hatch covers |
|
Tank capacities |
Heavy fuel oil: 948 m³ Gas oil: 150 m³ Lub oil: 54 m³ Fresh water: 141 m³ Ballast water: 5.000 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Length: 550,00 m |
|
Cargo gear |
2x NMF Cranes (portside) - SWL each 150,00 t |
|
Crew size |
18 |
|
Commercial manager |
CNAN Group Spa 2, quai No. 9 & Nouvelle Gare Maritime Alger Algeria |
|
ISM manager |
Cnan Nord Spa Villa 219, Parc Ben Omar, Kouba Alger Algeria |
|
Registered owner |
CNAN Nord Spa. Villa 219, Parc Ben Omar, Kouba Alger Algeria |
|
Latest data adjustment |
24 August 2023 |
