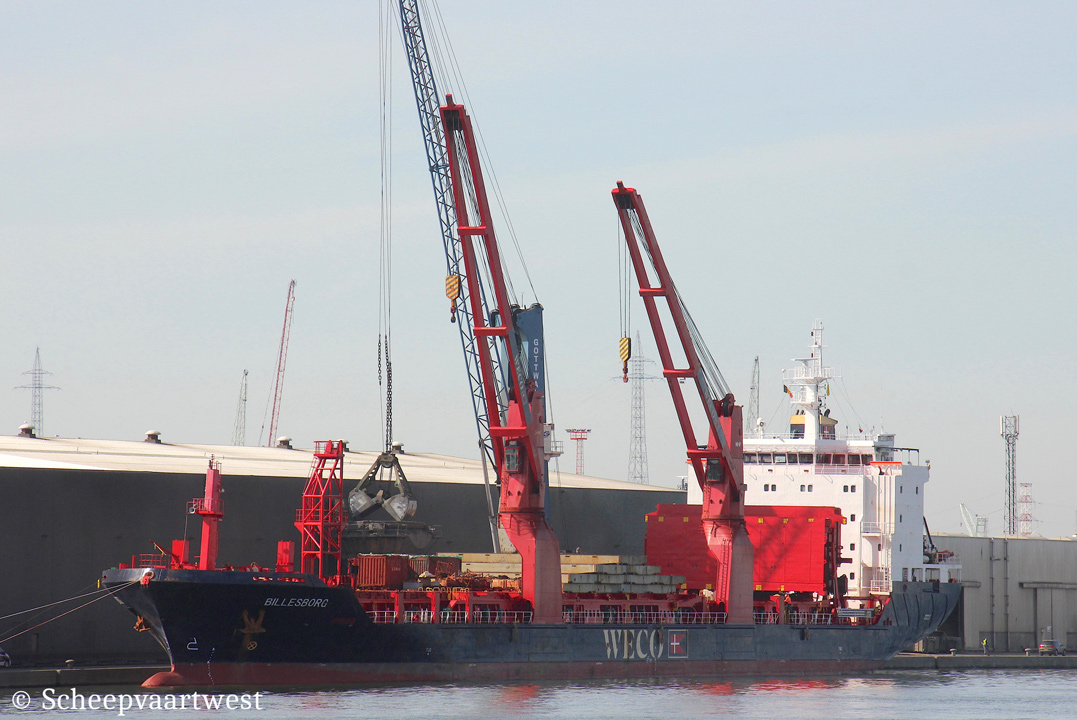

Billeborg - IMO 9488047

Antwerpen 17 September 2018

Name

BILLESBORG

Previous names

2011 - Billesborg

09/20011 - 09/2012 Clipper Angela

Type

Multi-purpose cargo - Handysize - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9488047

Call sign

HP2334

Flag

Republic of Panama

Port of registry

Panama City

Previous flags

2011 - 2015 Republic of Singapore

GT

9.627 t

DWT

Summer: 12.580 t

NT

4.260 t

Number of 20ft containers

In holds: 334
On deck: 331
Total: 665

Number of 40ft containers

In holds: 158 + 22 TEU
On deck: 136 + 24 TEU
Total: 294 + 46 TEU

Container capacity 14t

528

Reefer capacity

50

Length

138,50 m overall

130,00 m between perpendiculars

Breadth

21,00 m

Draught

Summer: 8,0 knots

Depth

7,50 m

Speed

Max: 15,0 knots

Built

2011

Keel laid

27/12/2008

Launch date

06/01/2011

Date of completion

09/05/2011

Builder

Taizhou Sanfu Ship Engineering Co.
Taizhou Jiangsu
China

Hull material

shipbuilding steel (standard)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

5

Continuous decks

1

Main engine

Caterpillar-Mak 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW at 500 rpm

Propellers

1

Boilers

1x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 39,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 112,0 m²

Built: 2011

Manufacturer: Alfa Laval Aalborg A/S

Electric installations

3x Plant 400/ 400 V - 626 kVA
1x Plant 400 V - 875 kVA
1x Plant 400 V - 124 kVA
2x Plants each 24 V - 60 Ah
1x Plant 24 V - 85 Ah
1x Plant 24 V - 102 Ah
3x Plants, each 24 V - 20 Ah
1x Plant 24 V - 200 Ah

Shaft generator

1x Shaft generator 875 kVA

Generators

3x Main generators each 626 kVA

Emergency generator

1x Emergency generator 124 kVA

Batteries

1x Battery for other purpose 200 Ah
3x Batteries for diesel start each 120 Ah
1x Battery for automation 102 Ah
1x Battery for automation 85 Ah
2x Batteries for diesel start each 60 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 33,0 bar
1x Receiver 60 litres - 33,0 bar
1x Receiver 1.000 litres - 11,0 bar
1x Receiver 250 litres - 11,0 bar

Bow thruster

1x Transverse thruster - 500 kW

Number of holds

3

Hold 1: 18,75 x 15,0 2/10,02 x 10,53 m
Hold 2: 42,00 x 17,50 x 11,18 m
Hold 3: 25,50 x 17,48 x 10,77 m

Cargo hold capacity

Hold 1: 2.663,80 m³
Hold 2: 7.957,50 m³
Hold 3: 4.822,70 m³

Bale: 14.856 m³
Grain: 15.952 m³

Number of hatches

3

Hatch type

Steel folding hatch covers

Floor space

Under deck: 2.810 m² / 30.247 ft²

On deck: 1.480 m² / 15.931 ft²

Tank capacities

Heavy fuel oil 948 m³
Gas oil 150 m³
Lub oil: 54 m³
Fresh water 141 m³
Ballast Water 5.000 m³

Anchor equipment

3 Anchors weight each 4.590 kg
Length 550,00 m

Cargo gear

2x NMF cranes (portside) SWL 150;0 t each

Crew size

18

Manager

Jutha Maritime Public Co., Ltd.

Operator

Weco

Registered owner

Borgship III ApS

Latest data adjustment

26 October 2018
