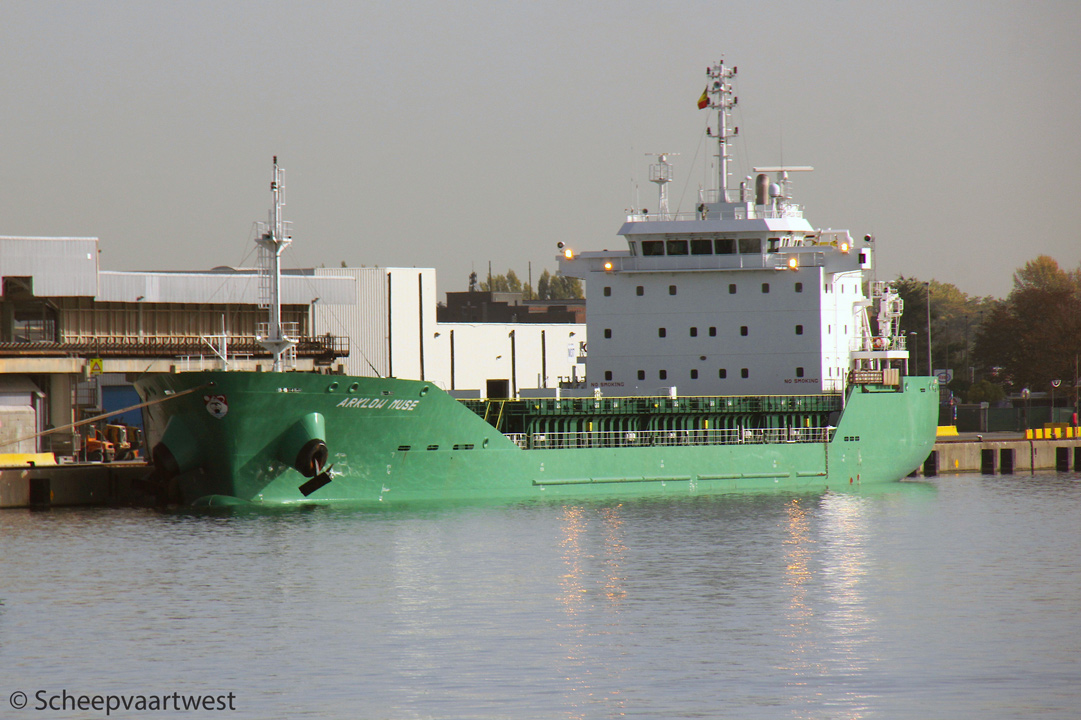

Antwerpen 16 October 2018 |
 |

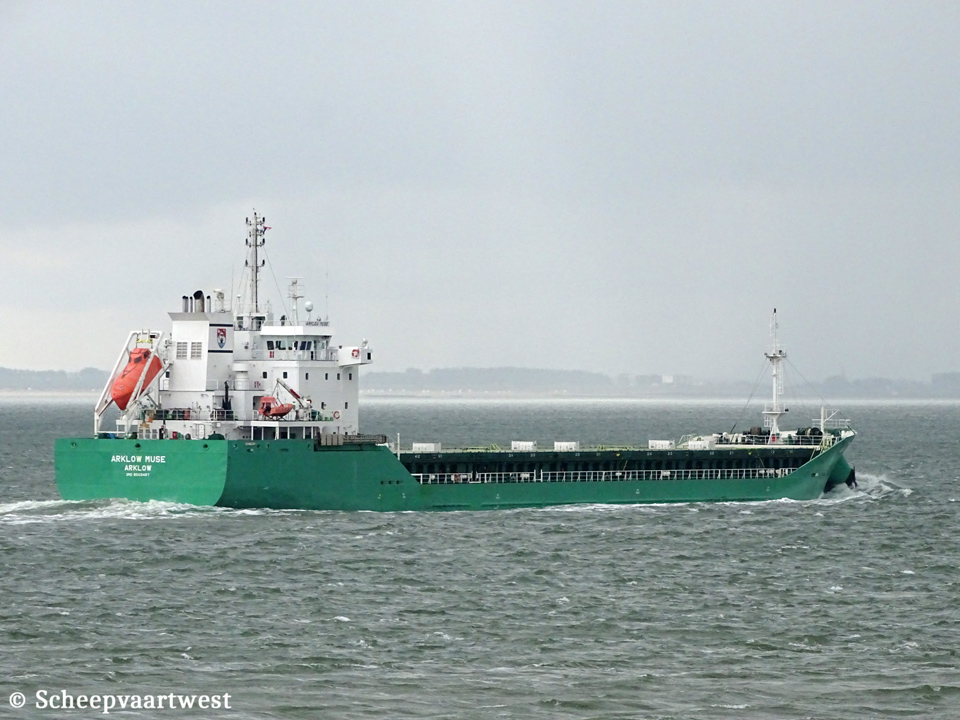

| Westerschelde 08/05/19 |
|
Name |
ARKLOW MUSE |
|
Type |
General cargo ship - strengthened for heavy cargo |
|
IMO-number |
9509487 |
|
Call sign |
EINV3 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
9.758 t |
|
DWT |
Summer: 14.990 t |
|
NT |
5.240 t |
|
Length |
136,47 m overall 128,50 m between perpendiculars |
|
Breadth |
21,30 m extreme 21,00 m moulded |
|
Draught |
Max: 8,48 m Ballast: 6,50 m |
|
Air draft |
Min: 29,10 m |
|
Freeboard |
2.539 mm |
|
Depth |
11,40 m moulded |
|
Speed |
Max: 14,5 knots |
|
Built |
2013 |
|
Date of completion |
21/08/2013 |
|
Builder |
Daesun Shipbuilding & Engineering Co. Ltd. Pusan South Korea |
|
Yard number |
SB540 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.337 hp at 500 rpm Built: 09/07/2010 Builder: Caterpillar Motoren Rostock GmbH, Rostock - Germany |
|
Propellers |
1x Rolls Royce screw propeller controllable pitch |
|
Boilers |
1x CHO 29,00 m² - 10,0 bar 1x CHR 115,00 m² - 10,0 bar |
|
Shaft generator |
1x 1.190 kVA - 952 kW |
|
Generators |
2x Yanmar main diesel generatorset each 500 kVA - 400 kW - 595 hp |
|
Emergency generator |
1x STX diesel generatorset 125 kVA - 100 kW - 136 hp |
|
Bow thruster |
1x 750 kW |
|
Number of holds |
4 |
|
Cargo hold capacity |
Grain & bale: Hold 1: 3.132 m³ / 110.600 ft³ Hold 2: 5.762 m³ / 203.480 ft³ Hold 3: 5.628 m³ / 198.742 ft³ Hold 4: 3.587 m³ / 126.668 ft³ Total 18.110 m³ / 639.490 ft³ |
|
Hold ventilation |
Mechanical: 6 changes per hour in empty holds |
|
Hatch type |
Weather tight folding type |
|
Max permitted loads |
On hatches: 1,8 t/m² Tanktop: 20 t/m² |
|
Tank capacities |
Ballast: 5.480 t Fuel: 626 m³ Diesel: 143 m³ Fresh water: 136 m³ |
|
Crew size |
16 |
|
Manager |
Arklow Shipping Ltd. North Quay Arklow Co. Wicklow Ireland |
|
Registered owner |
Arklow Muse Ltd. |
|
Latest data adjustment |
14 April 2021 |
