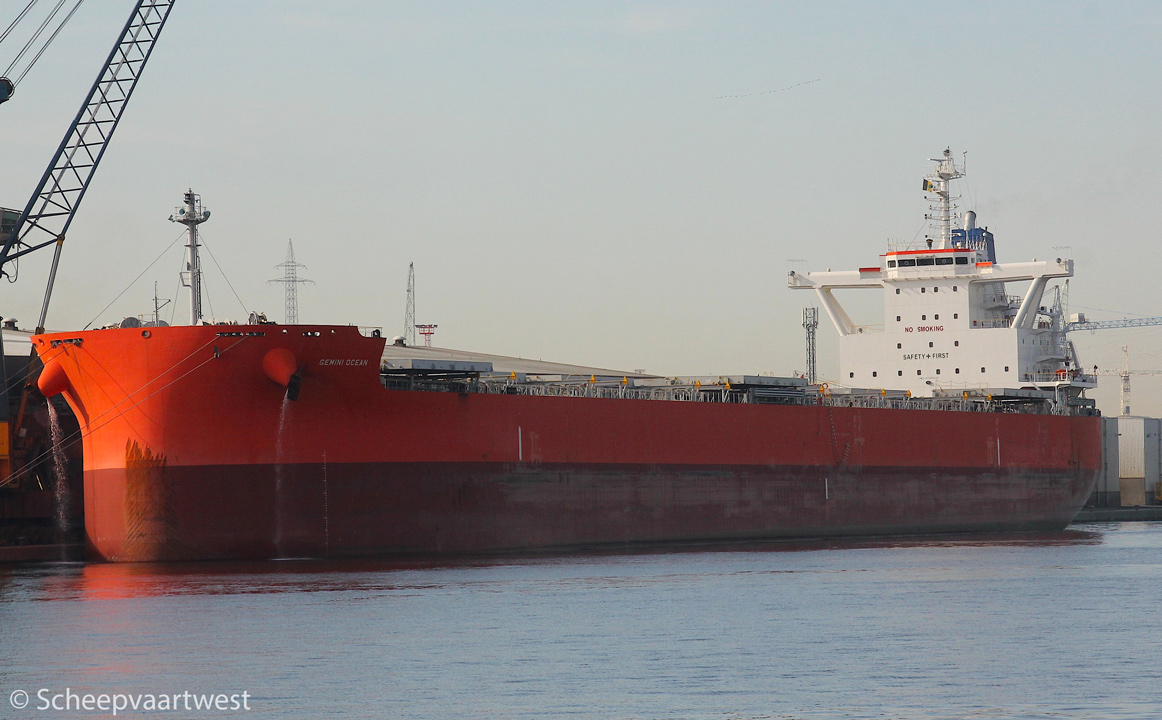

Gemini Ocean 01

Antwerpen 16 October 2018



Name

GEMINI OCEAN

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9798832

Call sign

H3DT

Flag

Republic of Panama

Port of registry

Panama City

Previous flags

2017 - 2018 Republic of Singapore - Call sign: 9V2606

GT

43.291 t registered

DWT

80.982 t

NT

27.379 t registered

Length

229,00 m overall

Breadth

32,26 m moulded

Draught

Max: 14,48 m

Moulded L x B x D

226,15 x 32,26 x 20,00 m

Registered L x B x D

226,17 x 32,26 x 20,00 m

Freeboard

Summer: 5.574 mm

Depth

20,00 m moulded

Speed

Max: 15,8 knots

Built

2017

Keel laid

21/12/2005

Launch date

24/10/2016

Date of completion

10/02/2017

Builder

Japan Marine United Corporation, Maizuru Shipyard
Japan

Yard number

5114

Hull material

Steel

Hull type

Single hull

Main engine

1x 2 stroke single acting 6cylinder 600 x 2.400 mm combustion engine 8.880 kW at 86,5 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 550 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 1,76 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Generators - 1.850 kVA

Cargo hold capacity

Grain: 96.201 m³

Tank capacities

Fuel oil: 2.198 m³

Fresh water: 458 m³

Manager

Laurel Ship Management Pte. Ltd.
Temasek Avenue, #23-01, Millenia Tower
Singapore 039192
Republic of Singapore

Owner

Diamond Star Shipping Pte Ltd.

Registered owner

Super Camellia S.A.

Latest data adjustment

30 October 2018
