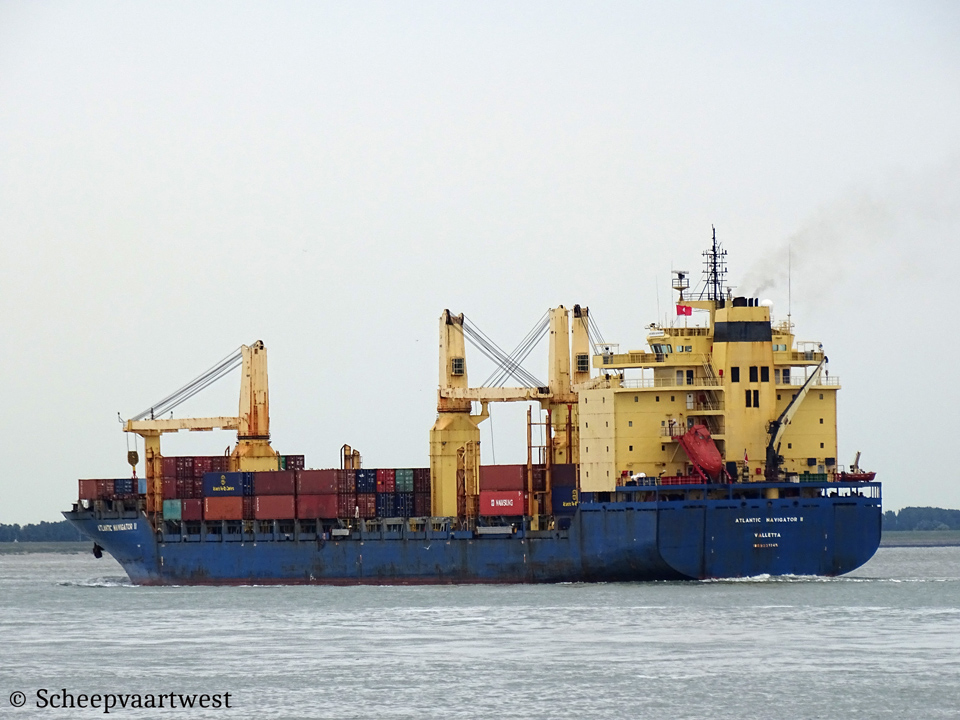

Atlantic Navigator II 01

Westerschelde 26 July 2016



Name

ATLANTIC NAVIGATOR II

Previous names

2003 - 12/2011 Cape Darnley

12/2011 - 01/2013 Anhui

01/2013 - 2015 San Pedro

Type

Multi-Purpose dry cargo ship, Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9231145

Call sign

9HA4023

Flag

Malta

Port of registry

Valletta

Previous flags

Liberia, Monrovia - Call sign: A8VI9

GT

23.132 t

Suez: 23.514 t

DWT

Summer: 30.346 t

NT

9.375 t

Panama: 20.274 t

Suez: 20.171 t

Displacement

37.511 t

Light ship

11.914,56 t

Number of 20ft containers

1.749 + 40 FEU

Total: 1.829

Container capacity 14t

1.350

Reefer plug

150

Length

192,89 m overall

183,56 m between perpendiculars

Breadth

27,80 m

Draught

Max: 11,20 m

Depth

15,50 m

Speed

Max: 19,4 knots

Built

2003

Keel laid

28/03/2002

Date of completion

16/04/2003

Builder

Dalian Shipyard Co., Ltd.
Dalian
China

Yard number

MC300-4

Hull material

Steel

Number of decks

2

Main engine

1x MAN B&W 7S60MC-C - 7 cylinder combustion engine

Propellers

1x Fixed pitched solid propeller - 4 blades

Generators

1x ZJMD MAN B&W 7L23/30H main diesel generatorset 1.135 kW

2x ZJMD MAN-B&W 6L23/30H main diesel generatorsets each 975 kW

Emergency generator

1x MAN D2866 TE diesel generatorset

Bow thruster

1x 900 kW

Number of holds

5x Box shaped holds

Hold No.1 (fore): 12,80 x 15,40 x 15,77 m

Hold No.1 (aft): 12,80 x 20,40 x 15,77 m

Hold No.2 - 4 (p): 25,60 x 10,30 x 15,77 m

Hold No.2 - 4 (s): 25,60 x 10,30 x 15,77 m

Hold No.5 (p): 12,80 x 10,30 x 15,77 m

Hold No.5 (s): 12,80 x10,30 x 15,77 m

Cargo hold capacity

Grain/Bale:

Hold 1: 1x 5.599,75 m³ (Container hold)

Hold 2: 2x 4.100,66 m³

Hold 3: 2x 4.143,47 m³

Hold 4: 2x 4.143,47 m³

Hold 5: 2x 2.112,26 m³ (Container hold)

Total grain/bale capacity holds 2,3,4 stb/port 24.775 m³

Number of hatches

9

Hatch cover type

MacGregor folding type

Max permitted loads

Tanktop:

Hold 2,3,4: 22,0 t/m²

Hold 1,5: 13,0 t/m²

Hatch cover: 2,5 t/m²

Deck: 4,0 t/m²

Tank capacities

HFO: 2.908 m³

MDO: 139 m³

Lub oil: 129 m³

Fresh water: 287 m³

Ballast water: 12.530 m³

Cargo gear

2x Cranes - SWL 100 t each

1x Crane - SWL 50 t

Manager

Atlantic Ship Management

Sabaneev most, 5/7
65082 Odessa
Ukraine

Registered owner

Atlantic Energy II Navigation
12/13 Strait Street

Valletta
Malta

Latest data adjustment

28 October 2018
