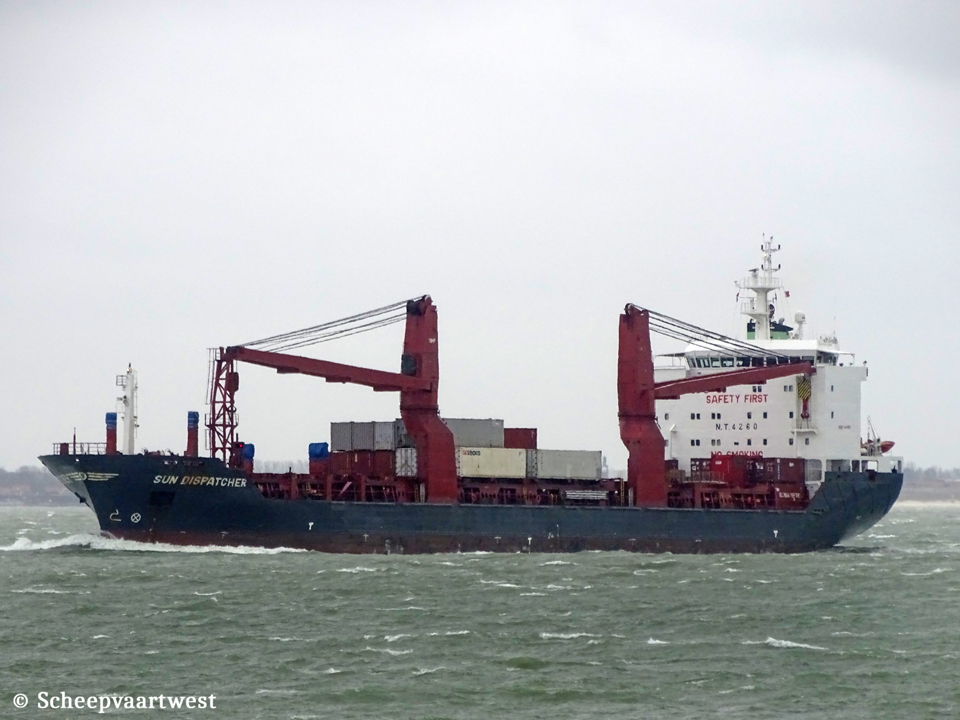

Westerschelde 26 July 2016 |
 |
 |
 |
||

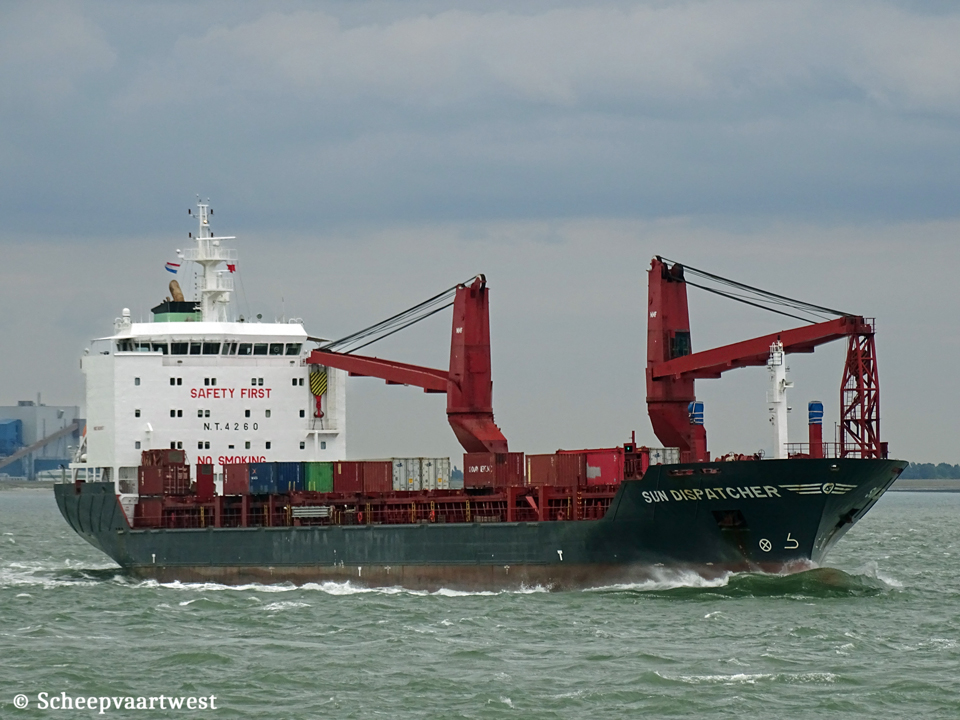

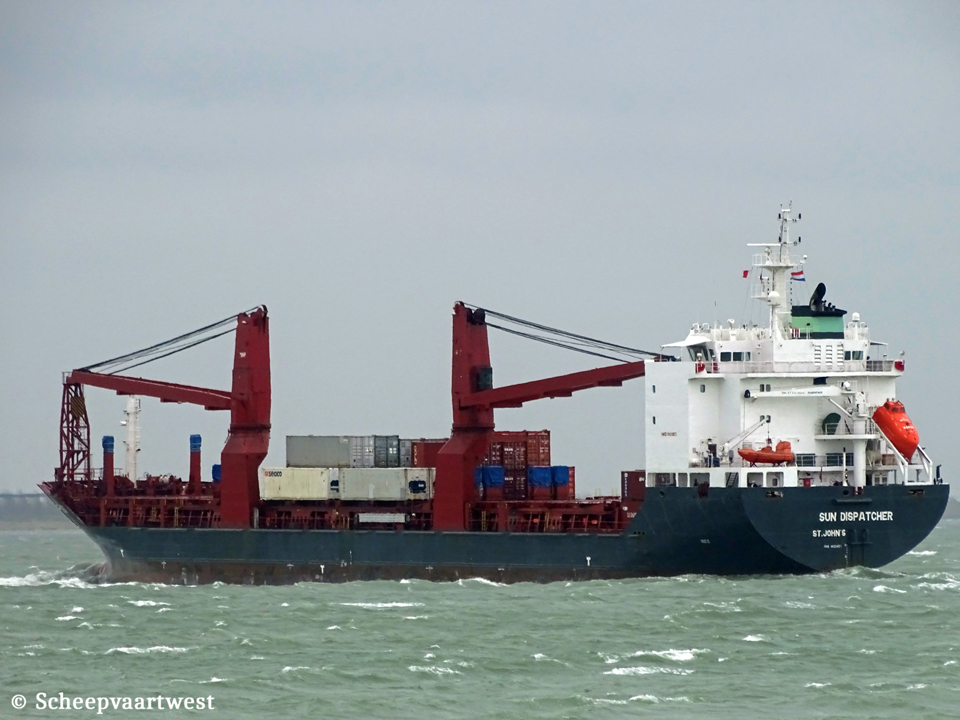

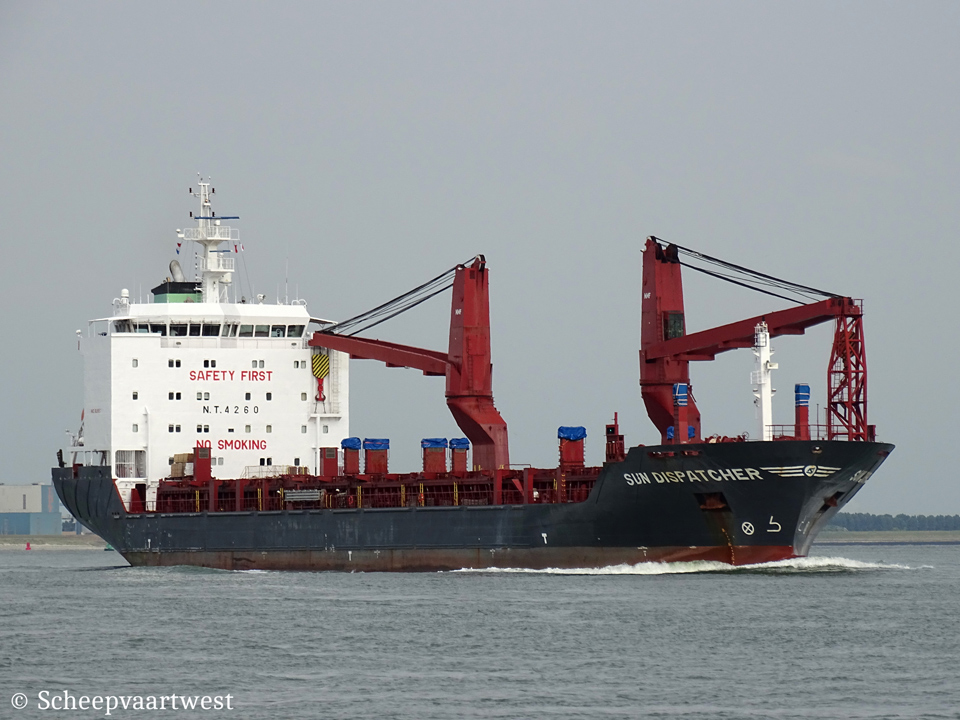

| Westerschelde 16/09/16 | Westerschelde 22/02/17 | Westerschelde 22/02/17 | ||
|
Name |
SUN DISPATCHER |
|
Previous names |
2012 - 2016 Sloman Dispatcher |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9620657 |
|
Call sign |
V2FO3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
2012 - 2012 Iran |
|
GT |
9.611 |
|
DWT |
Summer: 12.634,2 t |
|
NT |
4.260 |
|
Number of 20ft containers |
In hold: 331 On deck: 326 Total: 657 |
|
Container capacity 14t |
516 |
|
Reefer sockets |
25 sockets – 25 reefers Max. 50 reefers via splitters |
|
Length |
138,01 m overall 130,71 m between perpendiculars |
|
Breadth |
21,36 m extreme 21,00 m moulded |
|
Draught |
Max: 8,0 m |
|
Depth |
11,00 m moulded |
|
Speed |
Max: 15,0 knots |
|
Built |
2012 |
|
Keel laid |
20/11/2008 |
|
Launch date |
15/10/2011 |
|
Date of completion |
20/04/2012 |
|
Builder |
Jiangzhou Union Shipbuilding Co., Ltd. Rui Chang China |
|
Yard number |
JZ1041 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.340 hp at 500 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
700 kW |
|
Generators |
3x D2840 LE 301 main diesel generatorsets |
|
Emergency generator |
1x D2866 E diesel generatorset |
|
Number of holds |
3 |
|
Cargo hold capacity |
Grain: 15.952 m³ Bale: 14.856 m³ |
|
Number of hatches |
3 |
|
Hatch cover type |
Hydraulic folding |
|
Tween deck pontoons |
14x Removable pontoons Adjustable in three position in hold #2 (can be used as bulkheads) |
|
Hatch cover surface |
1.462 m² |
|
Tween deck surface |
1.424 m² |
|
Lower hold surface |
2.420 m² |
|
Max permitted loads |
Tanktop: 16,0 t/m² T/D #1 and # 2 upper: 2,5 t/m² T/D #2 mid/low and #3: 4,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Heavy fuel oil: 860 m Martine gas oil: 125 m³ Lub oil: 56 m³ Fresh water: 120 m³ Ballast: 5.001 m³ |
|
Anchor equipment |
Length: 545,00 m Diameter: 52 mm |
|
Cargo gear |
2x NMT deck cranes - SWL 150,0 t each Combinable up to 300 t Load/Outreach: 150 t / 4,5-16,0 m 120 t / 4,5-19,0 m 95 t / 4,0-24,0 m 70 t / 3,5-33,0 m |
|
Crew size |
20 |
|
Manager |
Sloman Neptun Schiffahrts-Aktiengesellschaft Langenstraße 44 28195 Bremen Germany |
|
Registered owner |
Sloman Neptun Schiffahrts-Aktiengesellschaft |
|
Renamed |
2017 Sloman Dispatcher Antigua and Barbuda, St. John's - Calls sing: V2FO3 Owner: Sloman Neptun Schiffahrts-Aktiengesellschaft, Bremen - Germany Manager: Sloman Neptun Schiffahrts-Aktiengesellschaft - Germany |
|
Latest data adjustment |
25 December 2024 |
