Westerschelde 31 May 2017 |
|
Name |

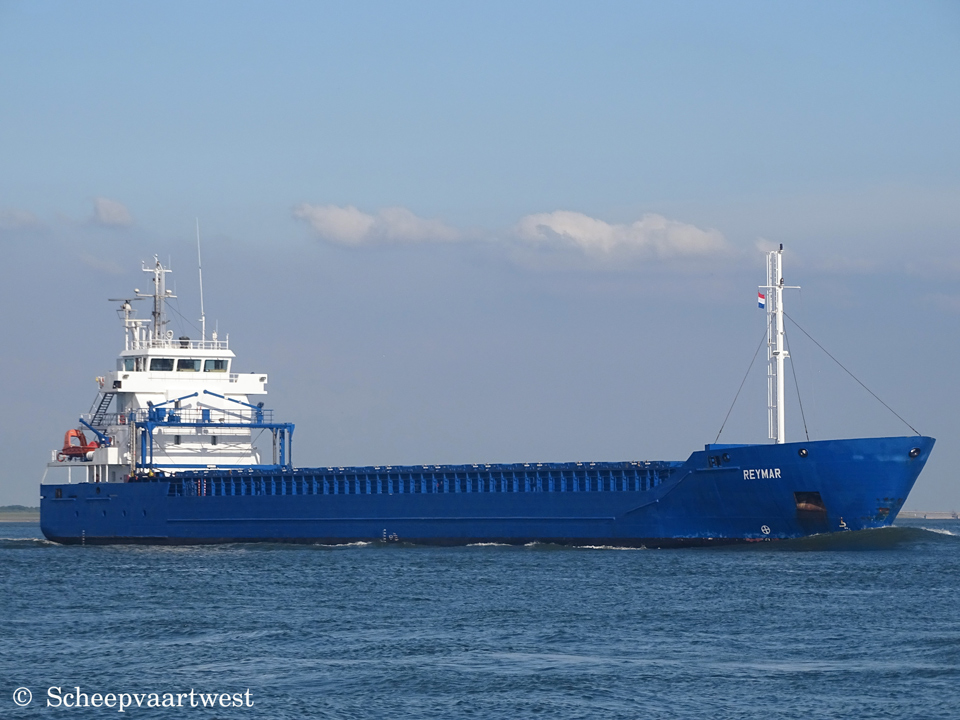

REYMAR |
|
Previous names |
2011 Launch as: Groma Domsum 2011 - 2016 Emslake |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Gearless box single decker |
|
IMO-number |
9552032 |
|
Call sign |
5BNU4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2011 - 2016 Antigua & Barbuda, St. John’s - Call sign: V2FL4 |
|
GT |
3.500 t |
|
DWT |
Summer: 5.235,3 t |
|
DWCC |
Summer: 4.900 t Winter: 4.800 t |
|
NT |
1.382 t |
|
Number of 20ft containers |
In hold; 108 On deck: 80 Total: 188 |
|
Length |
99,37 m 92,49 m between perpendiculars |
|
Breadth |
13,35 m |
|
Draught |
Max: 6,15 m |
|
Air draft |
24,50 m |
|
Depth |
9,11 m moulded |
|
Speed |
Max: 12,0 knots Service: 10,0 knots |
|
Built |
2011 |
|
Keel laid |
18/12/2008 |
|
Launch date |
22/01/2011 |
|
Date of completion |
31/03/2011 |
|
Builder |
Western Marine Shipyard Ltd. |
|
Yard number |
928/03 |
|
Hull material |
Steel |
|
Movable bulkheads |
2 pcs./4 pontoons |
|
Main engine |
1x MaK 6M25C - 6 cylinder combustion engine 2.000 kW / 2.719 bhp |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x 1x Auxiliary boiler, oil/gas fired (Central heating boiler) type Compact A 200 |
|
Generators |
2x Sisu 74.475 CTAG-4V main diesel generatorsets each 172 kW |
|
Emergency generator |
1x SISU 49.548DTG diesel generatorset |
|
Bow thruster |
1x 280 kW |
|
Number of holds |
1 61,80 x 11,20 x 9,60 m |
|
Cargo hold capacity |
6.644,7 m³. / 234.655 ft³ |
|
Number of hatches |
1 61,80 x 11,20 m |
|
Hatch type |
Pontoon hatch covers |
|
Max permitted loads |
Hatch covers: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.911,8 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
Manager |
GoTa Ship Management AB |
|
Registered owner |
AtoB@C Shipping AB |
|
Latest data adjustment |
26 December 2018 |
