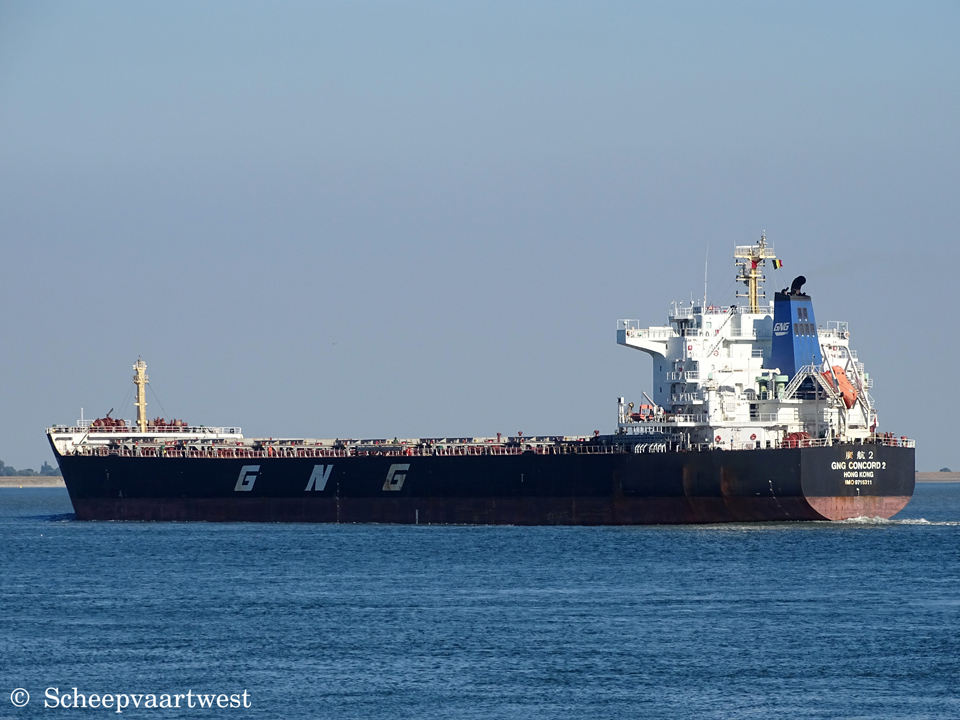

GNG Concord 2 - IMO 9715311

Westerschelde 03 August 2018

Name

GNG CONCORD 2

Type

Bulk carrier

IMO-number

9715311

Call sign

VRNG3

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

41.073 t registered

Suez: 42.618,35 t

DWT

75.700 t

NT

25.634 t registered Panama: 33.942 t

Suez: 38.784,31 t

Length

225,00 m overall

217,00 m between perpendiculars

Breadth

32,26 m moulded

Draught

Max: 14,20 m

Freeboard

5.419 mm

Depth

19,60 m moulded

Speed

Service: 14,5 knots

Max: 15,5 knots

Built

2014

Keel laid

28/11/2011

Launch date

25/05/2014

Delivery date

15/12/2014

Builder

Shanghai Shipyard Co., Ltd.
Shanghai
China

Yard number

S1204

Hull material

Ordinary strength steel

High strength steel

Bulkheads

Water tight: 10

Gas tight: 1

Continuous decks

1

Main engine

1x HHM-MAN B&W 5S60ME-C8.2 - 2 stroke single acting5 cylinder 600 x 2.400 mm combustion engine 8.833 kW / 12.009 hp at 95,0 rpm

Manufacturer: Hudong Heavy Machinery Co., Ltd. - China

Propellers

1x Fixed pitch propeller aft at 95,0 rpm

Manufacturer: Dalian Marine Propeller Co Ltd.

Boilers

1x Fired exhaust gas (composite) boiler - 9,0 bar

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

3x Yanmar 6EY18ALW - 4 stroke 6 cylinder 180 x 280 m diesel engines each 750 kW coupled with 3 generators each 680 kW

Manufacturer: HHI Electro Electric System

Number of holds

6

Cargo hold capacity

Grain: 90.690 m³

Bale: 90.064 m³

Number of tanks

Lubricating oil: 13

Fuel oil: 11

Ballast: 11

Fresh water: 7

Diesel oil: 5

Sludge: 4

Chain: 2

Waste water: 2

Potable water: 1

Chemical: 1

Tank capacities

Diesel oil: 208,6 m³

Freshwater: 359,4 m³

Fuel oil: 2.358 m³

Lube oil: 119,03 m³

Tank ballast: 21.511,2 m³

Lifting equipment

1x Bunker hose crane port - SWL 4,0 t

1x Bunker hose crane stbd - SWL 4,0 t

Manufacturer: Zhenjiang Marine Auxiliary Machinery Works

1x Engine room overhead crane SWL - SWL 4,0 t

1x Provision crane - SWL 2,0 t

Manufacture: Wuxi Huahai Marine Equipment Factory

Cargo gear

Gearless

Crew size

30

Manager

Guangdong Pearl River Tanker
276 Binjiang Middle Rd,
JiangNan DaDao, Haizhu Qu, Guangzhou Shi
Guangdong Sheng
China, 510000

Operator

GNG Ocean Shipping Co. Ltd.
21F/L, Guangdong Navigition Building

No.48 Ba Qi Er Road, Yuexiu District
Guangzhou
China

Registered owner

Wo Tei Shipping Company Limited
Room 1401, 14/F, Chu Kong Shipping Tower

143 Connaught Road Central

Hong Kong

Latest data adjustment

04 January 2019
